SELF-DIAGNOSTIC MODE
2 - 34
Procedure 7
* When the automatic adjustment ends abnormally, an error message is
displayed.
* Return to standby screen by pressing the [CANCEL] or [CLEAR] button.
Procedure 10
Procedure 14
Note:
The fuser roller temperature control at the adjustment mode is different from that at the normal
state.
Therefore, the problem of fusing efficiency may be occurred in the test copy at the adjustment
mode.
In that case, turn ON the power normally, leave the equipment for approx. 3 minutes after it has
become ready state and then start up the adjustment mode again.

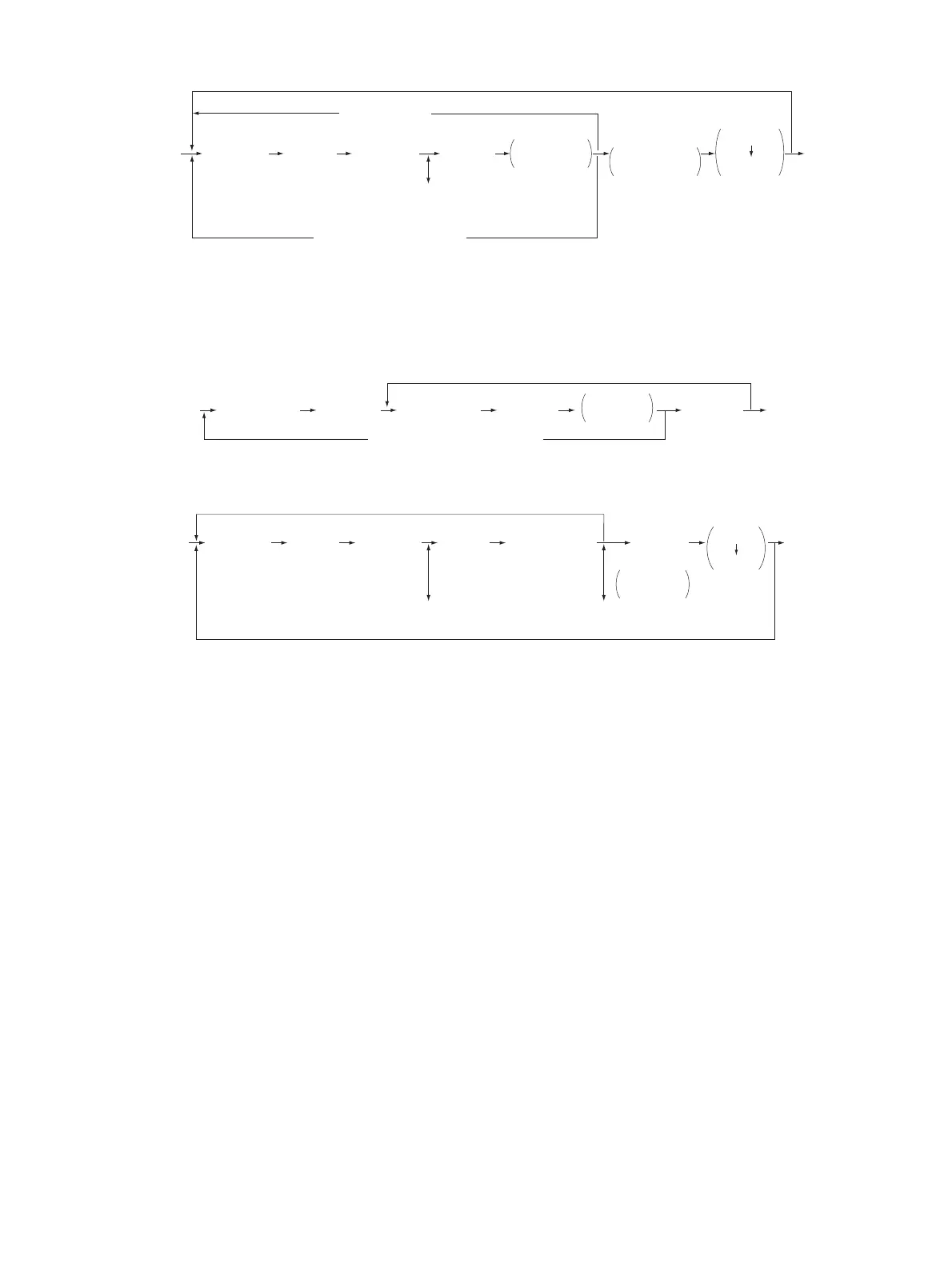

[0][5]
[POWER]
[POWER]
OFF/ON
(Exit)
[Digital key]
(Code)
[Digital key]
(Sub code)
[CLEAR]
(Corrects value)
[START][START]
*[CANCEL] or [CLEAR]
[CANCEL]
[FAX]
[START]
(Test copy)
[ENTER]
Stores value
in RAM
Automatic
adjustment
[0][5]
[POWER]
[POWER]
OFF/ON
(Exit)
[Digital key]
(Code)
[Digital key]
(Sub code)
[START] [START][START]
[ENTER] or [INTERRUPT]
(Value unchangeable)
Value
displayed
[0][5]
[POWER]
[POWER]
OFF/ON
(Exit)
[Digital key]
(Code)
[START]
[START]
[Digital key]
(Sub code)
[CANCEL]
(Corrects value)
[CLEAR]
(Corrects value)
[ENTER]
or
[INTERRUPT]
[FAX]
[START]
(Test copy)
[UP] or [DOWN]
(Adjust a value)
Stores value
in RAM
