96 GX9 ASD Installation and Operation Manual
Input Terminal 4 (RES) Response Time
Program Terminal Input Terminal Delays
This parameter delays the response of the ASD to any change in the RES
terminal input by the programmed value (see waveforms at F140).
The delay may be increased to provide additional electrical noise immunity or
to prevent the ASD from responding to contact bounce or chatter.
Direct Access Number — F143
Parameter Type — Numerical
Factory Default — 8
Changeable During Run — No
Minimum — 2
Maximum — 200
Units — mS
Input Terminal 5 – 8 (S1 – S4) Response Time
Program Terminal Input Terminal Delays
This parameter delays the response of the ASD to any change in the 5 – 8
terminal inputs by the programmed value (see waveforms at F140).
The delay may be increased to provide additional electrical noise immunity or
to prevent the ASD from responding to contact bounce or chatter.
Direct Access Number — F144
Parameter Type — Numerical
Factory Default — 8
Changeable During Run — No
Minimum — 2
Maximum — 200
Units — mS
Input Terminal 9 – 16 (S5 – S12) Response Time
Program Terminal Input Terminal Delays
This parameter delays the response of the ASD to any change in the 9 – 16
terminal inputs by the programmed value (see waveforms at F140).
The delay may be increased to provide additional electrical noise immunity or
to prevent the ASD from responding to contact bounce or chatter.
Direct Access Number — F145
Parameter Type — Numerical
Factory Default — 8
Changeable During Run — No
Minimum — 2
Maximum — 200
Units — mS

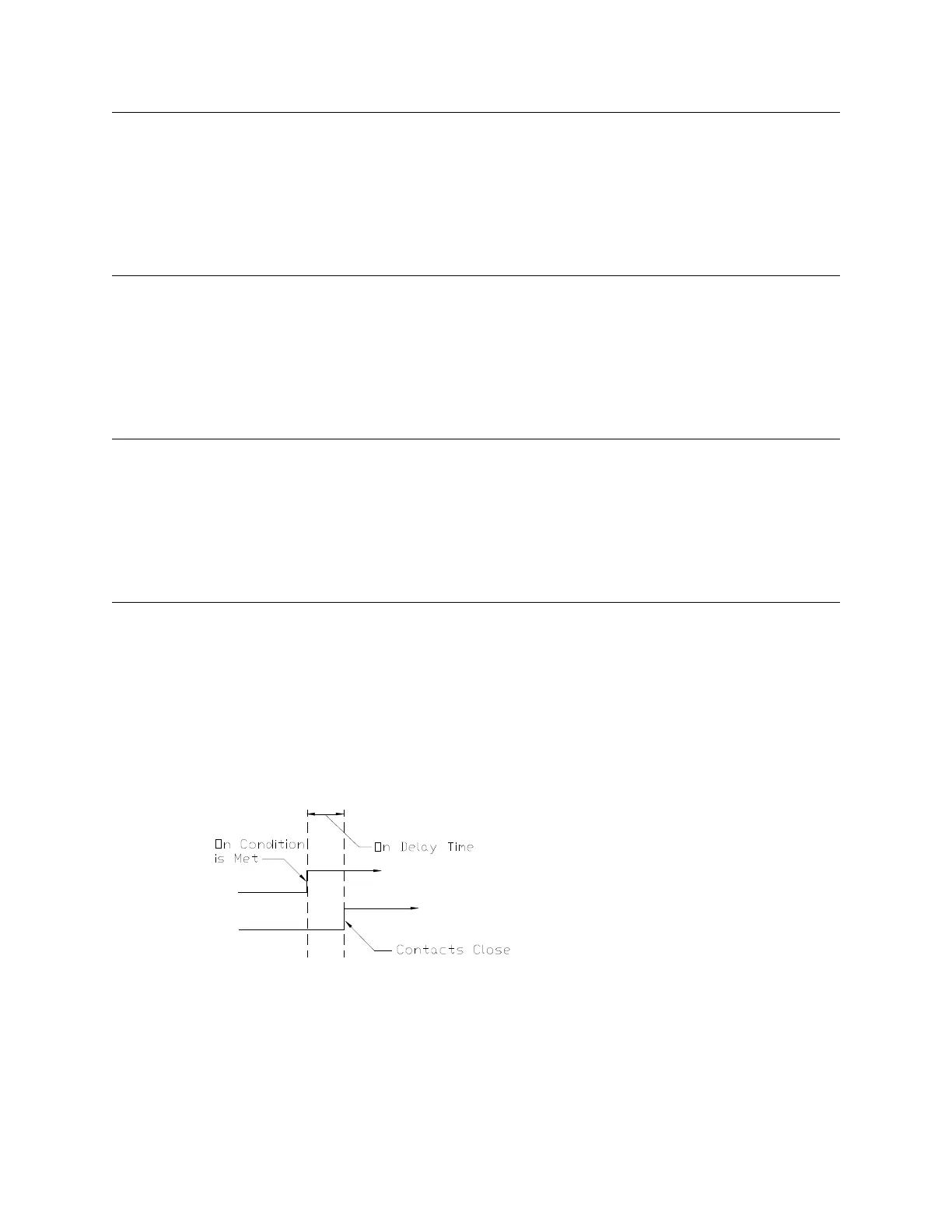

OUT1 On Delay
Program Terminal Output Terminal Delays
Once the condition is met to close the OUT1 (A & C) output terminals, this
parameter delays the closing of the terminals by the programmed value.
For example, if the OUT1 function is programmed as Overtorque Alarm,
OUT1 will close 2.0 mS (the default value for OUT1 On Delay) after the
overtorque condition occurs.
The delay may be increased to prevent relay chatter.
Direct Access Number — F150
Parameter Type — Numerical
Factory Default — 2
Changeable During Run — No
Minimum — 2
Maximum — 200
Units — mS
