110 GX9 ASD Installation and Operation Manual
RR Reference Point 1
Program Frequency Speed Reference Setpoints
This parameter is used to set the gain and bias of the RR terminal when the RR
terminal is used as the control input while operating in the Speed Control
mode or the Torque Control mode.
This parameter sets the RR input level that is associated with the RR Input
Point 1 Frequency setting when operating in the Speed control mode or is
associated with the RR Input Point 1 Torque setting when operating in the
Torque Control mode.
The bias and gain of the RR terminal may be trimmed at F472 and F473,
respectively.

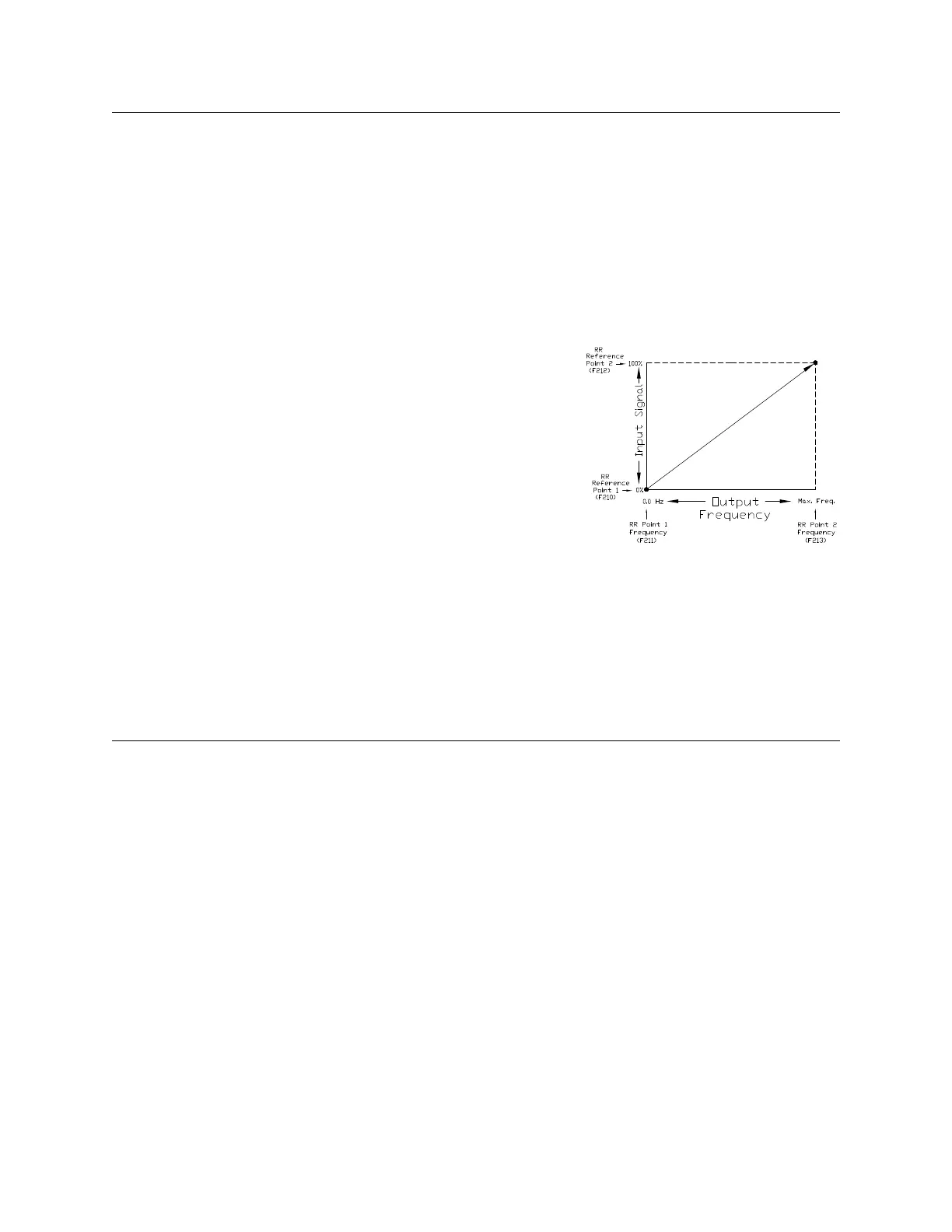

RR Speed Control Setup
Perform the following setup to allow the system to perform Speed control from
the RR terminal:
•Set RR Input Point 1 Frequency (F211).
•Set RR Reference Point 1 (F210) — the input analog signal level that
corresponds to the frequency setting at RR Input Point 1 Frequency.
•Set RR Input Point 2 Frequency (F213).
•Set RR Reference Point 2 (F212) — the input analog signal level that
corresponds to the frequency setting at RR Input Point 2 Frequency.
•Program Fundamental Standard Mode Selection Frequency Mode
1 RR.
•Program Fundamental Standard Mode Selection Command Mode
Selection Terminal Board.
•Provide a Run command (F and/or R).
Once set, as the RR voltage changes, the output frequency of the ASD will vary
in accordance with the above settings.
This parameter value is entered as 0% to 100% of the RR signal range.
Direct Access Number — F210
Parameter Type — Numerical
Factory Default — 0.00
Changeable During Run — Yes
Minimum — 0.00
Maximum — 100.00
Units — %
Frequency Settings
RR Input Point 1 Frequency
Program Frequency Speed Reference Setpoints
This parameter is used to set the gain and bias of the RR terminal when the RR
terminal is used as the control input while operating in the Speed Control
mode.
This parameter sets RR Input Point 1 Frequency and is the frequency that is
associated with the setting of RR Reference Point 1 when operating in the
Speed Control mode.
See RR Reference Point 1 (F210) for more information on this setting.
Direct Access Number — F211
Parameter Type — Numerical
Factory Default — 0.0
Changeable During Run — Yes
Minimum — 0.0
Maximum — Max. Freq. (F011)
Units — Hz
R
F210 F211
