Tests and Diagnostics
Qosmio F60 Series Maintenance Manual (960-796) [CONFIDENTIAL] 3-99
3.34.3 System Information Menu

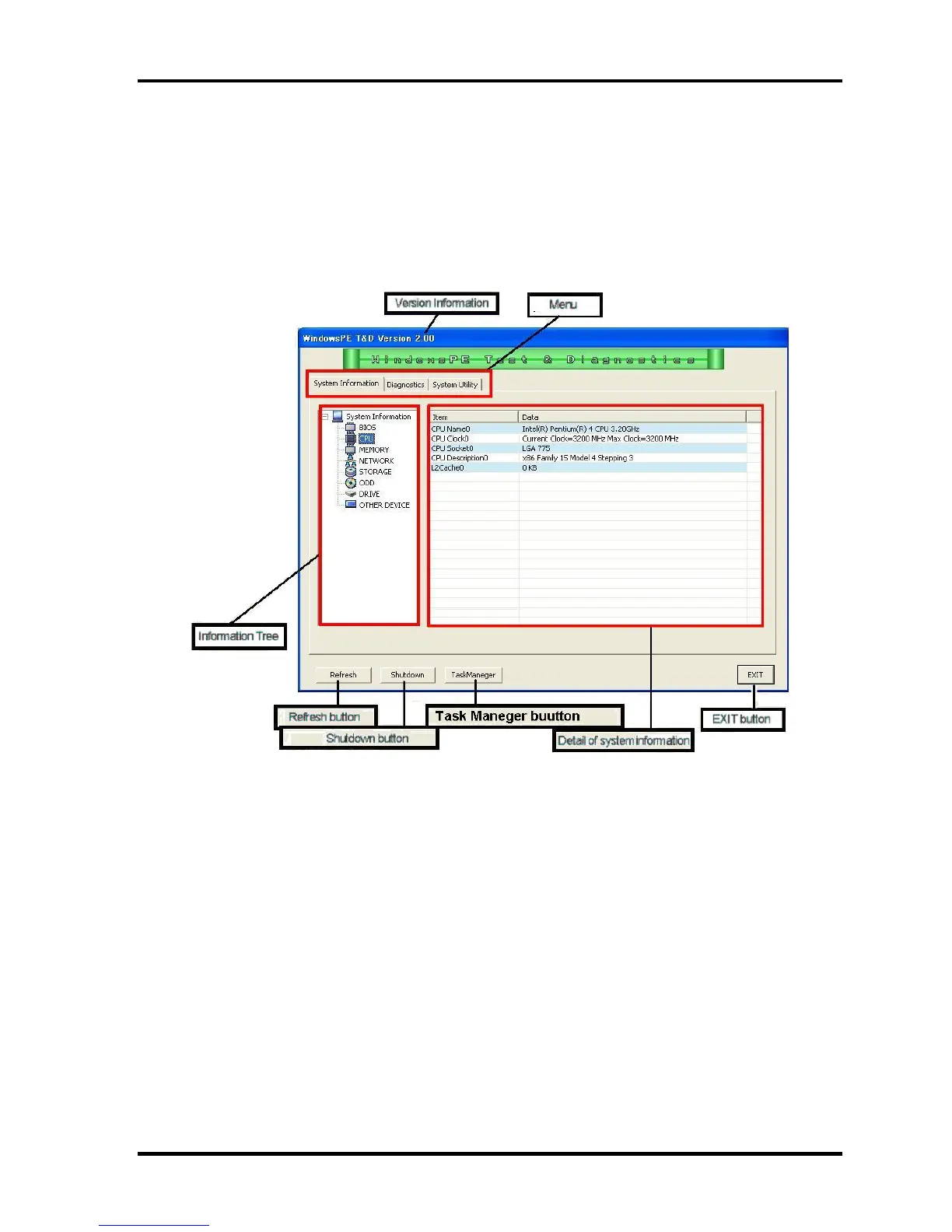

If you set the TOSHIBA Test & Diagnostic CD to the ODD drive and run WinPE T&D, the
following test selection screen is displayed. (For further details, refer to Chapter 2.)
Hereinafter, System Information will be described in detail.
There are three menus of System Information, Diagnostics, and System Utility as a menu.
3.34.3.1 Explanation of each item
▼ [Refresh] button Obtains system
information again, redisplays it, rejudges the grayed test
item(s) of the test menu and displays the test menu.
▼ [Shutdown] button Shuts down WindowsPE.
▼ [EXIT] button Terminates this application.
▼ Version information Displays the version of WinPE T&D.
▼ Menu Indicates tabs for selecting PC information, Diagnostics to set test items or conduct
tests, Tool to extract T&D to USB memory and System Utility to provide SMART
information.
▼ Information tree Displays detailed information of the item selected from Detail of System
Information if you click a desired item of the System Information displayed in
Information tree.
▼ Detail of system information Displays detailed information of the item selected in
Information tree. The detailed information will be given in section 3-3-2.
To Next Page
