Replacement Procedures
エラー
!
4.26 F jack
Removing the F jack
To remove the F jack, follow the steps below and refer to Figure 4-42.
1. Peel off the acetate tape and insulator and release the TV tuner antenna cable.
2. Disconnect the TV tuner antenna cable from the connector on the F jack.
cetate tape
F jack
TV tuner antenna cable

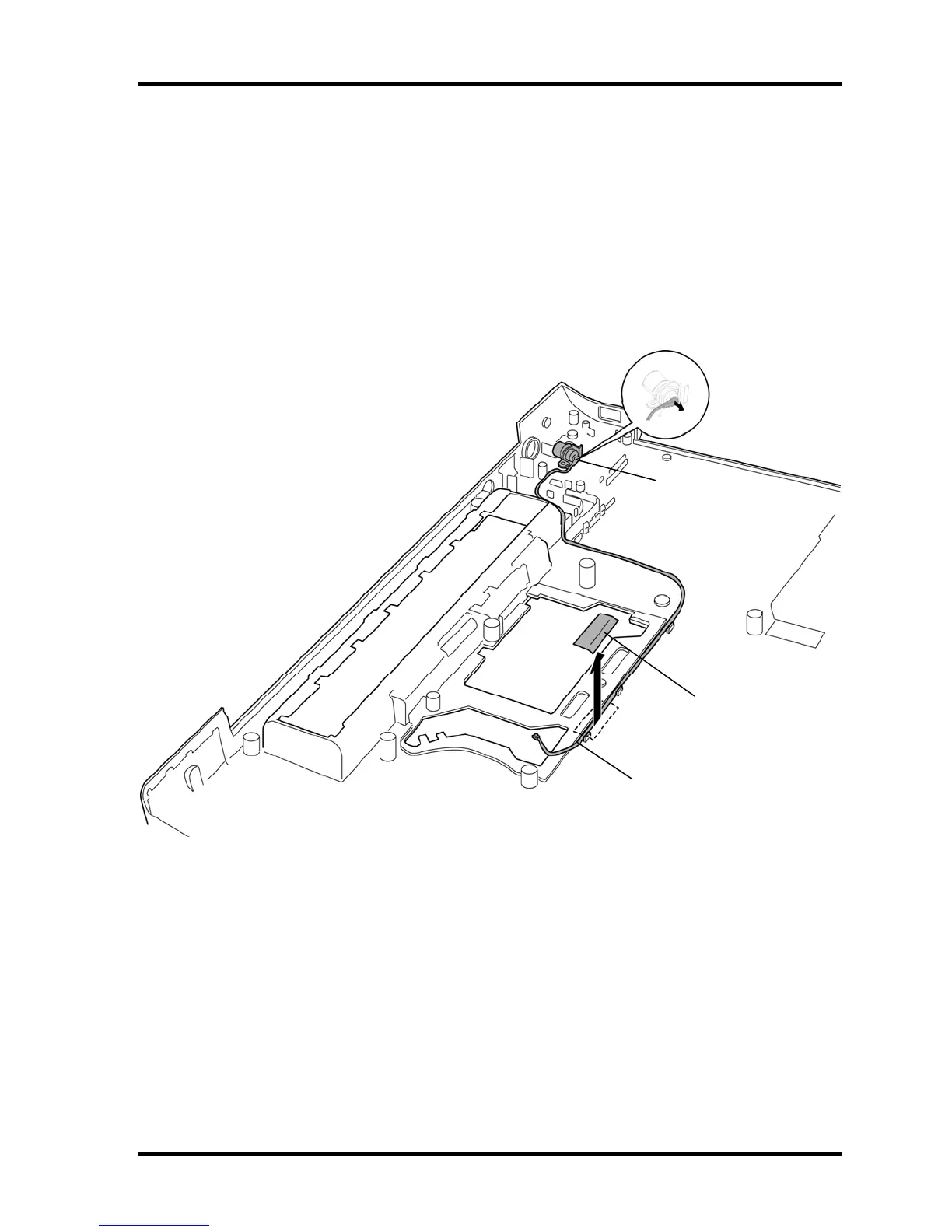

Figure 4-42 Removing the F jack
4-70 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)
