4.14 Touch pad/TB board
Removing the Touch pad/TB board
To remove the touch pad/TB board, follow the steps below and refer to Figure 4-21 to 4-23.
1. Turn up the insulator and disconnect the TB board FFC from the connector
CN3340 on the TB board.
2. Disconnect the touch pad FFC from the connector CN9530 on the TB board and
connecter on the touch pad.
3. Turn up the insulator and remove the following screws.
 M2.04B S-THIN HEAD screw 2
TP board FFC
CN9530
Touch pad FFC
Insulator
CN33
40
M2.0x4B S-THIN HEAD
Insulator
M2.0x4B S-THIN HEAD
Insulator

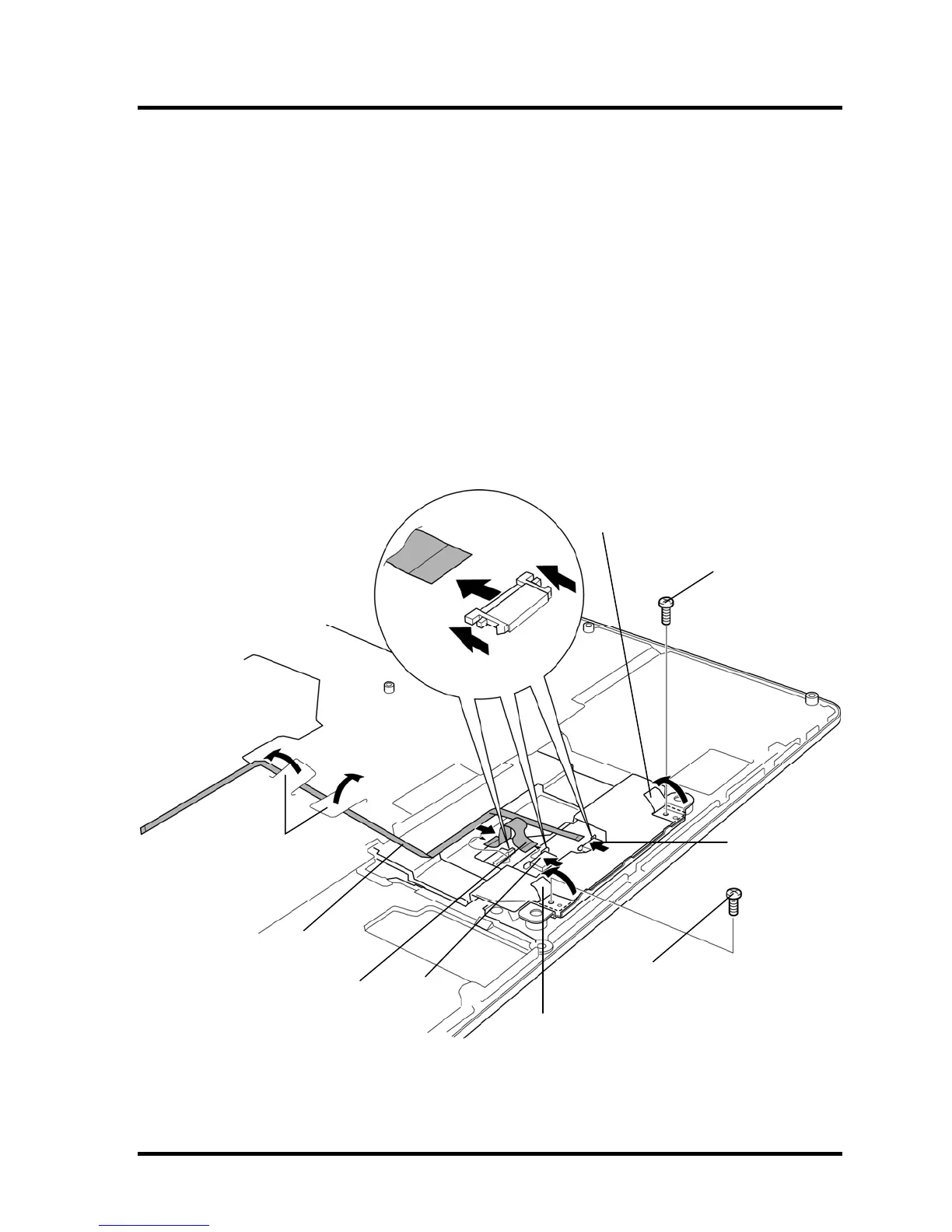

Figure 4-21 Removing the touch pad/TB board (1)
QOSMIO F60 Maintenance Manual (960-796) [CONFIDENTIAL] 4-39
