Toshiba Qosmio F60 Series Maintenance Manual

Troubleshooting Procedures
2.3.3 Procedure 3 Connection Check

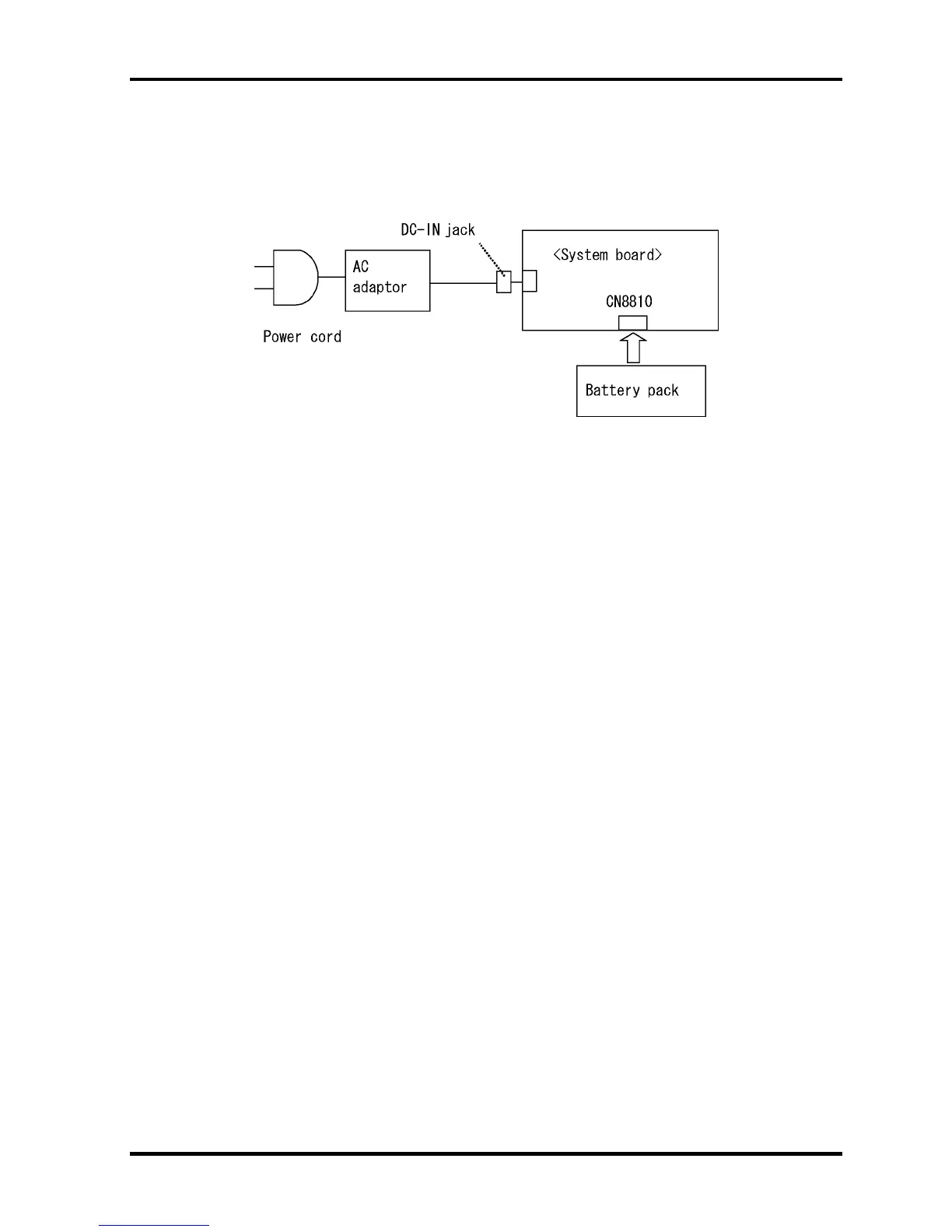

The wiring diagram related to the power supply is shown below:
Any of the connectors may be disconnected. Perform Check 1.
Check 1 Make sure the AC adapter and the AC power cord are firmly plugged into the DC
IN jack and wall outlet. If these cables are connected firmly, go to Check 2.
Check 2 Replace the AC adapter and the AC power cord with new ones.
 If the DC IN icon does not light, go to Procedure 5.
 If the battery icon does not light, go to Check 3.
Check 3 Make sure the battery pack is installed in the computer correctly. If the battery is
properly installed and the battery icon still does not light, go to Procedure 4.
Qosmio F60 Series Maintenance Manual (960-796) [CONFIDENTIAL] 2-21

Toshiba Qosmio F60 Series Specifications

General

Operating System	Windows 7 Home Premium
Storage	500GB HDD
Webcam	Integrated Webcam
Audio	Harman/Kardon stereo speakers
Connectivity	Wi-Fi 802.11n, Bluetooth
Ports	HDMI, VGA, eSATA, Ethernet
Battery	6-cell Lithium-ion battery
Processor	Intel Core i3 / i5 / i7 (depending on the specific model)
