Appendix F Wiring diagrams Appendices
4
Appendix F Wiring diagrams

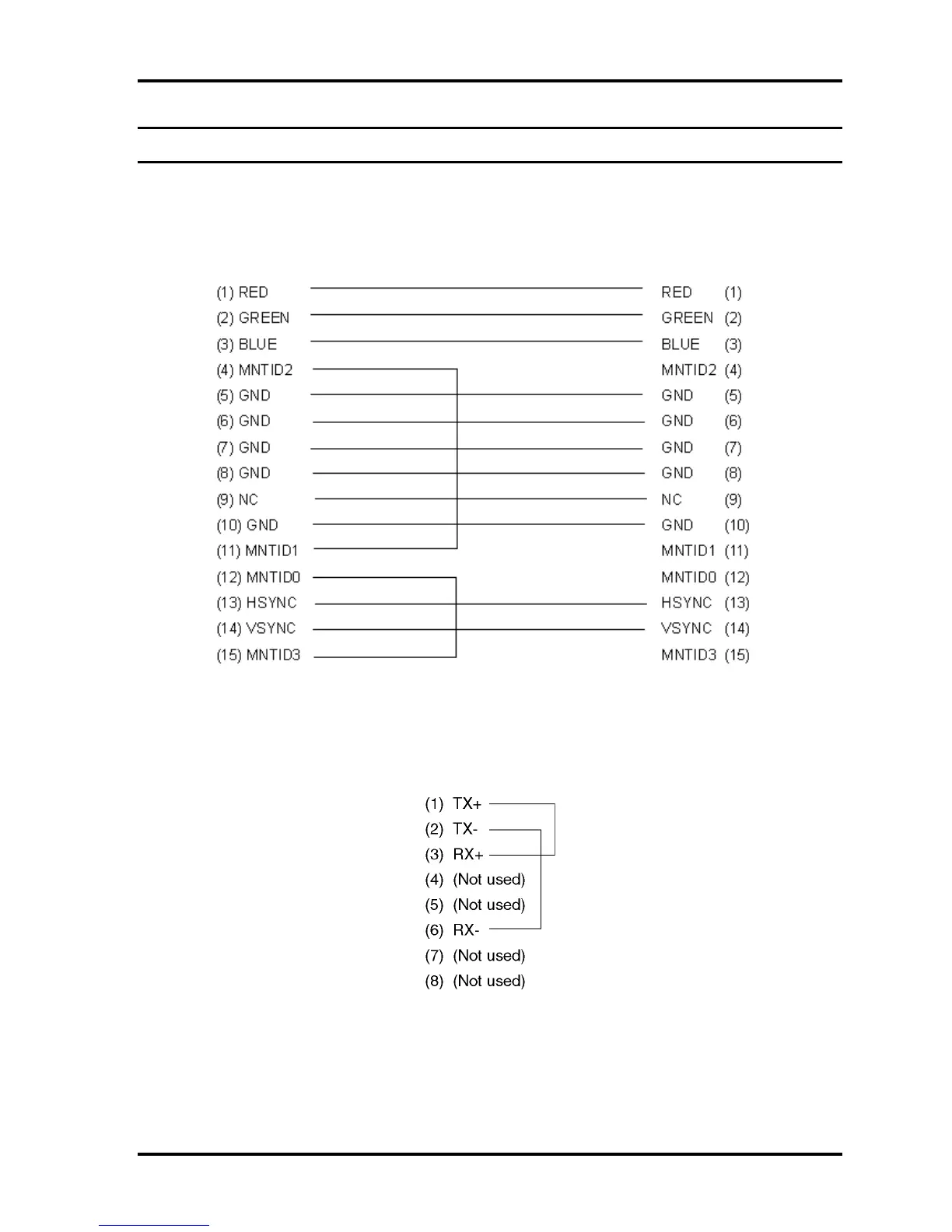

F.1 RGB Monitor Loopback Connector
Figure F-1 RGB Monitor Loopback Connector
F.2 LAN Loopback Connector
Figure F-2 LAN Loopback Connector
Qosmio F60 Series Maintenance Manual (960-796) [CONFIDENTIAL] F-1
