4.18 Microphone harness
Removing the Microphone harness
To remove the microphone harness, follow the steps below and refer to Figure 4-27.
1. Disconnect the microphone harness from the connector CN6070 on the JK board.
2. Remove the microphone from the microphone holder of the base assembly.
Microphone harness
Microphone
CN6070

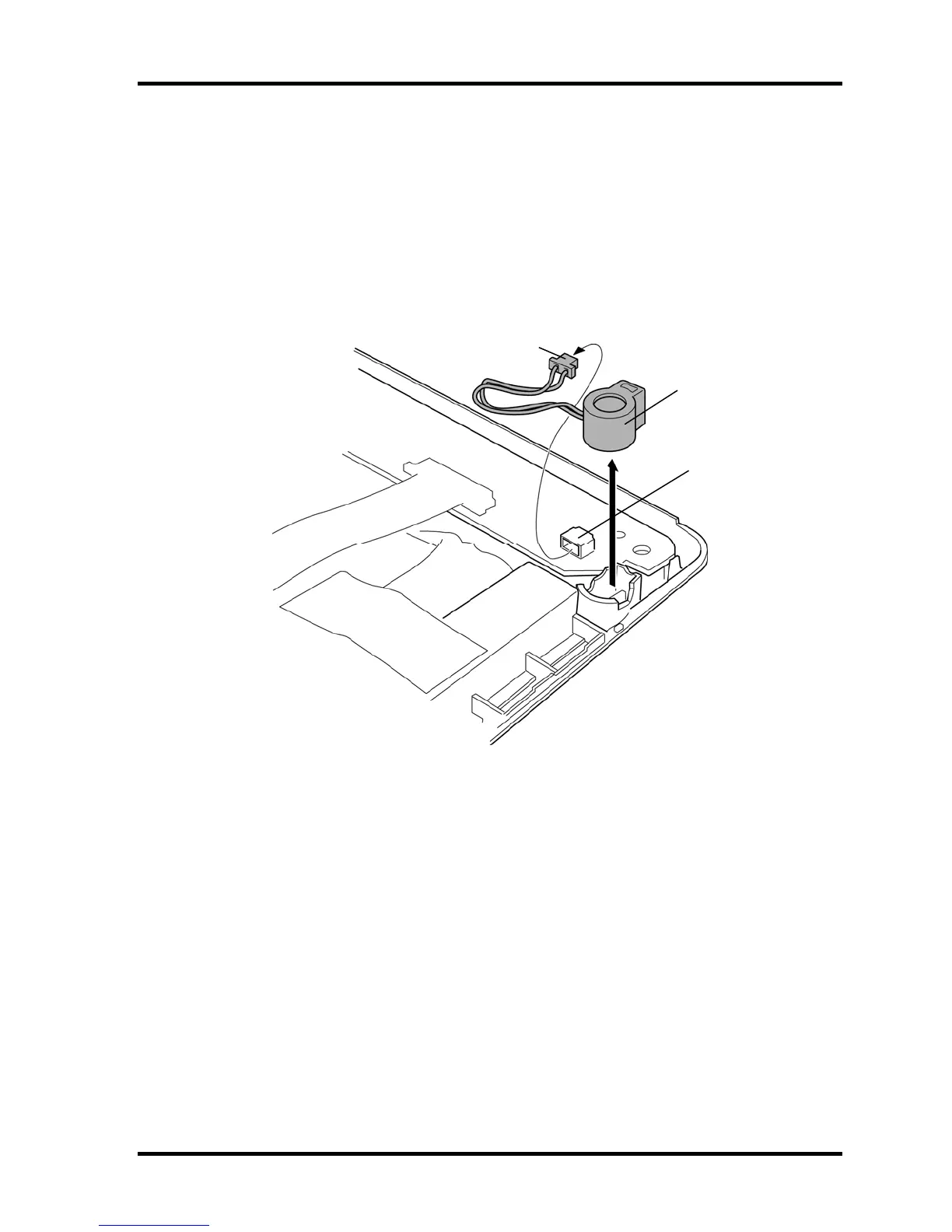

Figure 4-27 Removing the microphone
Installing the Microphone harness
To install the microphone harness, follow the steps below and refer to Figure 4-27.
1. Connect the microphone harness to the connector CN6070 on the JK board and set
the microphone into the microphone holder of the base assembly.
4-46 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)

Toshiba Qosmio F60 Series Specifications

General

Operating System	Windows 7 Home Premium
Storage	500GB HDD
Webcam	Integrated Webcam
Audio	Harman/Kardon stereo speakers
Connectivity	Wi-Fi 802.11n, Bluetooth
Ports	HDMI, VGA, eSATA, Ethernet
Battery	6-cell Lithium-ion battery
Processor	Intel Core i3 / i5 / i7 (depending on the specific model)
