4.22 RGB harness
Removing the RGB harness
To remove the RGB harness, follow the steps below and refer to Figure 4-32 and 4-33.
1. Disconnect the RGB harness from the connector CN9510 on the system board.
2. Remove the following screw securing the brake hinge LOW L (with the RGB
harness).
 M2.56B FLAT HEAD screw 1
 M2.56C Tapping screw 1
3. Release the latch and remove the brake hinge LOW L (with the RGB harness).
M2.5x6C Tapping
M2.5x6B FLAT HEAD
CN9510
RGB harness
Latch
Brake hinge LOW L

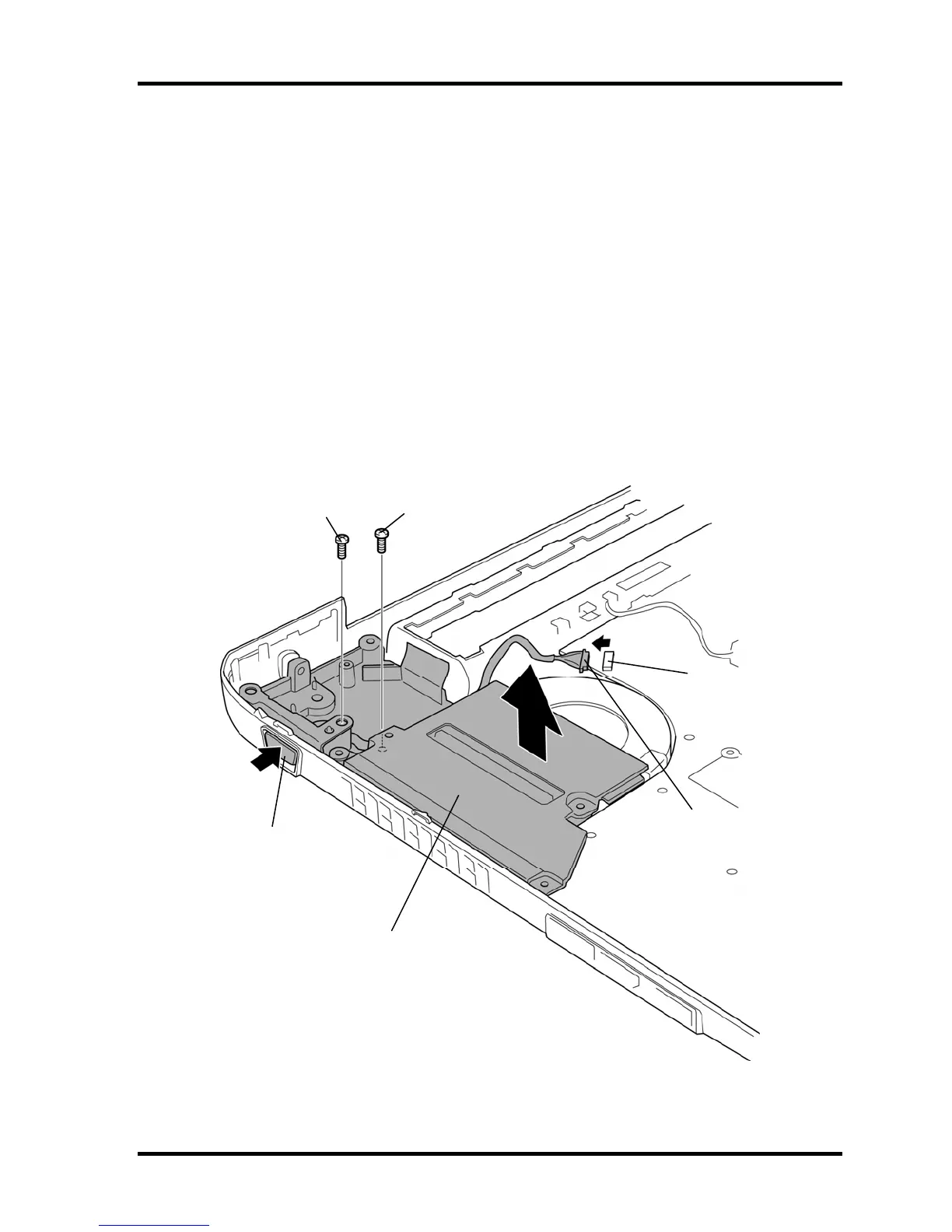

Figure 4-32 Removing the RGB harness (1)
4-54 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)

Toshiba Qosmio F60 Series Specifications

General

Operating System	Windows 7 Home Premium
Storage	500GB HDD
Webcam	Integrated Webcam
Audio	Harman/Kardon stereo speakers
Connectivity	Wi-Fi 802.11n, Bluetooth
Ports	HDMI, VGA, eSATA, Ethernet
Battery	6-cell Lithium-ion battery
Processor	Intel Core i3 / i5 / i7 (depending on the specific model)
