Replacement Procedures
エラー
!
4.25 System board/RJ45 harness/DC-IN harness/
USB harness/Speaker
CAUTION: 1. If replacing with a new system board, execute the subtest01 Initial
configuration in section 3.4 “Setting of the hardware configuration”. Also
update with the latest BIOS and EC/KBC as described in Appendix G and
in Appendix H.
2.

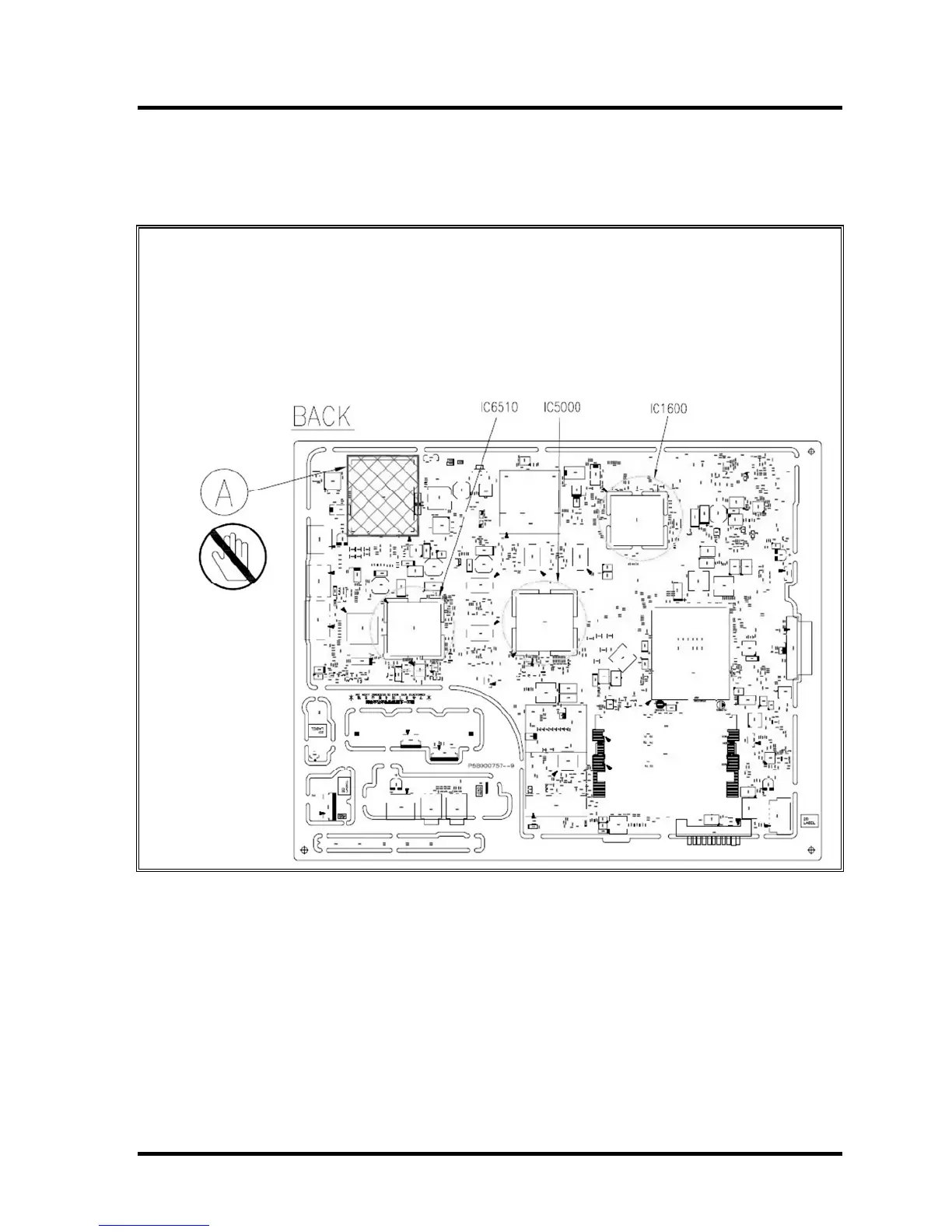

3. When removing/installing the system board, do not handle with the area
A.
QOSMIO F60 Maintenance Manual (960-796) [CONFIDENTIAL] 4-61
