Replacement Procedures
エラー
!
Removing the System board/RJ45 harness/DC-IN harness/USB harness/
Speaker
To remove the system board/RJ45 harness/DC-IN harness/USB harness/speaker, follow the
steps below and refer to Figure 4-36 to 4-41.
1. Release the latches and remove the harness holder.
Harness holder
Latch

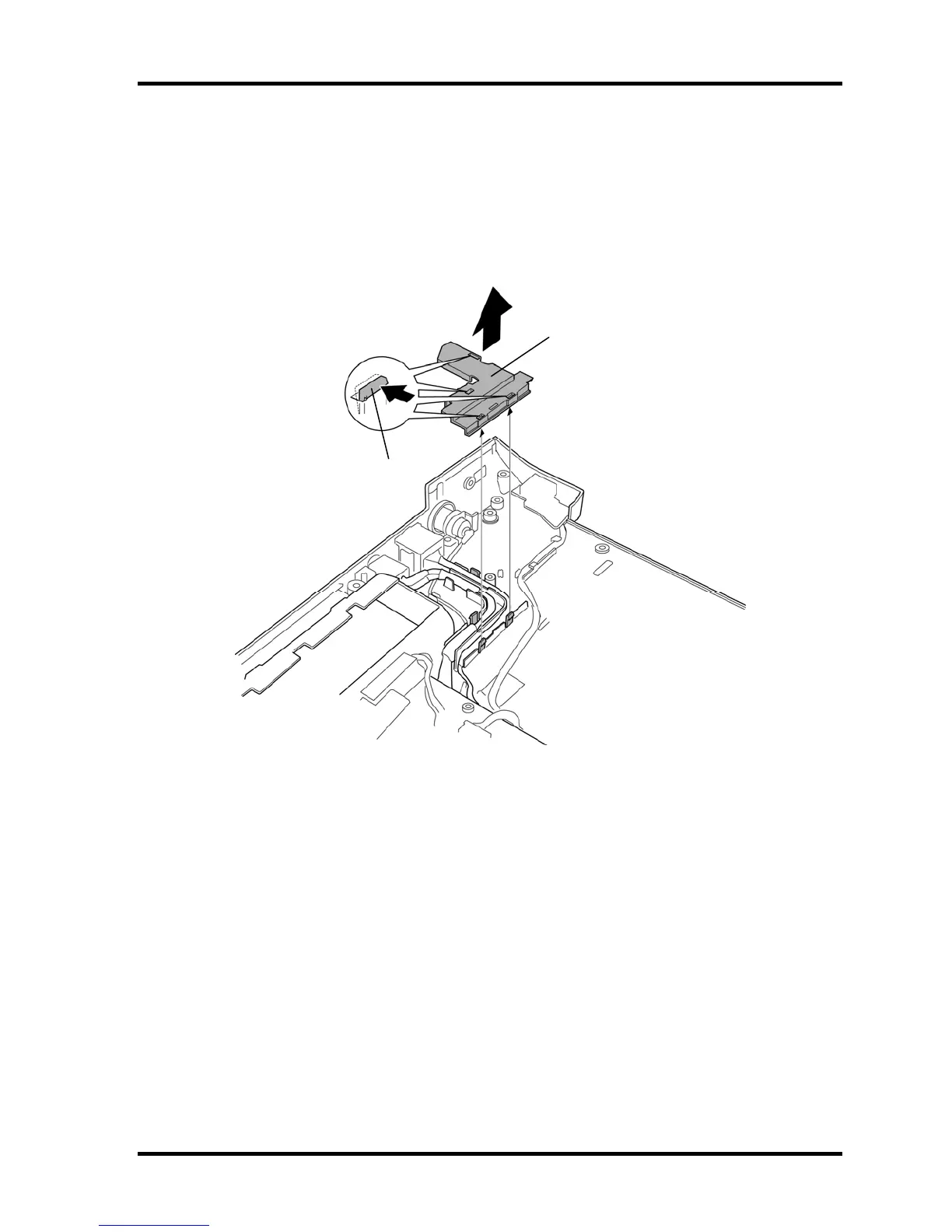

Figure 4-36 Removing the system board (1)
4-62 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)
