5. Disconnect the keyboard cable from the connector CN3230 on the system board and
remove the keyboard.
CN3230
Keyboard cable
Keyboard

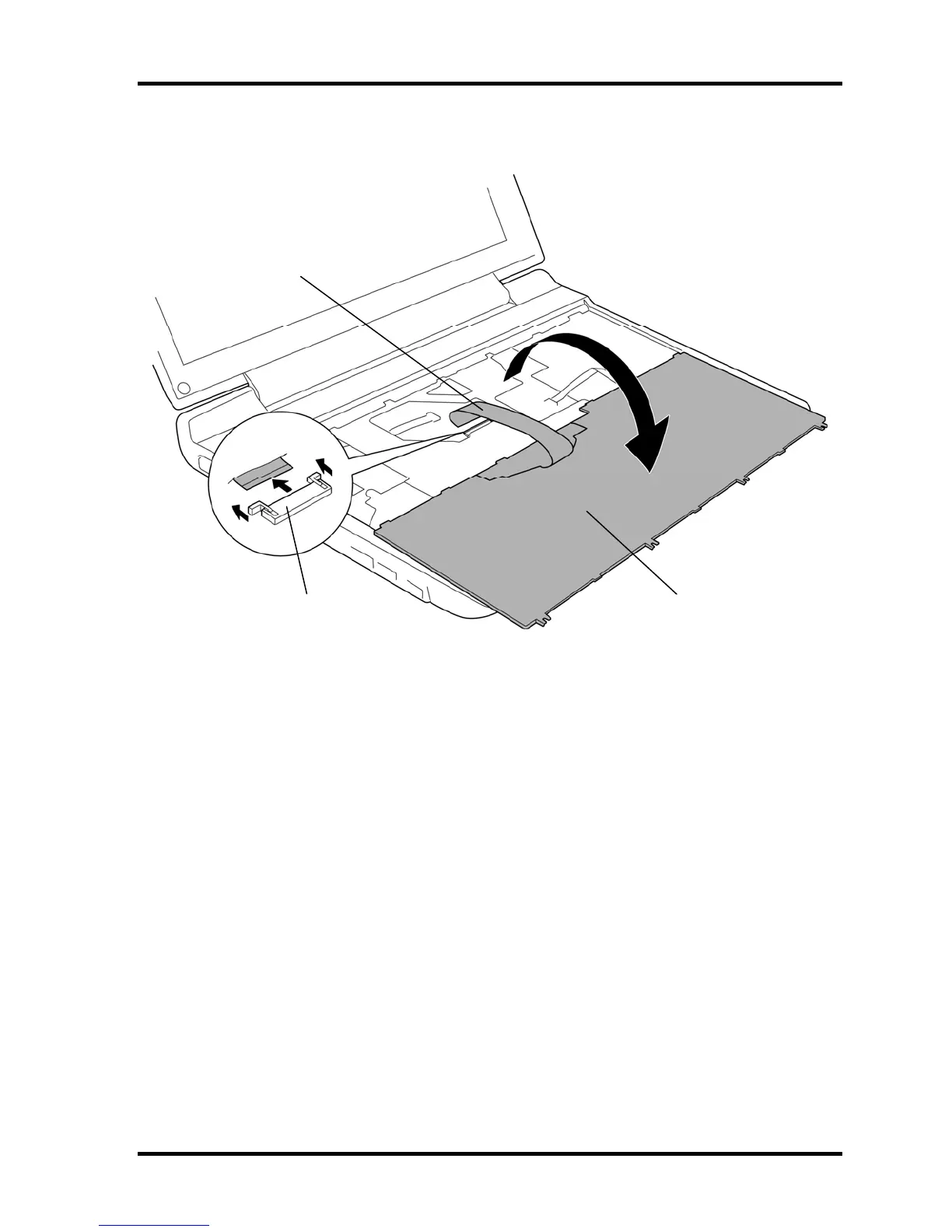

Figure 4-10 Removing the keyboard (2)
Installing the keyboard
To install the keyboard, follow the steps below and refer to Figure 4-8 to 4-10.
1. Place the keyboard on the palm rest with its face down. Connect the keyboard cable
to the connector CN3230 on the system board.
2. Turn the keyboard face up and put it on the computer while engaging the latches.
Make sure that latches of the under side are put in the holes and there is no space
between the keyboard and the computer.
3. Secure the keyboard with the following screws and KB hold plate.
 M2.53C S-THIN HEAD screw 3
4. Set the keyboard holder and press it to latch.
4-22 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)
