Toshiba Qosmio F60 Series Maintenance Manual

エラー ! スタイルが定義されていません。 エラー ! スタイルが定義されていません。
エラー ! スタイルが定義されていません。 Replacement Procedures エラー !
ス
4. Turn over the computer and open the display.
5. Disconnect the touch sensor FFC, SW board FFC, TB board FFC, LED board
FFC and TP board harness from the connectors CN9650, CN3390, CN9570,
CN3240, CN3242 and CN3241 on the system board.
6. Remove the following screws securing the cover assembly.
 M2.510B FLAT HEAD screw 3
TP board harness
(Connected to CN3241)
TB board FFC
(Connected to CN3240)
Touch sensor FFC
(Connected to CN9650)
M2.5x10B FLAT BIND
M2.5x
10B FLAT BIND
SW board FFC
(Conn
ected to CN3390)
LED board FFC
(Connected to CN3242)
M2.5x10B FLAT BIND

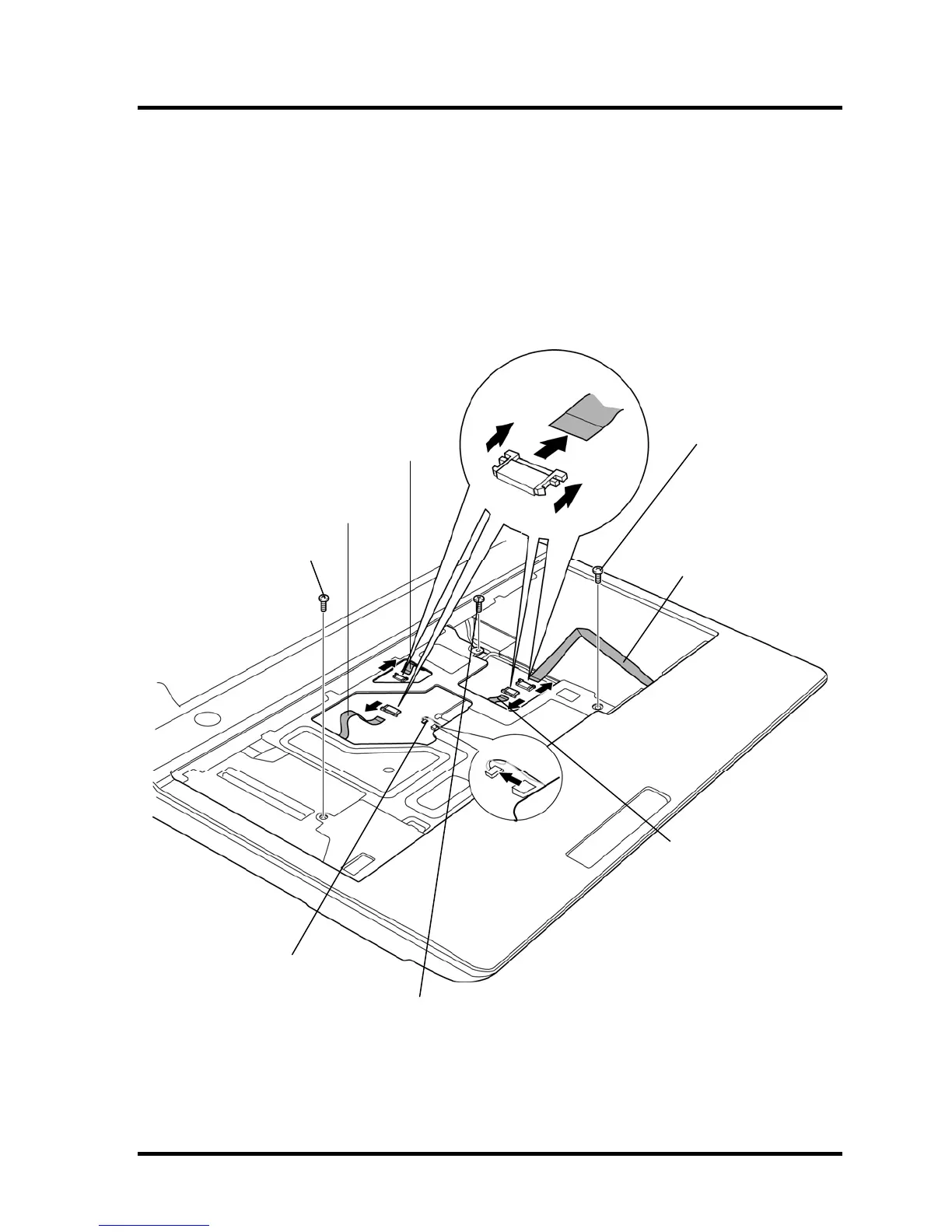

Figure 4-12 Removing the cover assembly (2)
QOSMIO F60 Maintenance Manual (960-796) [CONFIDENTIAL] 4-25
