Replacement Procedures
エラー
!
4. Pass the wireless LAN antenna cables through the insulator (WLAN LOW
INSIALATOR).
5. Arrange the wireless LAN antenna cables and camera harness in place.
6. Stick the acetate tapes in place.

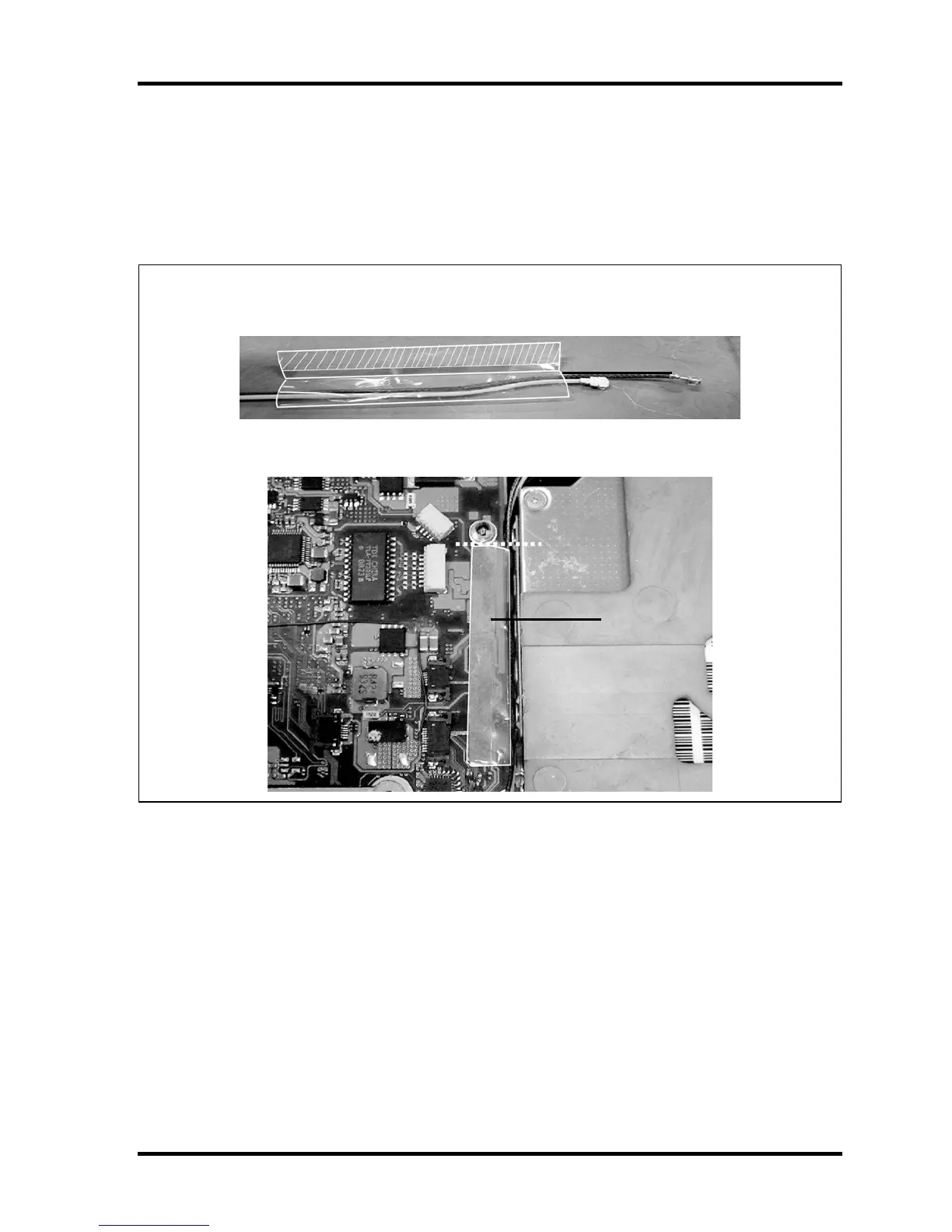

NOTE: Pass the wireless LAN antenna cable through the insulator (WLAN LOW
INSULATOR) as shown in the figure below.
WLAN LOW
Insulator
Stick the (WLAN LOW INSULATOR) as shown in the figure below.
WLAN LOW
Insulator
7. Connect the LCD harness and camera harness to the connectors CN5300 and
CN9550 on the system board.
4-50 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)
