7. Remove the system board from the base assembly. (Be careful that the DC-IN harness
and USB harness are still connected to the system board.)
8. Peel off the acetate tape and insulators and remove the speakers.
DC-IN harness
Speaker
Speaker
USB harness
System board

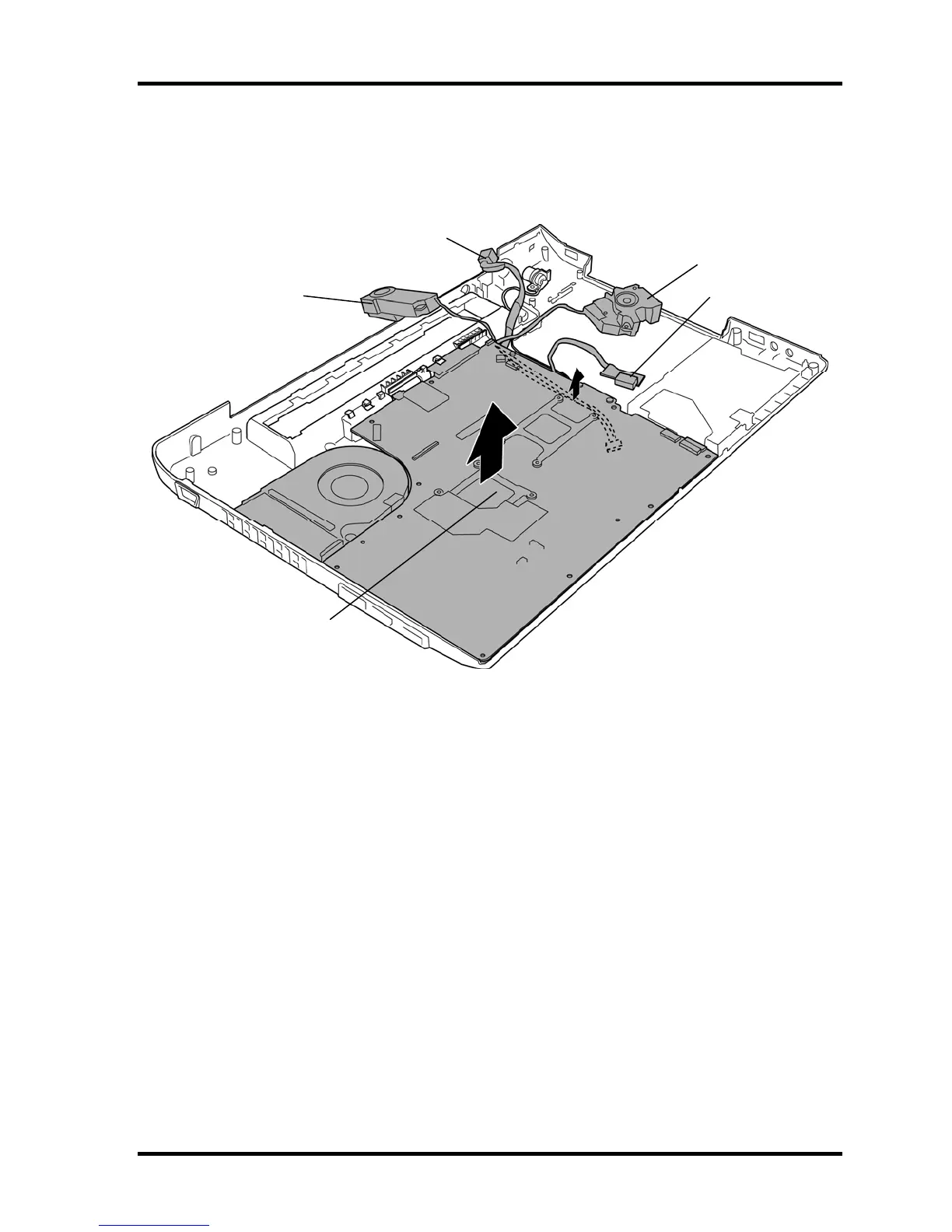

Figure 4-40 Removing the system board (5)
