Replacement Procedures
エラー
!
スタイルが定義されて
3. Remove the following screws securing the LCD unit.
M2.55B FLAT HEAD screw 8
4. Turn up the insulators and release the LCD harnesses.
5. Remove the LCD unit from the LCD cover.
Insulator
M2.5x5B FLAT HEAD
M2.5x5B FLAT HEAD
Insulator
LCD harness
Insulator
LCD unit

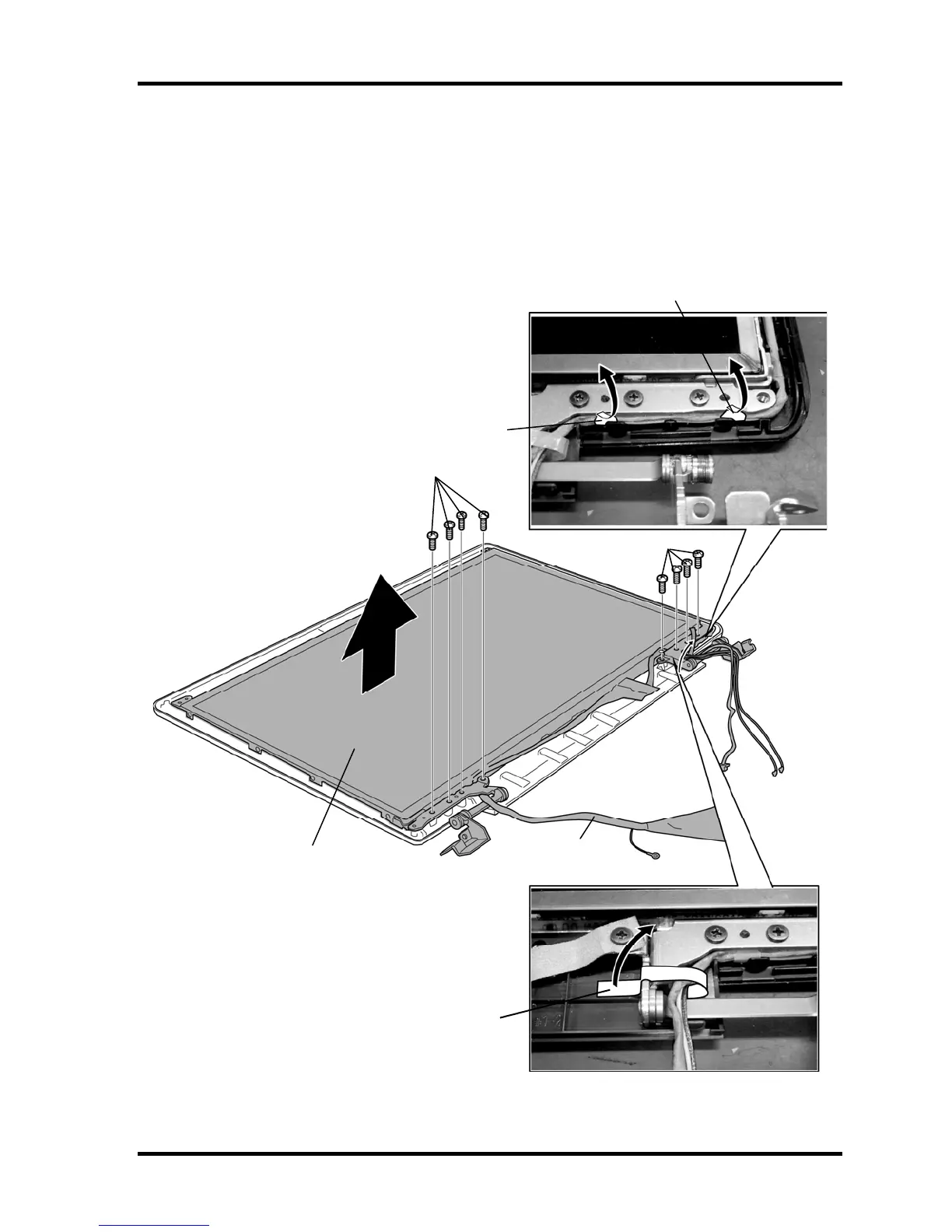

Figure 4-52 Removing the LCD unit
4-84 [CONFIDENTIAL] QOSMIO F60 Maintenance Manual (960-796)
