TRANSPORTATION AND INSTALLATION MANUAL
2.2 Transportation
Move the robot and controller very carefully. Make sure that no excessive impact or
vibration is exerted on the equipment. If the equipment is to be subject to vibration
over a long period, be sure to tighten all the clamp and base set bolts completely.
If the equipment is to be moved to a location some distance from where it was
unpacked, reposition the cushions as they were and put the equipment back into the
corrugated cardboards.
2.2.1 Mass and Dimensions
The mass and outer dimensions of the robot are shown in Table 2.1.
For the mass and outer dimensions of the controller, see Fig. 3.5 of Para. 3.3.1.

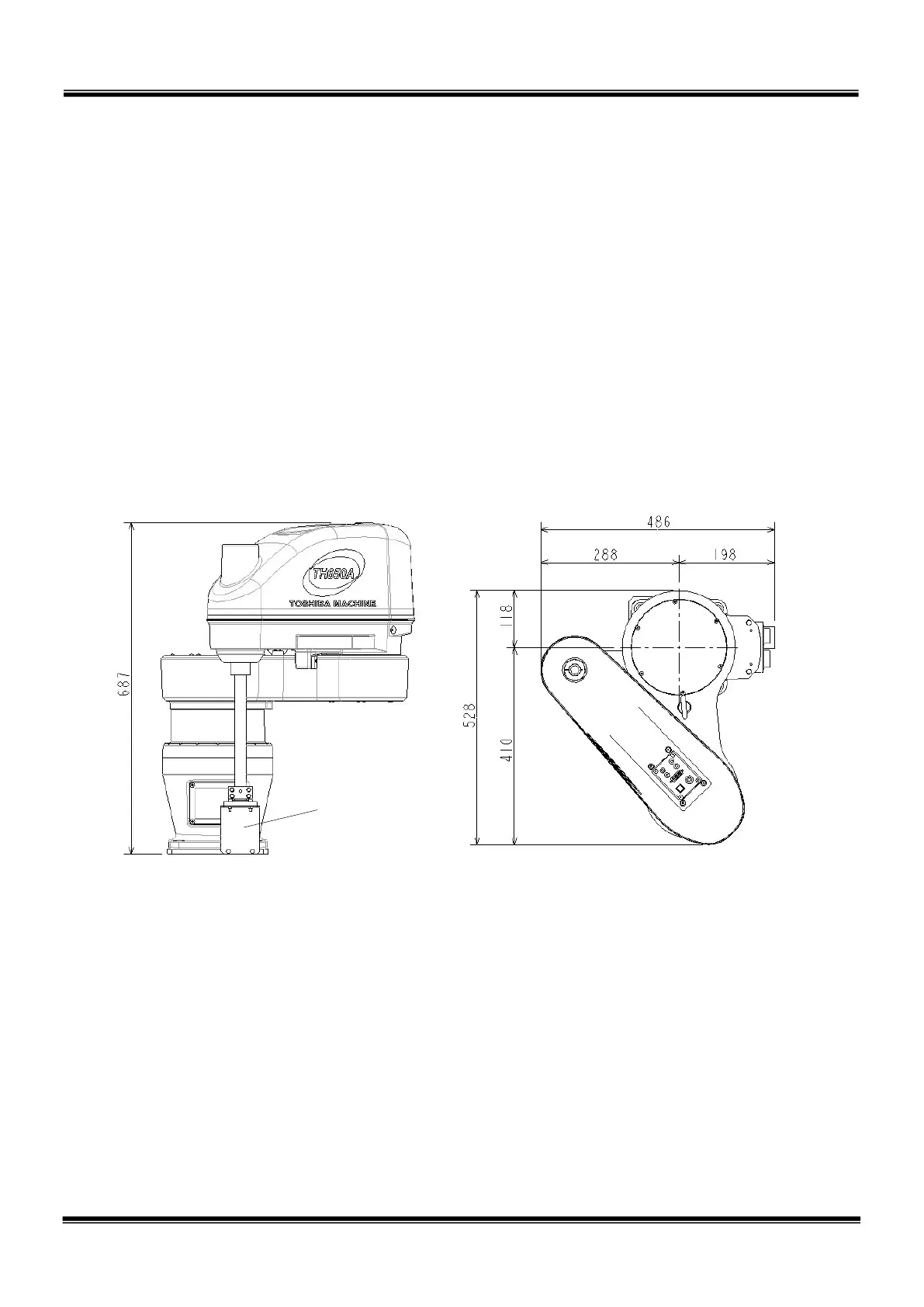

Fig. 2.2 Outer dimensions at transport
Mass of robot body
52
kg
Clamp
STE 85305
