TRANSPORTATION AND INSTALLATION MANUAL
2.2.2 Transporting the Robot
In principle, the robot should be transported in the state shown in Fig. 2.2 above.
Fold back and secure the arm with the attached clamp. (The robot is shipped in this
posture. After you have unpacked the shipment, you should move it as it is.) At this
time, take careful precautions not to impose a large force on the tool shaft.
• Be sure to secure the arm with the attached clamp before transporting the
robot. Failure to do so could cause a hazardous situation as the arm will
move when the robot is lifted.
It is possible to lift up and transport the robot. Pass the wire through the attached
eyebolt, then lift up the robot carefully, as shown in Fig. 2.3.

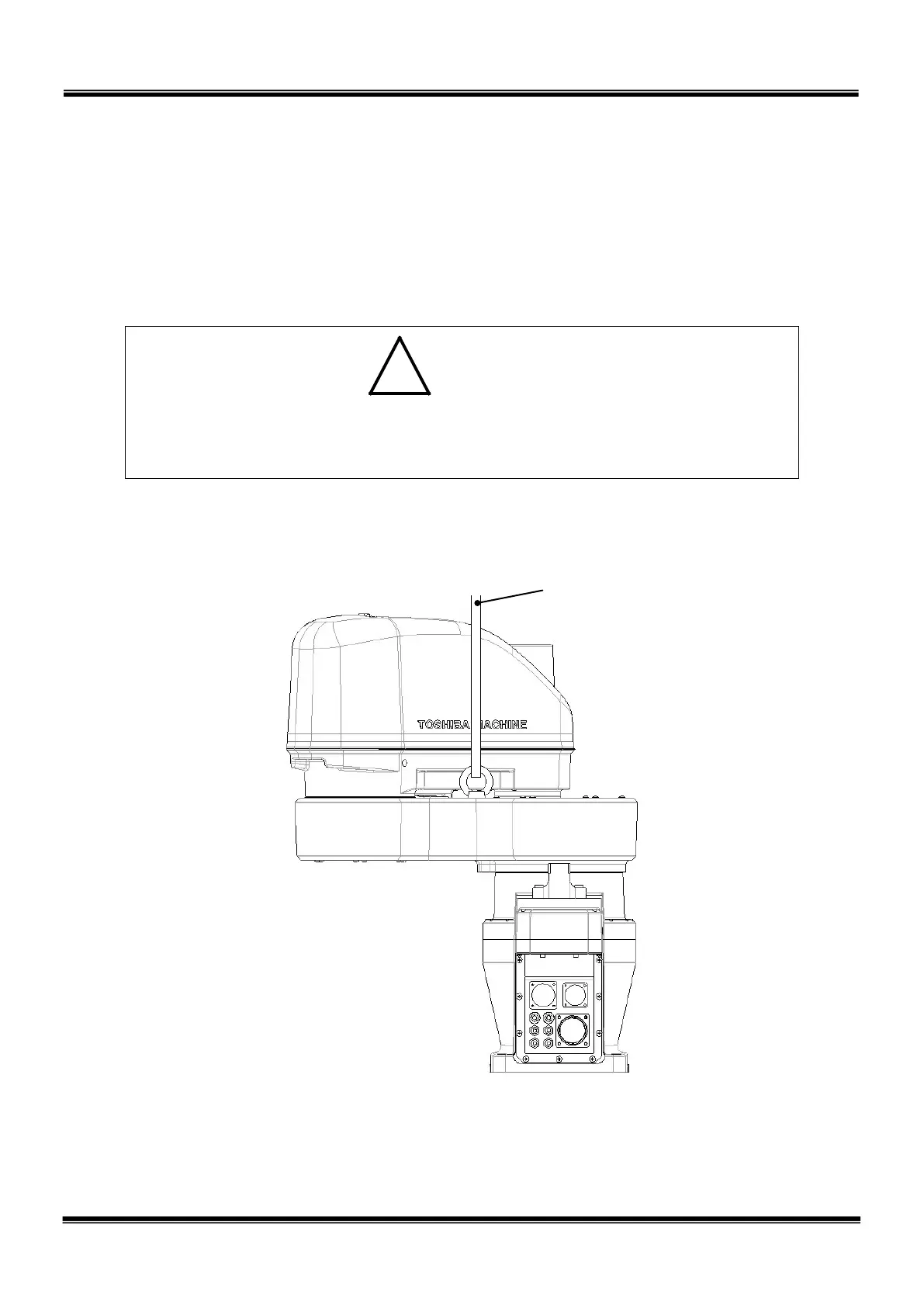

Fig. 2.3 Lifting up the robot
STE 85305
