TRANSPORTATION AND INSTALLATION MANUAL
• The wire to be used should be such that can well withstand the mass of the
robot.
• When lifting up the robot, it may tilt a little. Lift it up slowly.
• Lifting up and down should be performed carefully so that any impact
cannot be exerted on the robot.
• When carrying the robot by workers, take careful precautions to prevent
their hand or leg from being caught in the robot.

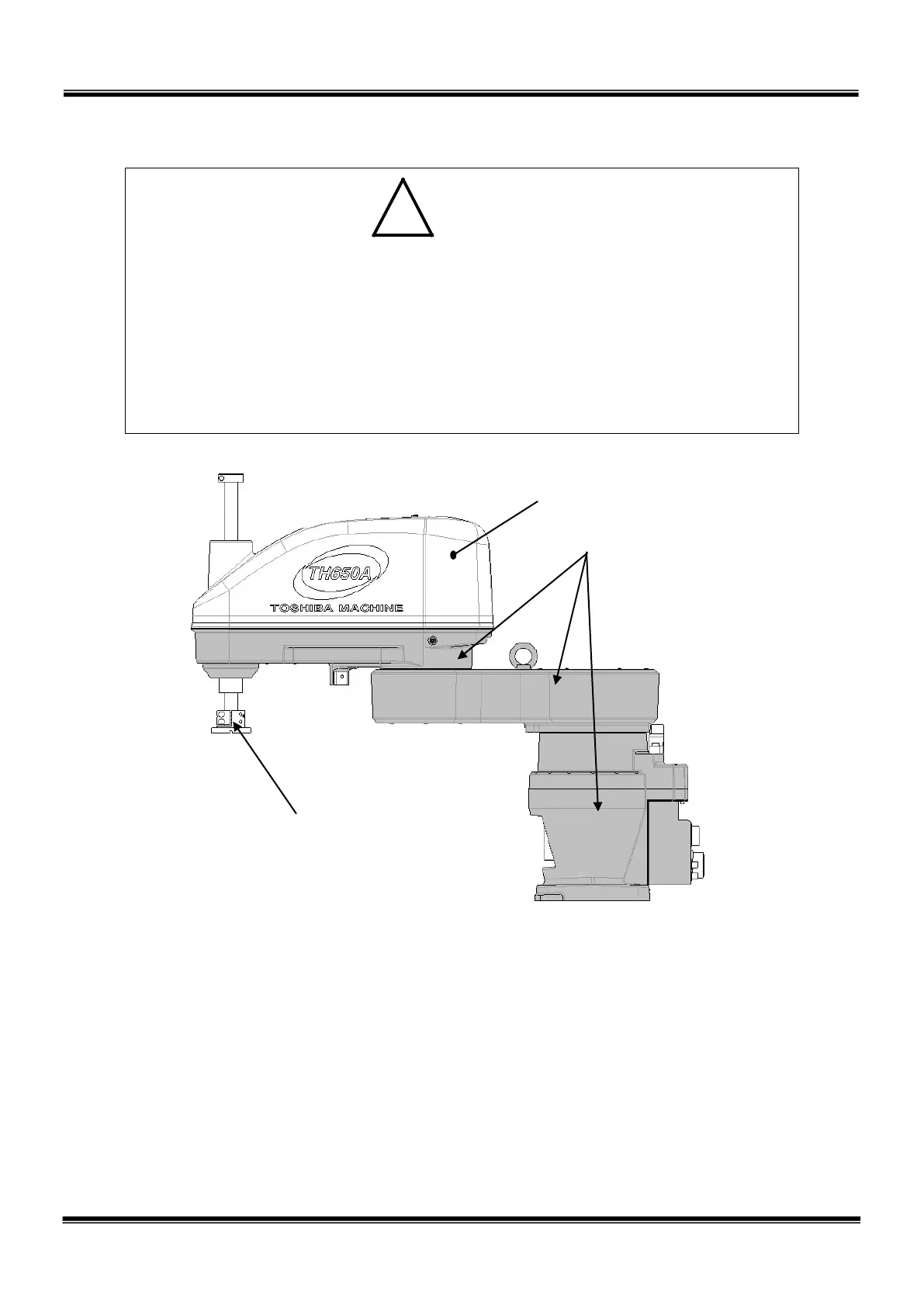

Fig. 2.4 Robot handling areas (shaded areas)
After the installation, remove the clamp and eyebolt used for transport.
Handling areas (shaded areas)
DO NOT hold the ball screw
spline shaft.
STE 85305
– 18 –
