Toshiba TH650A - Precautions for Handling the Teach Pendant

TRANSPORTATION AND INSTALLATION MANUAL
c) When the controller is mounted on the rack, the weight of the controller should
be supported with the legs of the controller. Screw holes for rack-mounting the
controller are used for securing the controller panel, and the weight of the
controller cannot be supported only with these screws.
d) On the front of the controller, a clearance of approx. 90 mm should be provided
for connecting the connector of the teach pendant. Even if the teach pendant is
not used, a clearance of approx. 60 mm is required for connecting a dummy plug.

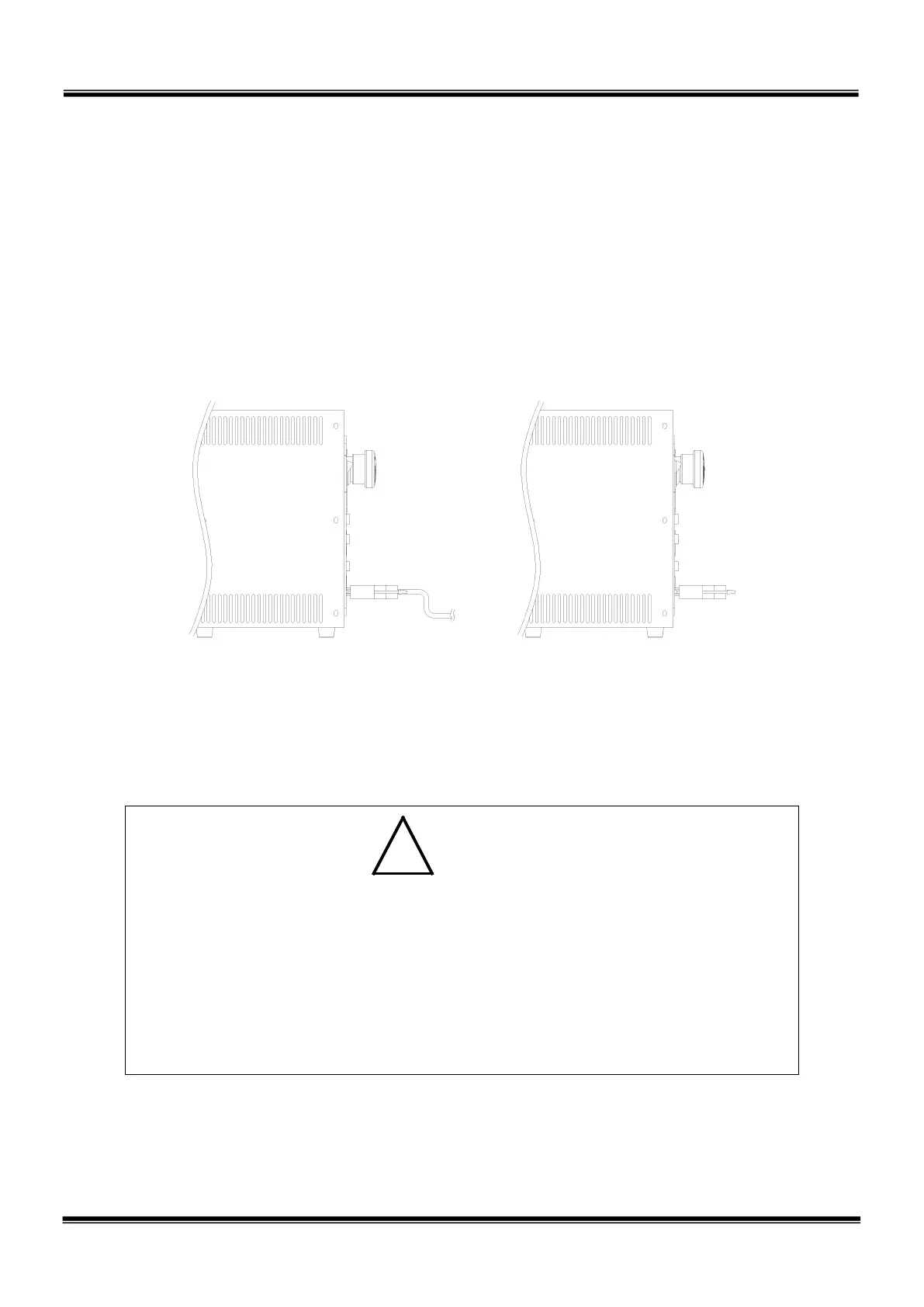

Fig. 3.9 Clearance of controller front side
3.4 Precautions for Handling the Teach Pendant
Be careful of the following matters when handling the teach pendant.
!
CAUTION
• DO NOT drop the teach pendant or hit it against anything.
• DO NOT pull the cable running from the teach pendant.
• DO NOT press the switches on the teach pendant with anything sharp (like
the tip of a knife, pencil, ball-point pen, etc.).
• DO NOT place or use the teach pendant near open flames.
• DO NOT leave the teach pendant in direct sunlight for a long period of time.
STE 85305
– 31 –
