TRANSPORTATION AND INSTALLATION MANUAL
4.3.3 Control Panel Mounting Dimensions
The dimensions of mounting the control panel are shown in Fig. 4.6.
Cross truss head screws (ø3×6, ZN3–B) are used.

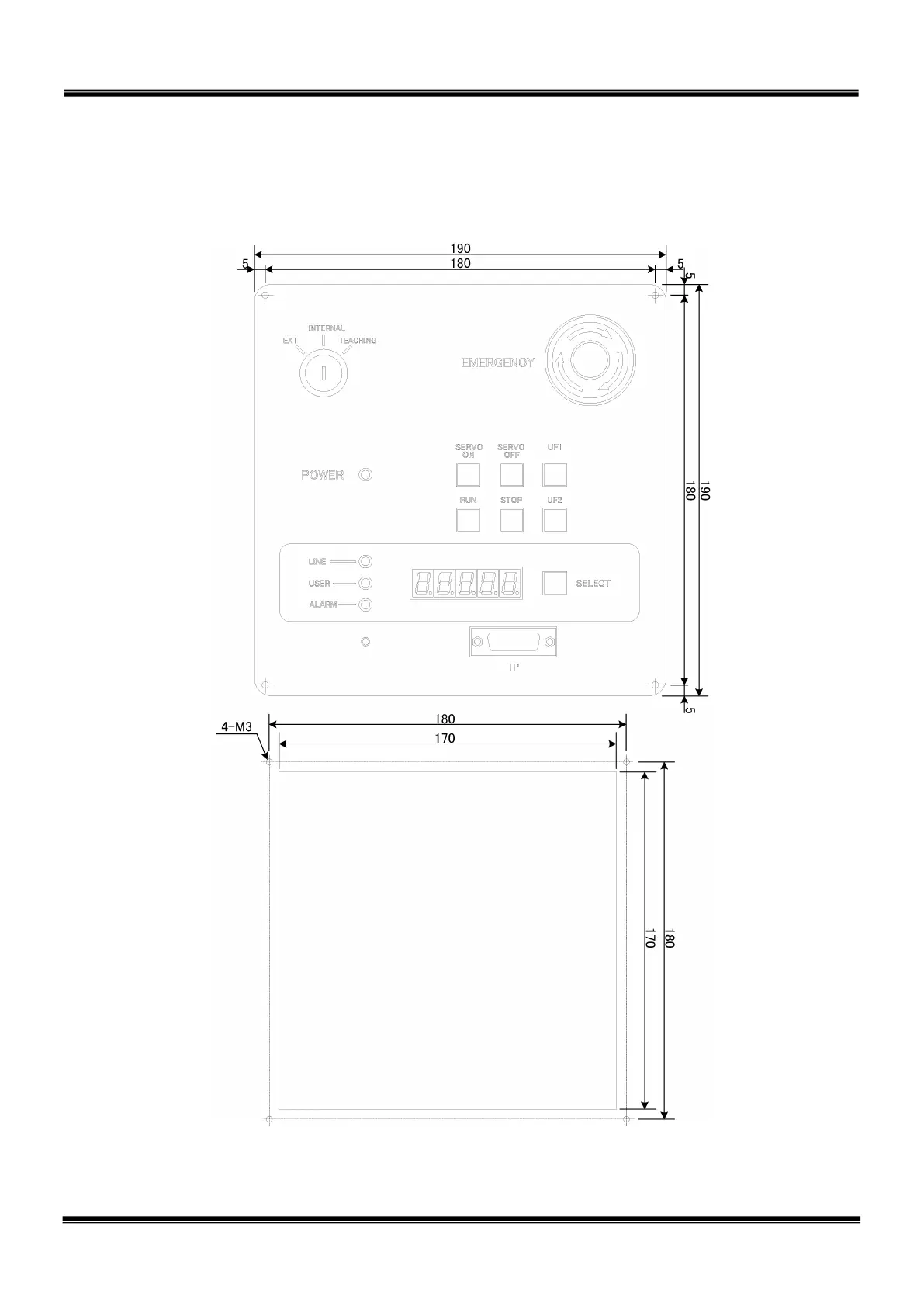

Fig. 4.6 Control panel mounting dimensions
STE 85305
– 45 –
