TRANSPORTATION AND INSTALLATION MANUAL
4.3.5 Dimensions when Separating Control Panel
Fig. 4.8 shows the connections of the control panel and dummy panel. Provide a
clearance of 50 mm or more (with cover, 60 mm or more) on the rear side of the
separated control panel.
When the cable is connected to the dummy panel of the controller, provide a clearance
of 80 mm or so in front of the controller as the cable connector sticks out of the panel
surface.

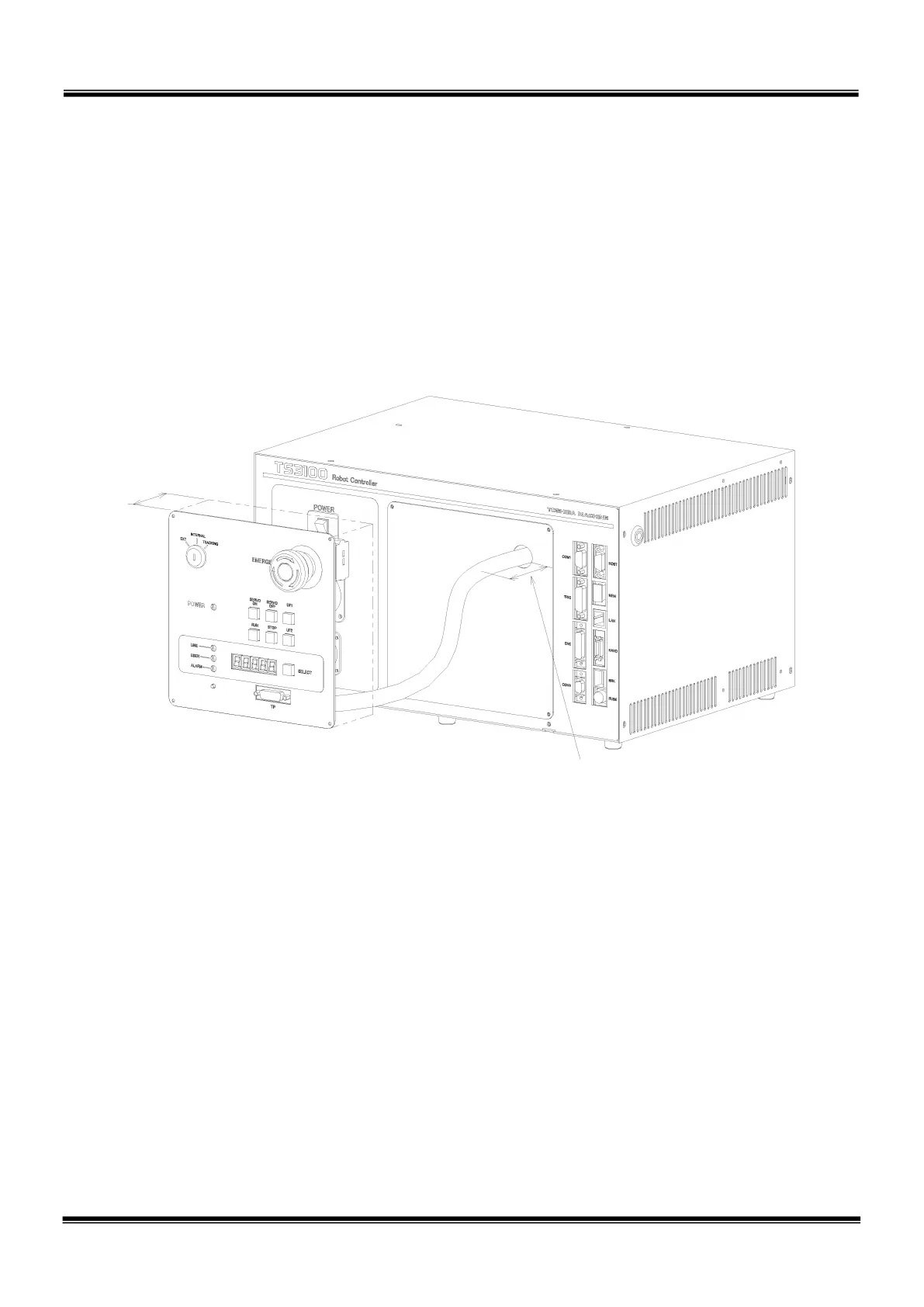

Fig. 4.8 Cable connections of dummy panel and control panel
Without cover: 50 mm or more
With cover: 60 mm or more
80 mm or more from dummy panel
STE 85305
