TRANSPORTATION AND INSTALLATION MANUAL
4.3.4 Mounting Dummy Panel on Controller
When the control panel has been disengaged from the controller, mount a dummy
panel on the place where the control panel was set before, as shown in Fig. 4.7. The
dummy panel, set parts, etc. are provided optionally.
a) Connect the cable connector which was disconnected when separating the
controller from the control panel, to the rear side of the dummy panel, then screw
both ends of the connector. When mounting the connector, use the cross truss
screws (ø3×6, ZN3–B).
b) Screw the dummy panel into the controller.

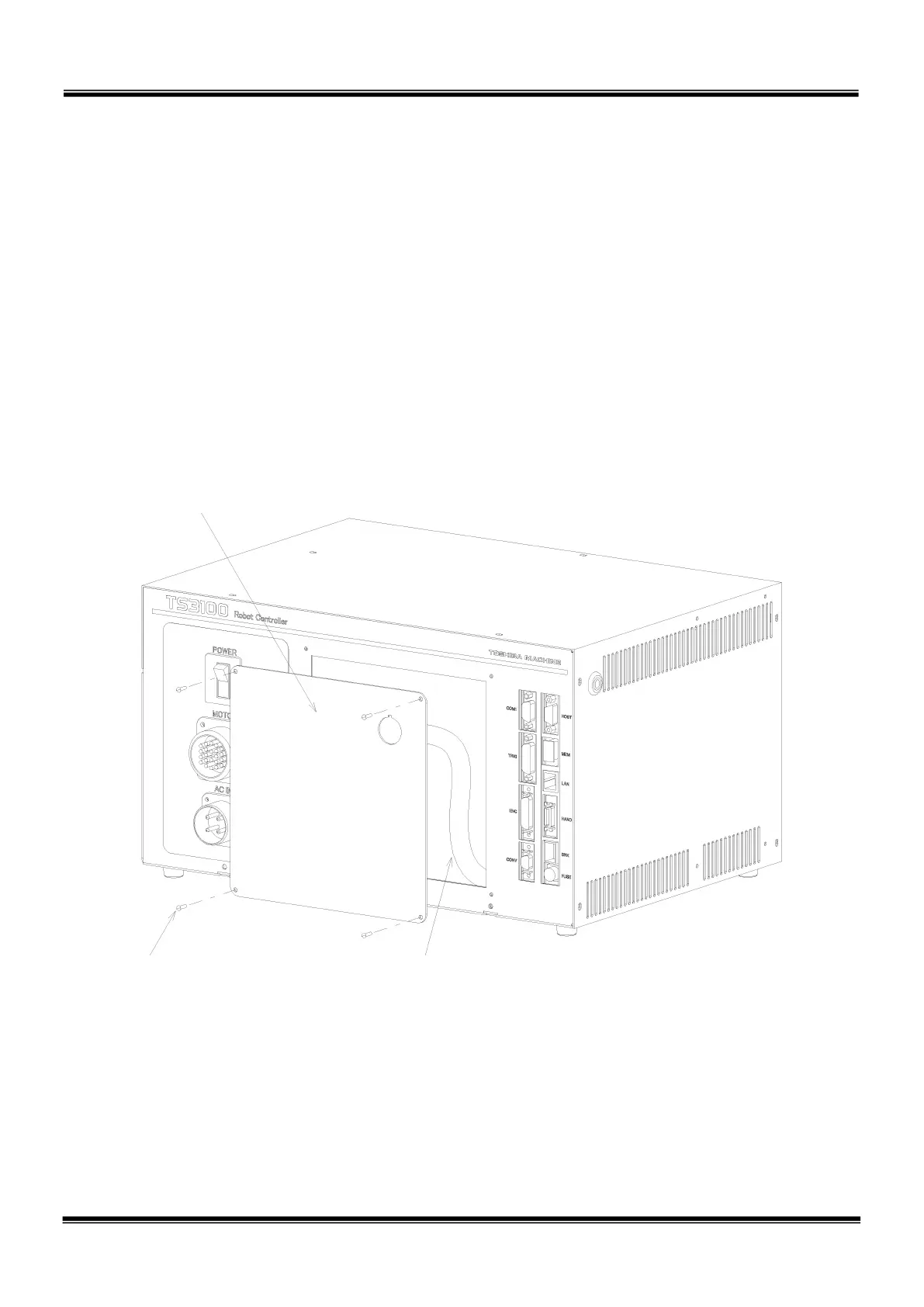

Fig. 4.7 Mounting dummy panel
STE 85305
– 46 –
