Toshiba TH650A - Examples of Connector Terminal Arrangement

TRANSPORTATION AND INSTALLATION MANUAL

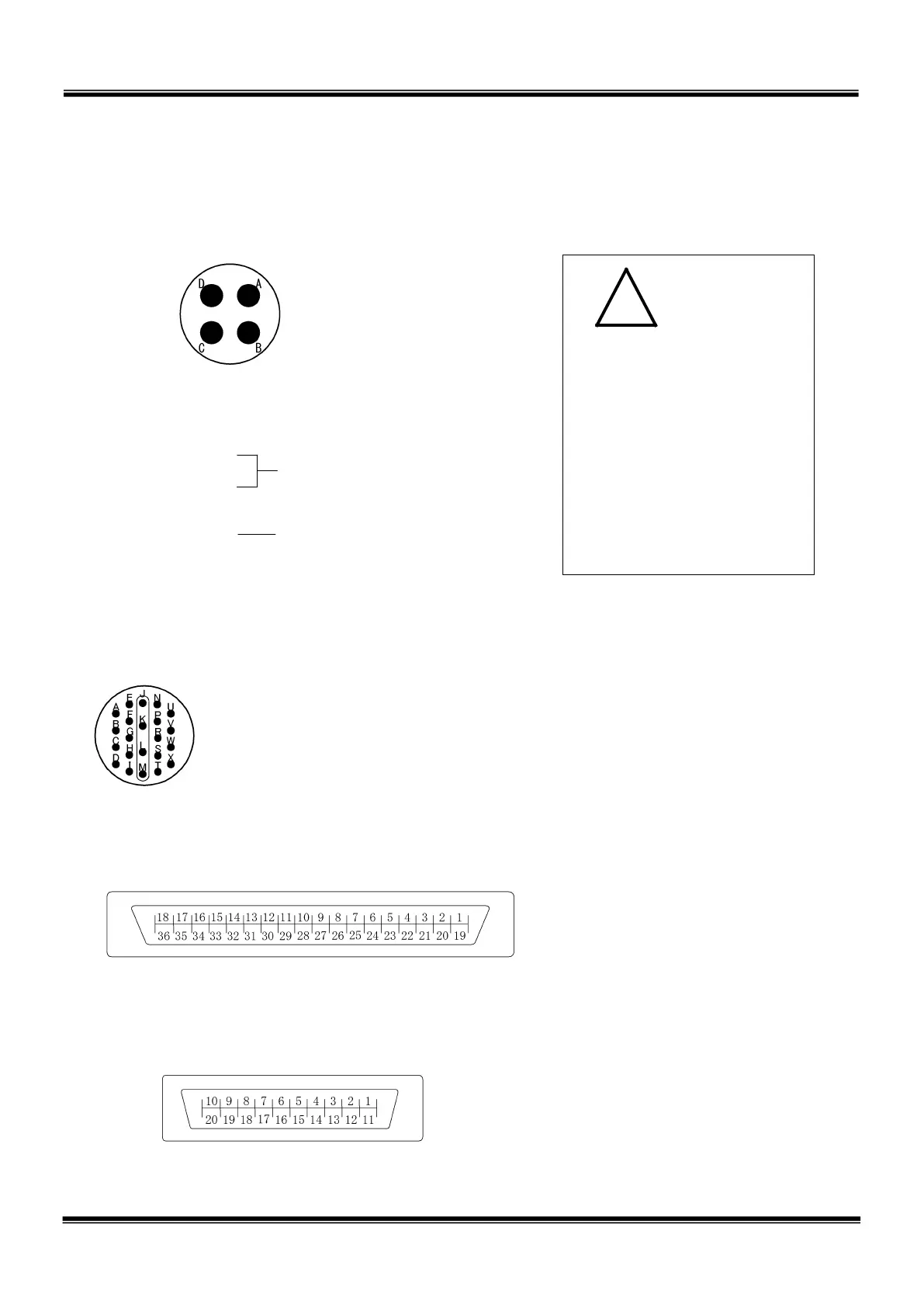

4.1.7 Examples of Connector Terminal Arrangement
a) Power cable connector ACIN
Connects to controller.
Type:
JL04HV-2E22-2
2PE-B
Manufacturer:
Japan Aviation
Electronics Industry
! DANGER
• Completely connect the
grounding cable.
Otherwise, an electric
shock or fire may be
caused if a fault or
electric leak occurred.
Or mis-operation may be
caused by noise.
Single phase, AC 200 ~ 240
V, 50/60 Hz
Grounding
(JIS Class D or higher)
b) Motor cable connector MOTOR
Connects to controller.
Type: JL04V–2A28–11SE
Manufacturer: Japan Aviation Electronics Industry
c) Encoder cable connector ENC
Connects to controller.
Type: 52986-3659
Manufacturer: MOLEX
d) Robot control signal cable connector HAND
Connects to controller.
Type: 52986-2079
Manufacturer: MOLEX
A
B
C
D
STE 85305
– 39 –
