4. Wiring of DPCS
91
4. Wiring of DPCS
Wiring of Ethernet Cables
Connect Ethernet cables to transmit data among DPCS, OIS-DS51, and SVR-DS51.

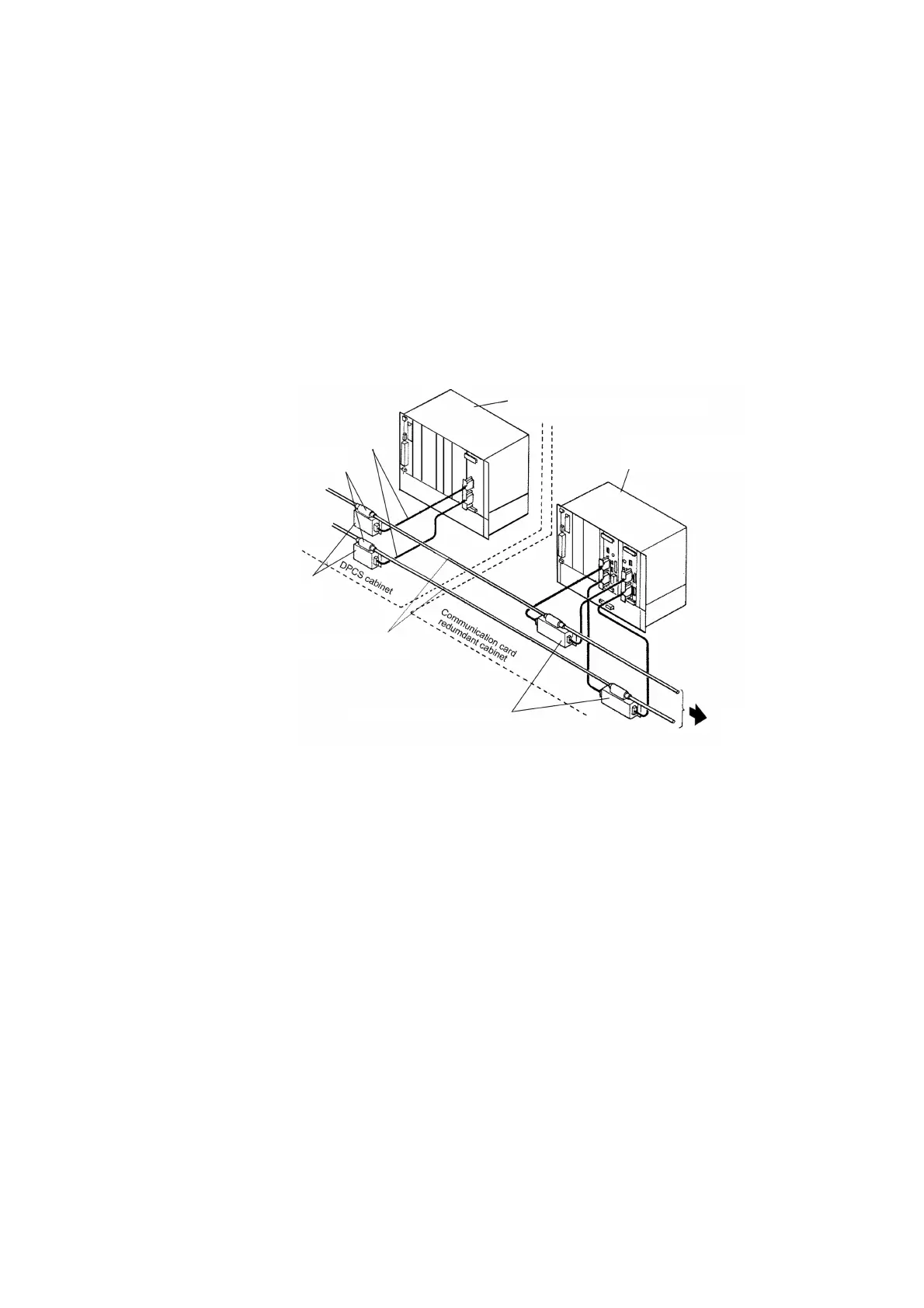

The figure below indicates an example of wiring of Ethernet communication lines (where
10BASE5 is used).
Communication card
redundant DPCS main unit
10BASEE coaxial cable
To DPCS or
OIS-DS
AUI cable
DPCS main unit chassis
Terminator
Transceiver
Multi-port transceiver
Figure 4.1 Wiring of Ethernet Communication Lines
z
Precautions for Ethernet communication line wiring
When you wire Ethernet cables, be careful of the following.
Connection types of items to be used
Figure 4.2 is an example of connection of items that comprise an Ethernet communication
system. The D-sub connector for each DPCS main unit must be secured with a cable cramp.
