5. Network Configuration of Ethernet
105
z

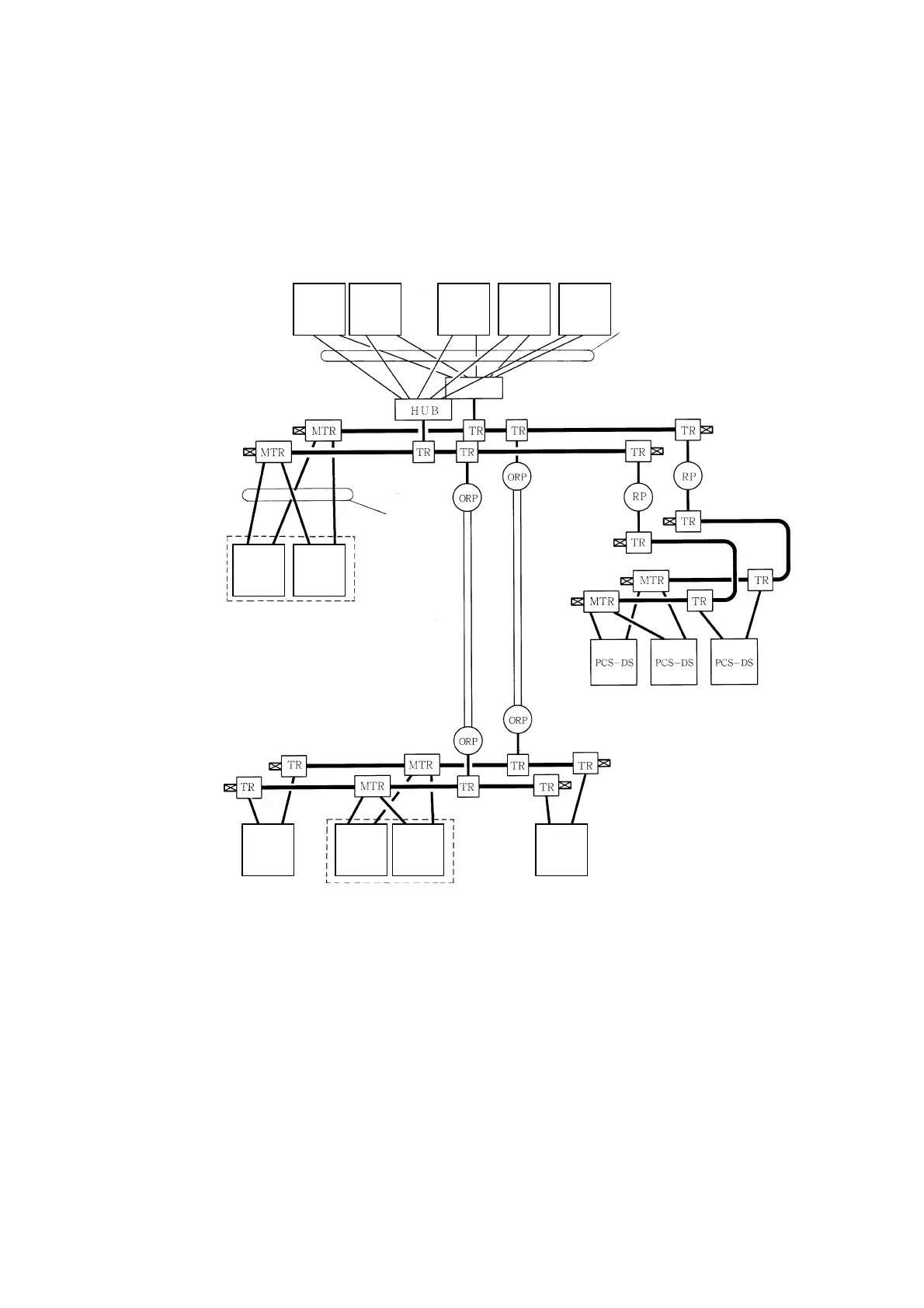

Example of TOSDIC-CIE DS System Configuration
The following is an example of the network configuration for the TOSDIC-CIE DS system.
SVR-DS
Primary
10BASE-T [twisted pair cable]
(Maximum of 100m) Link segment
10BASE5
[coaxial cable]
(Maximum of 500m)
Cable segment
Terminator
10BASE5
[AUI cable]
(Maximum of 15 m)
FOIRL [optical fiber]
(Maximum of 1000m) Link segment
TR : Transceiver
MTR : Multi-port transceiver
RP : Electric repeater
ORP : Optical repeater
HUB : Hub
SVR-DS
Secondary
OIS-DS OIS-DS OIS-DS
PCS-DS
Primary
PCS -DS
Secondary
10BASE5
[coaxial cable]
(Maximum of 500m)
Cable segment
10BASE5
[coaxial cable]
(Maximum of 500m)
Cable segment
PCS-DS
Primary
PCS -DS
Secondary
PCS-DS PCS-DS
Figure 5.4 Example of TOSDIC-CIE DS System Configuration
