1. System Configuration
13
z
PCS-DS Cabinet Panel-to-Panel Linking Procedure
Normally the PCS-DS cabinet is provided with side plates, but when panel-to-panel linking is
done, there is no side plates between the cabinets.
1)
The cabinets are linked using the linking bolts in the following procedure.

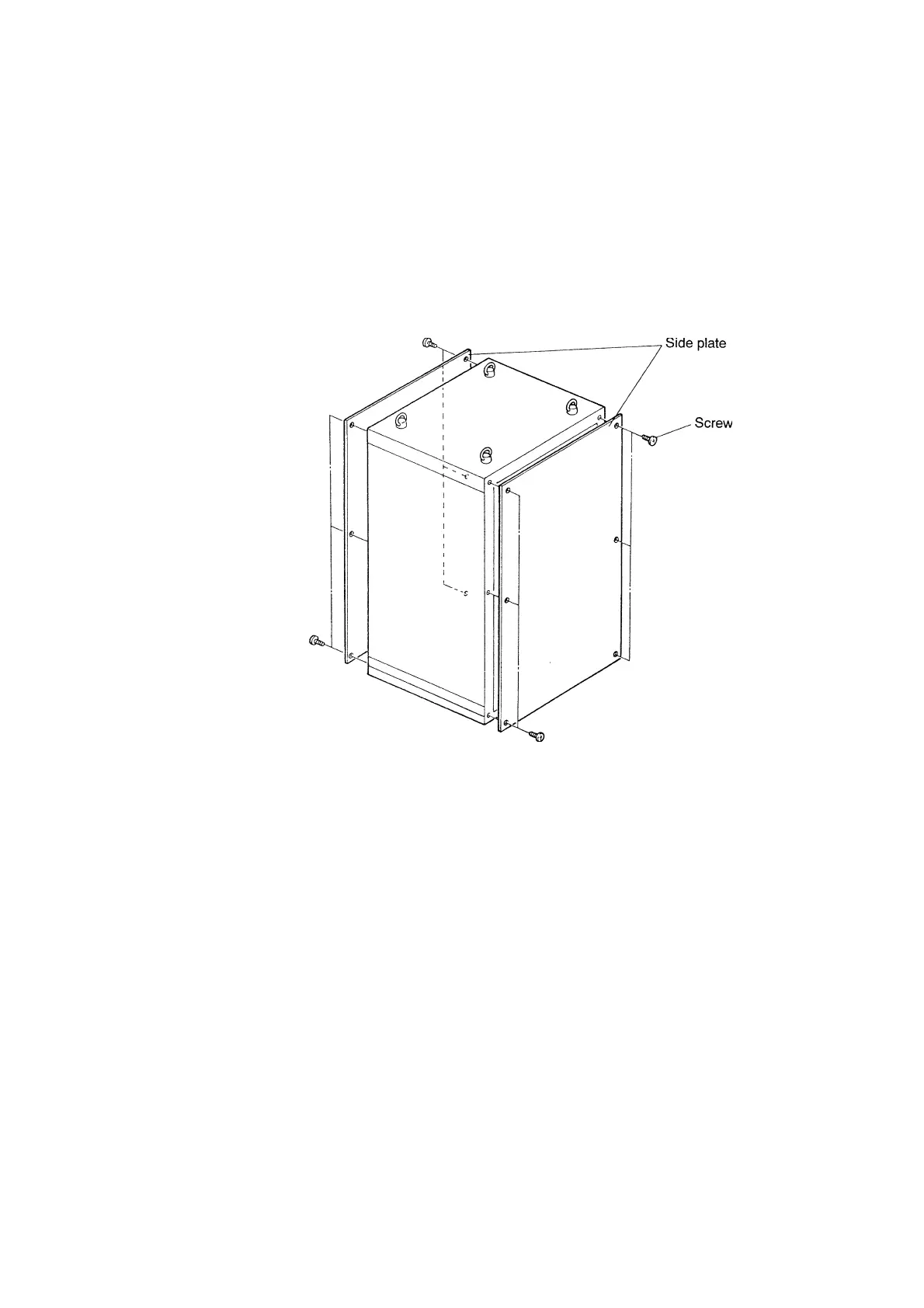

Figure 1.9 Removal of Side Plates of Cabinet
