2. Wiring of PCS-DS51
17
2. Wiring of PCS-DS51
This chapter describes the wiring of the PDS-DS51’s electric system and signal system such as
Ethernet control LAN, intelligent I/O, and P5 series parallel PI/O.
Wiring of Power Supply Cable
For the power supply of the main unit, intelligent I/O, and P5 series parallel PI/O, AC100V
external power is supplied through the receiving/distributing unit. This power supply is
distributed to the main unit and P5 series parallel PI/O in AC100V and to the intelligent I/O
converted to DC.
Power supply card Ethernet tracking card
Main unit
Power supply module
Main processor card
Bus IF module
PI/O module
Healthy
contact
output
Parallel PI/O
base unit
To cabinet
fan
Communication
base unit
Receiving/
distributing
unit
To main
distribution
board
I/O system power
supply unit
External power supply unit Terminal board unit
1)
2)
3)
3)
4)
4)
5)
No. Cable Name
1) Fan power supply cable
2) Main unit power supply
cable
3) Power supply cable
4) PI/O power supply cable
5) Power supply cable
(Note) The I/O system power supply unit (DC24V)
is for the communication base unit only.
Isolate it from other external power supply
units (do not connect the I/O system power
common 0V and external power common
0V).
Don’t ground the I/O system power
common 0V.

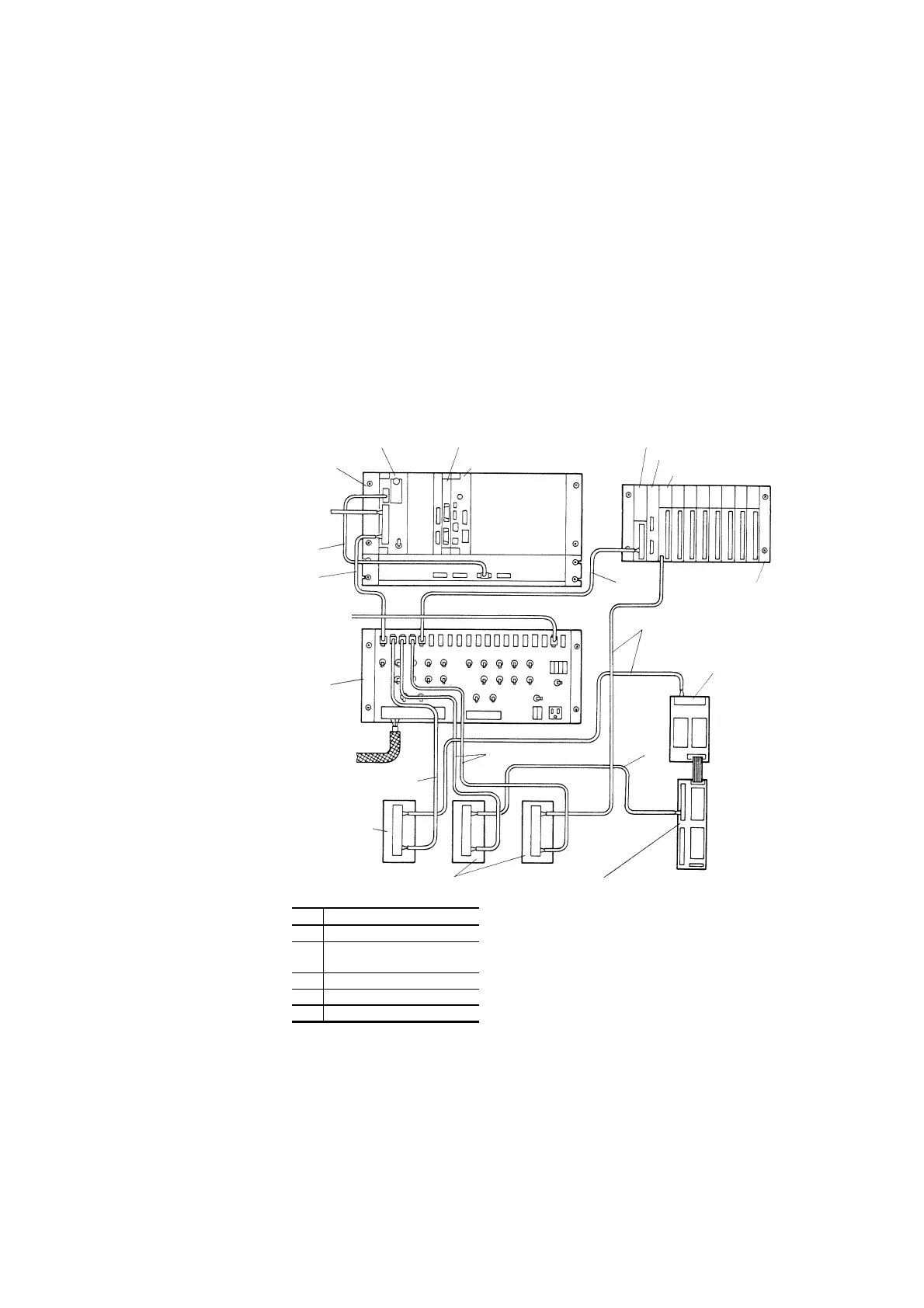

Figure 2.1 Wiring of Electric System
