2. Wiring of PCS-DS51
26
Wiring of Ethernet cables
Connect the Ethernet cables for data transmission between PCS-DS51 and OIS-DS51 or SVR-
DS51. In the PCS-DS51 cabinet, connect the main processor unit and transceiver with the AUI
cable (transceiver cable). Use 10BASE5 coaxial cables (yellow cables) to other cabinets outside
the PCS-DS51 cabinet.
AUI cable
PCS-DS main
unit chassis
Redundant PCS-DS
main unit chassis
Terminator
PCS-DS cabinet
PCS-DS redundant
cabinet
Transceiver
10BASE5 coaxial cable
To PCS-DS
or OIS-DS
Multi-port transceiver

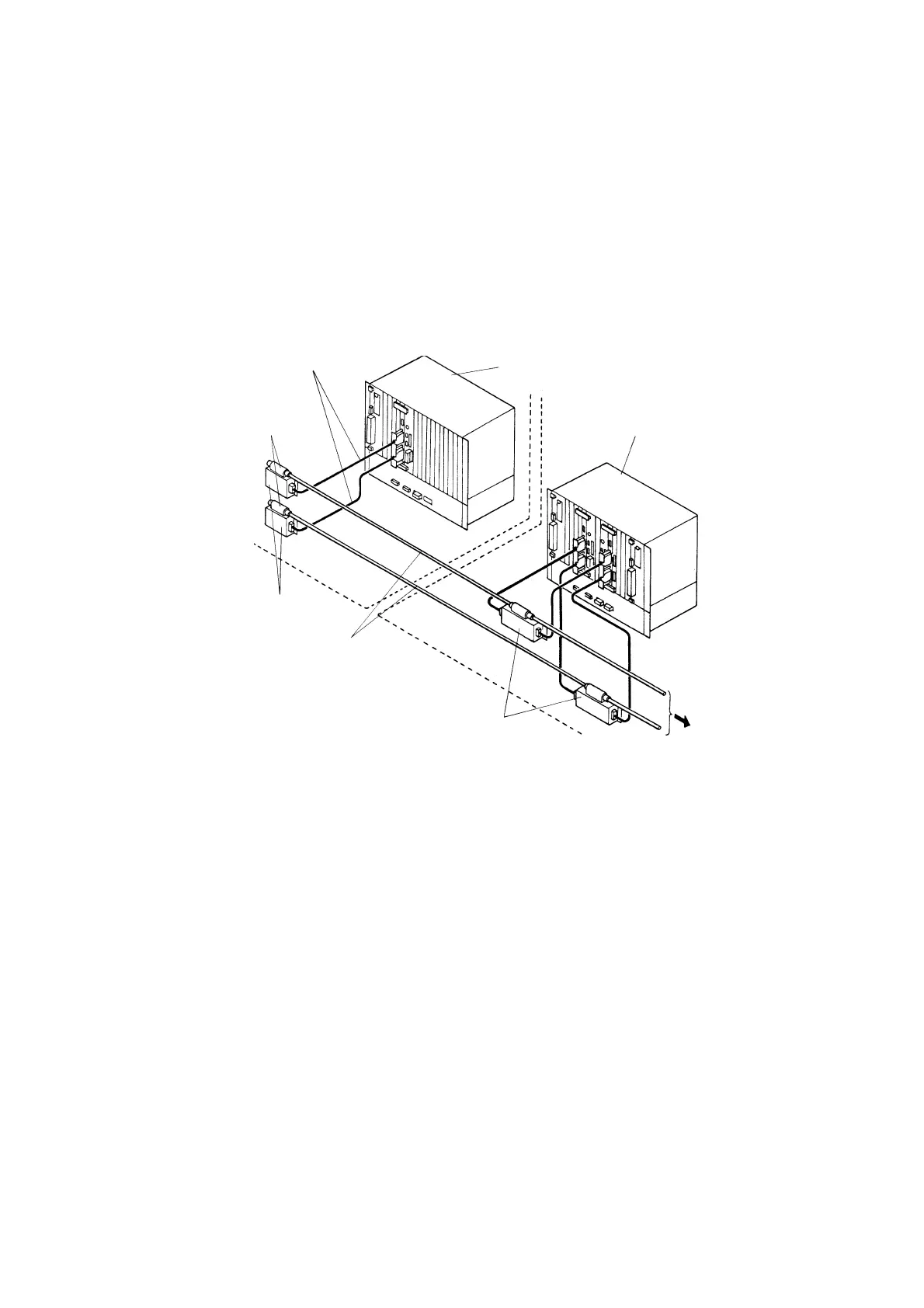

Figure 2.9 Wiring of Ethernet Transmission Lines
