2. Wiring of PCS-DS51
46
6)

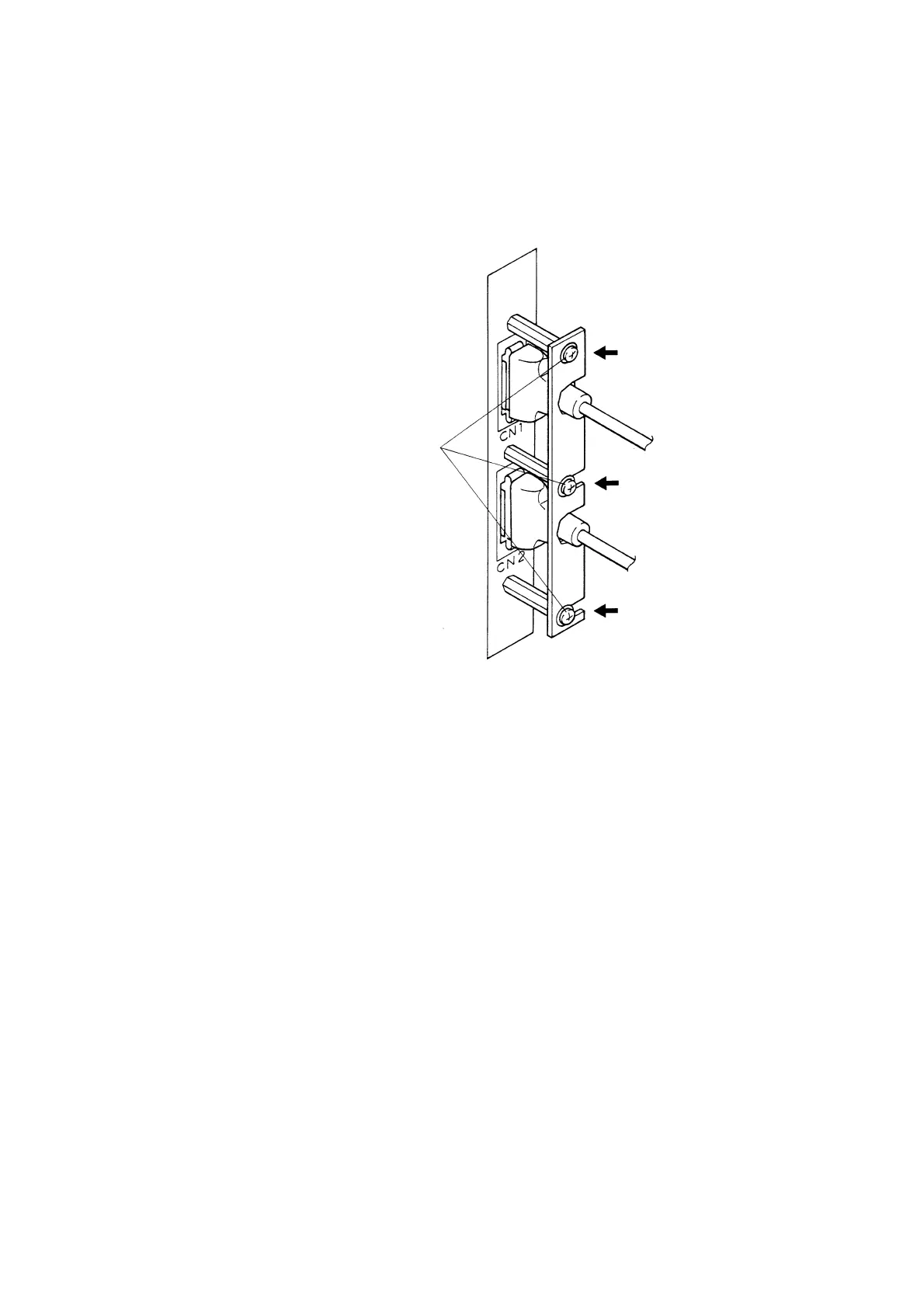

After the cable clamp is rotated and the cable is fixed, loosen the screws.
Loosen the screws
(M3 x 3).
Figure 2.28 Fixing with Cable Clamp
Removing cables
To remove the Ethernet cable (AUI cable) from the FETH1 board, follow the procedure for
connection in the reversed order.
1)
Loosen the screws (M3 × 3) and rotate the cable clamp.
2)
Push up the slide lock of CN1 to unlock it and remove the A system AUI cable.
3)
Similarly for the B system AUI cable, push up the slide lock of CN2 to unlock it and remove
the cable.
4)
Rotate the cable clamp to the original position and loosen the screws (M3 × 3).
To Next Page
