2-4. Using other driving systems

4RUNNER_U

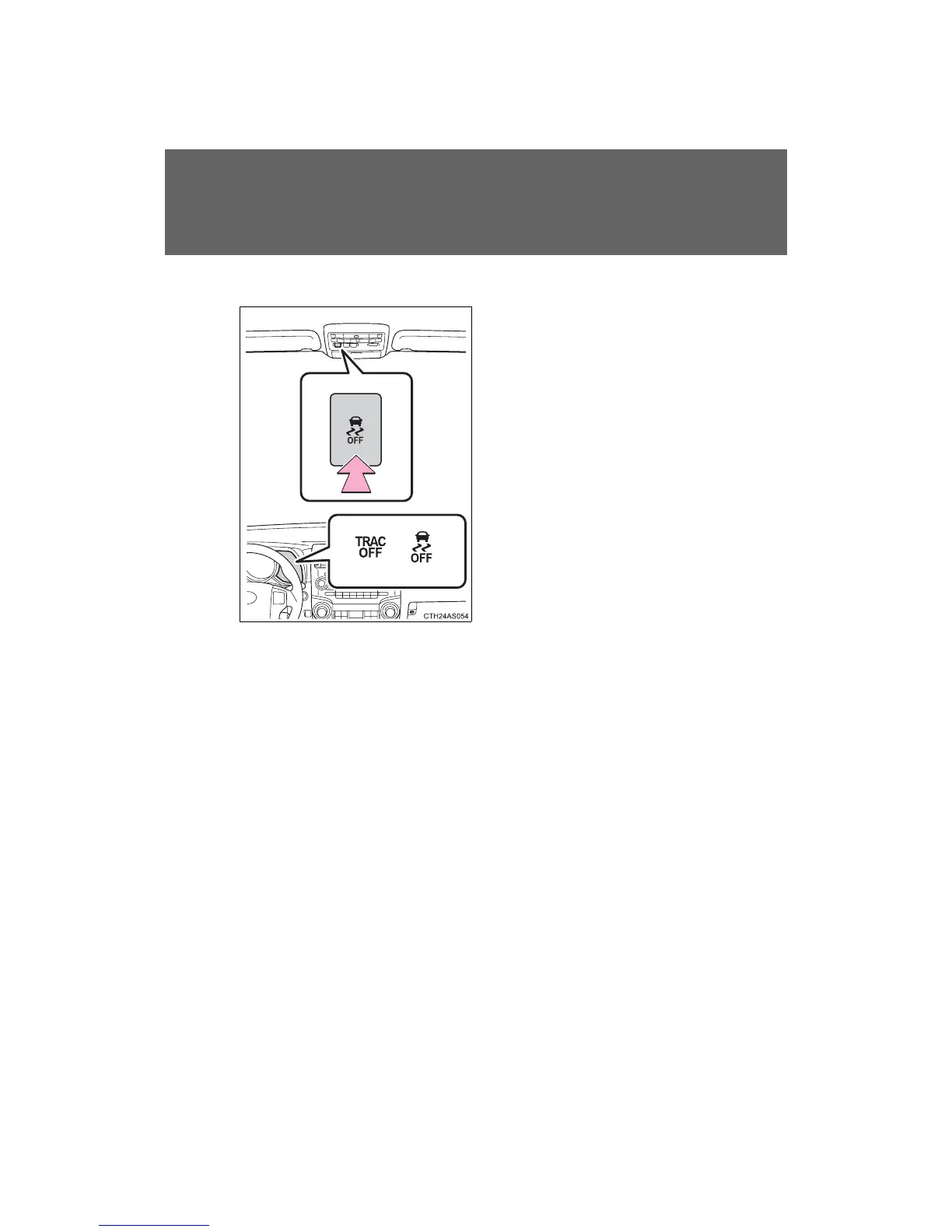

n Turning off both TRAC and VSC systems

To turn the TRAC and VSC sys-

tems off, press and hold the but-

ton for more than 3 seconds

while the vehicle is stopped.

The “TRAC OFF” and VSC off

indicators will come on.

Press the button again to turn the

systems back on.
