5

When trouble arises

583

5-2. Steps to take in an emergency

4RUNNER_U

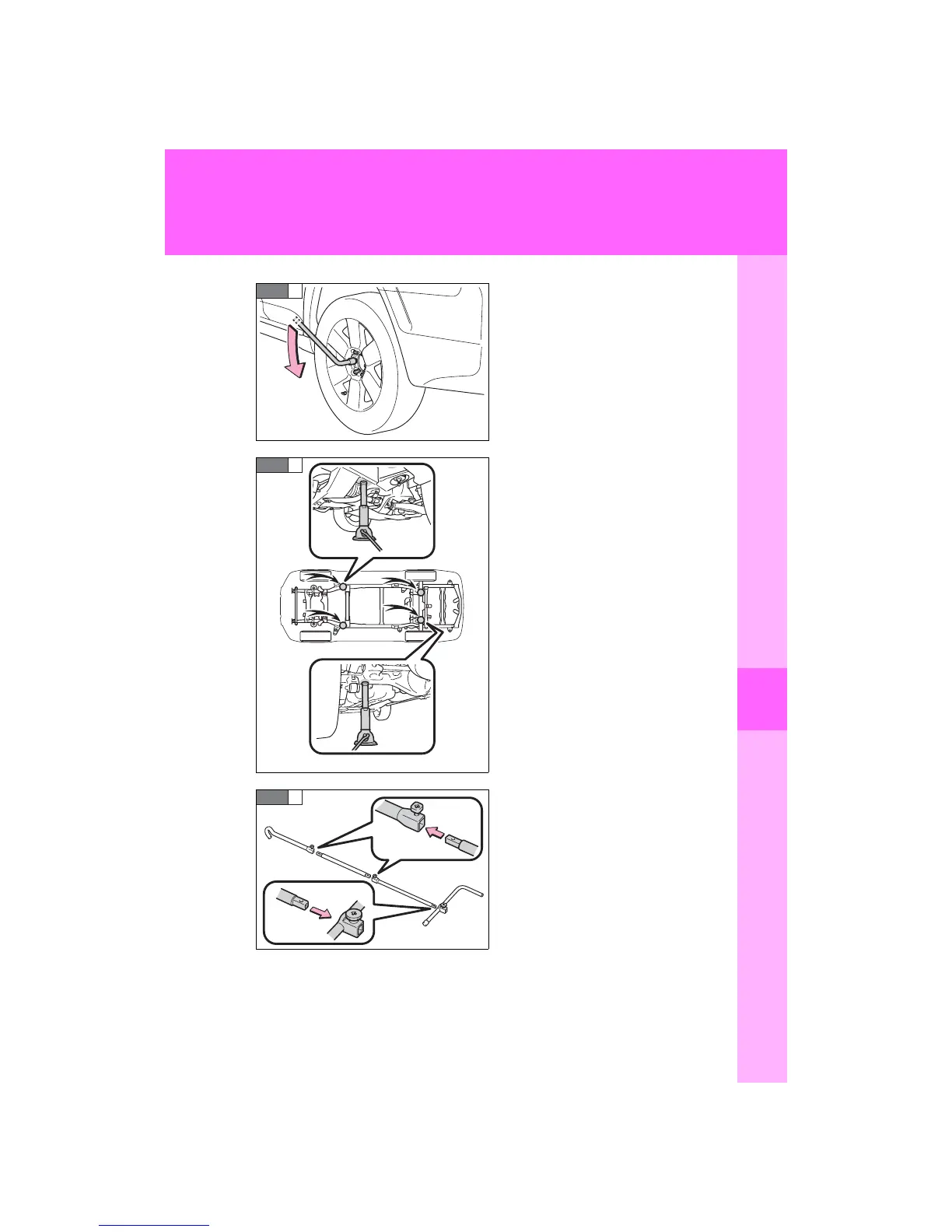

Slightly loosen the wheel nuts

(one turn).

Position the jack at the jack

points as shown.

Front - Under the chassis frame

side rail

Rear - Under the rear axle hous-

ing

Assemble the jack handle exten-

sion as shown. Be sure to tighten

each bolt securely.

CTH52AS012

STEP

3

CTH52AS039

STEP

4

CTH52AS014

STEP

5
