Port Configuration
Displaying Connection Status
You can use the Port Information or Trunk Information pages to display the current
connection status, including link state, speed/duplex mode, flow control, and
auto-negotiation.
Field Attributes (Web)
• Name – Interface label.
• Type – Indicates the port type. (100BASE-TX, 1000BASE-T, or SFP)
• Admin Status – Shows if the interface is enabled or disabled.
• Oper Status – Indicates if the link is Up or Down.
• Speed Duplex Status – Shows the current speed and duplex mode.
(Auto, or fixed choice)
• Flow Control Status – Indicates the type of flow control currently in use.
(IEEE 802.3x, Back-Pressure or None)
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
• Media Type
5
– Media type used for the combo ports. (Options: Coppper-Forced,
SFP-Forced, or SFP-Preferred-Auto; Default: SFP-Preferred-Auto)
• Trunk Member
6
– Shows if port is a trunk member.
• Creation
7
– Shows if a trunk is manually configured or dynamically set via LACP.
Web – Click Port, Port Information or Trunk Information.

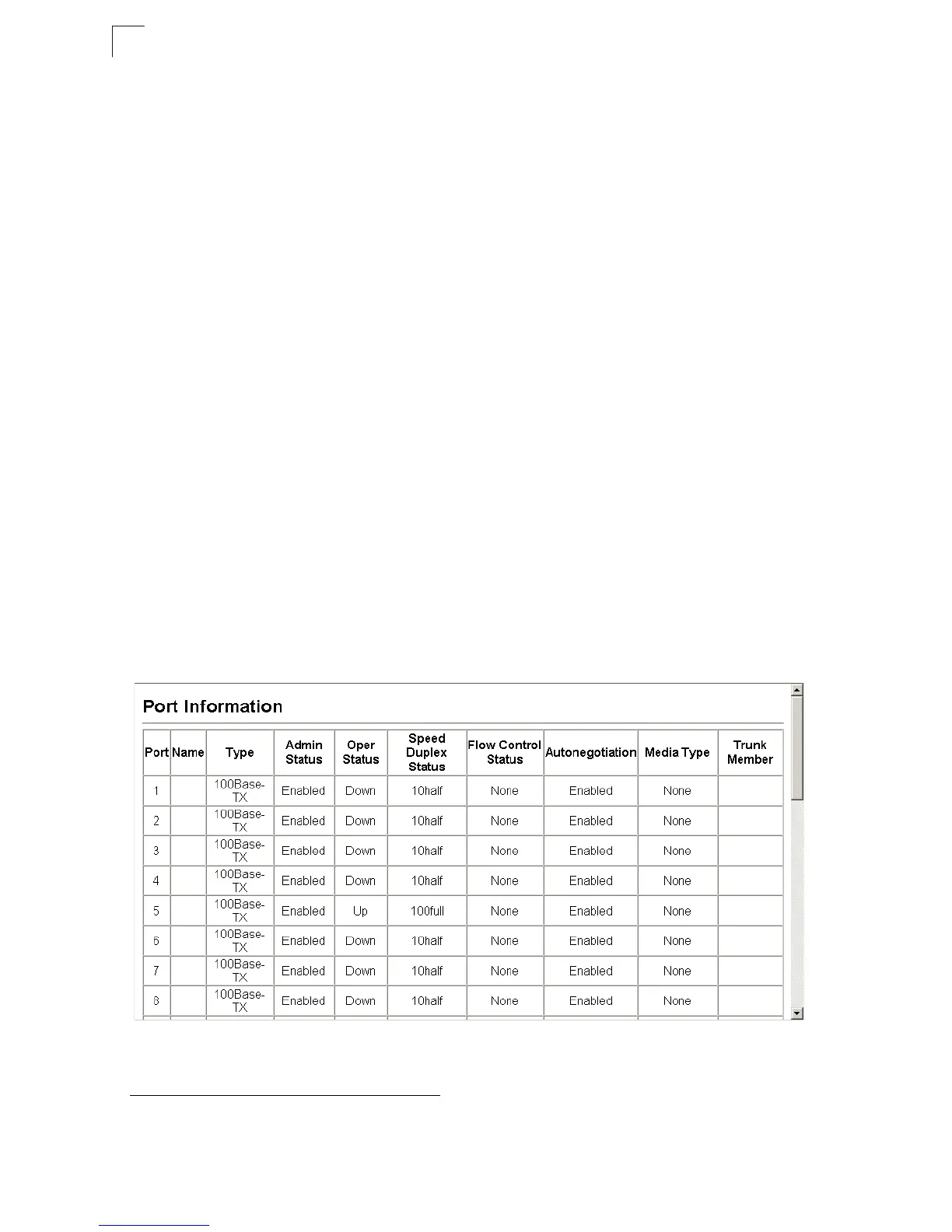

Figure 3-72 Displaying Port/Trunk Information
5. Port information only.
6. Port information only.
7. Trunk information only.
