Configuring the Switch
3-182
3
• Frame Type – Choose either Ethernet, RFC 1042, or LLC Other as the frame type
used by this protocol.
• Protocol Type – Specifies the protocol type to match. The available options are
IP, ARP, and RARP. If LLC Other is chosen for the Frame Type, the only available
Protocol Type is IPX Raw
Note:
Traffic which matches IP Protocol Ethernet Frames is mapped to the VLAN
(VLAN 1) that has been configured with the switch’s administrative IP. IP Protocol
Ethernet traffic must not be mapped to another VLAN or you will lose
administrative network connectivity to the switch. If lost in this manner, network
access can be regained by removing the offending Protocol VLAN rule via the
console. Alternately, the switch can be power-cycled, however all unsaved
configuration changes will be lost.
Web – Click VLAN, Protocol VLAN, Configuration.

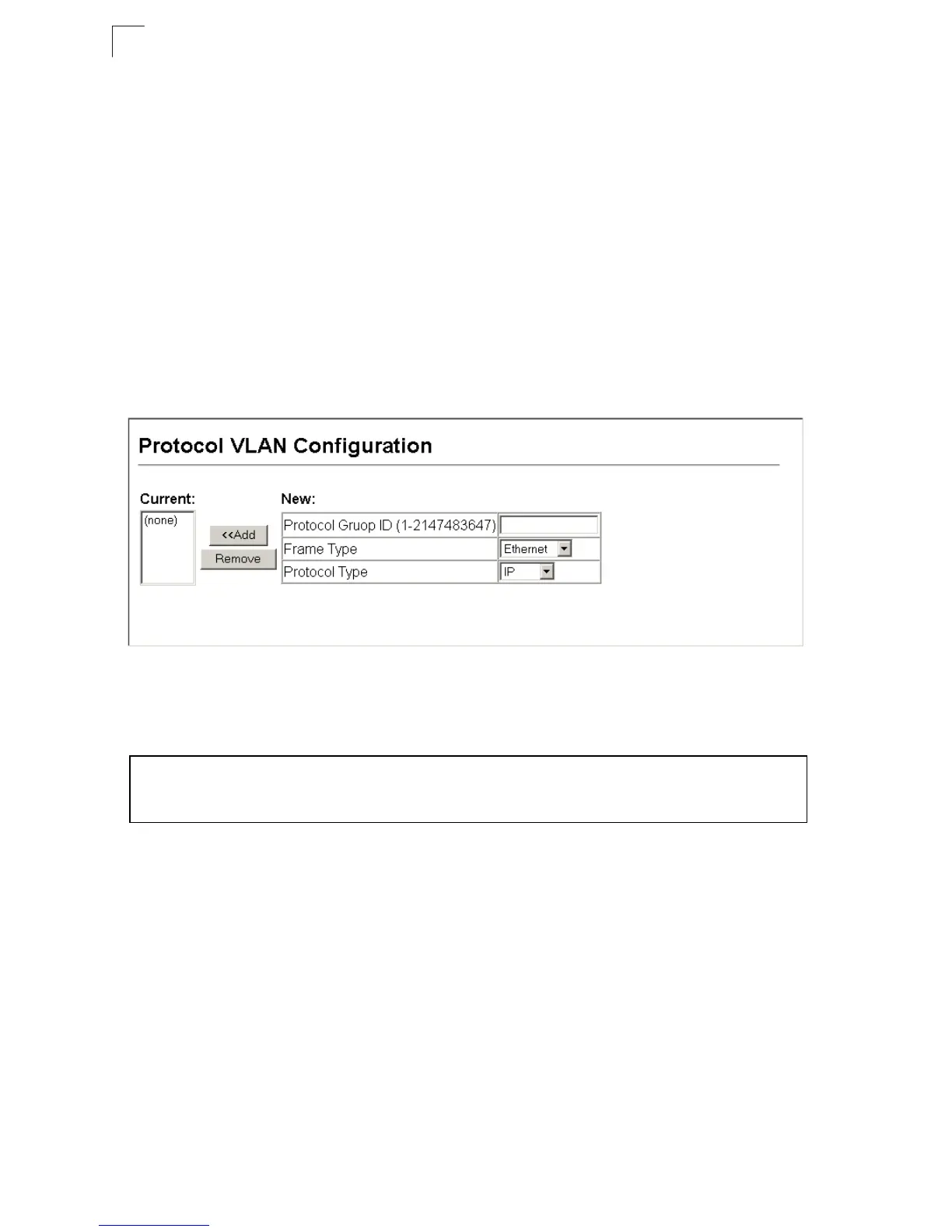

Figure 3-109 Protocol VLAN Configuration
CLI – This example shows the switch configured with Protocol Group 2 which
matches RFC 1042 IP traffic.
Protocol VLAN System Configuration
Use the Protocol VLAN System Configuration menu to map a Protocol VLAN Group
to a VLAN.
Command Attributes
• Protocol Group ID – Protocol Group ID assigned to the Protocol VLAN Group.
(Range: 1-2147483647)
• VLAN ID – VLAN to which matching protocol traffic is forwarded. (Range: 1-4092)
Console(config)#protocol-vlan protocol group 2 add frame-type
rfc-1042 protocol-type ip 4-261
Console(config)#
