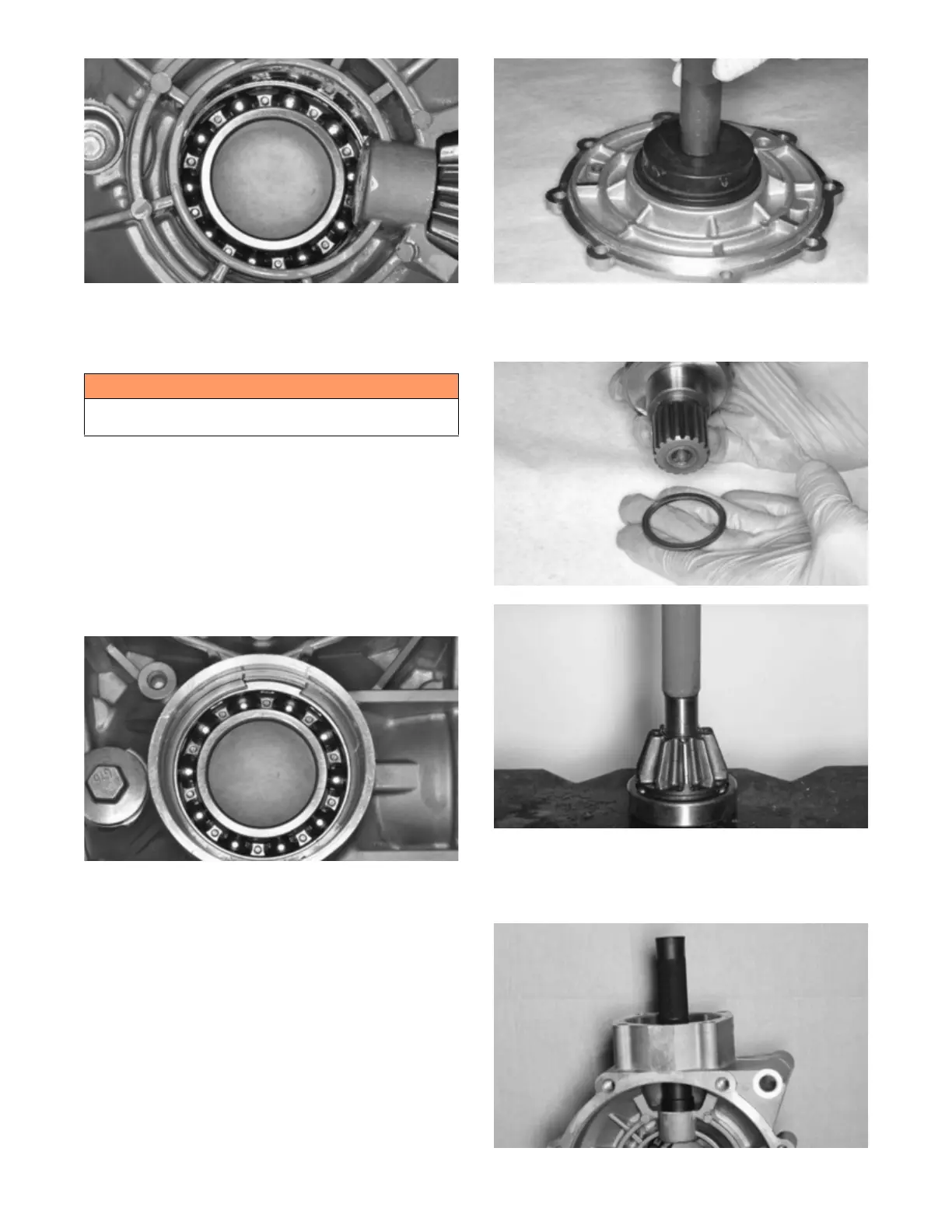

CLEANING AND INSPECTING
1. Wash all parts in parts cleaning solvent and dry with
compressed air.
2. Clean all gasket material and sealant from mating
surfaces.
3. Inspect bearings, shafts, and housing for excessive
wear, cracks, or discoloration.
ASSEMBLING
1. Using a bearing driver adapter the same size as the
outer race of the case side bearing, drive the bearing
into place, then secure with a new snap ring. Lightly
grease a new seal; then install.
PK257
2. From the inside of the gear case cover, use a bearing
driver adapter the same size as the outside race of the
bearing and install. Lightly grease a new seal and
install.
PK259
3. Place the pinion gear shim into position; then, using
a set of press blocks, press the pinion gear into a new
bearing.
PK256
PK260
4. Drive a new pinion gear needle bearing into the case
using a bearing driver the same size as the outer race
of the bearing; then secure the bearing with the snap
ring.
PK261
! WARNING
Always wear safety glasses when working with com-
pressed air.
