FAULT TESTING
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
10002660
The “Parameters” menu selection does not have a controller program option.
The default parameter is 0.
“Reset Controller” is the view of the reset controller function. Normal values
are 0 or 1.
The “Monitor” menu selection shows controller functions, inputs, and outputs.
“Solenoid Coil” indicates power to the main solenoid.
“Rear Node Select” shows the rear controller command. It indicates on or off.

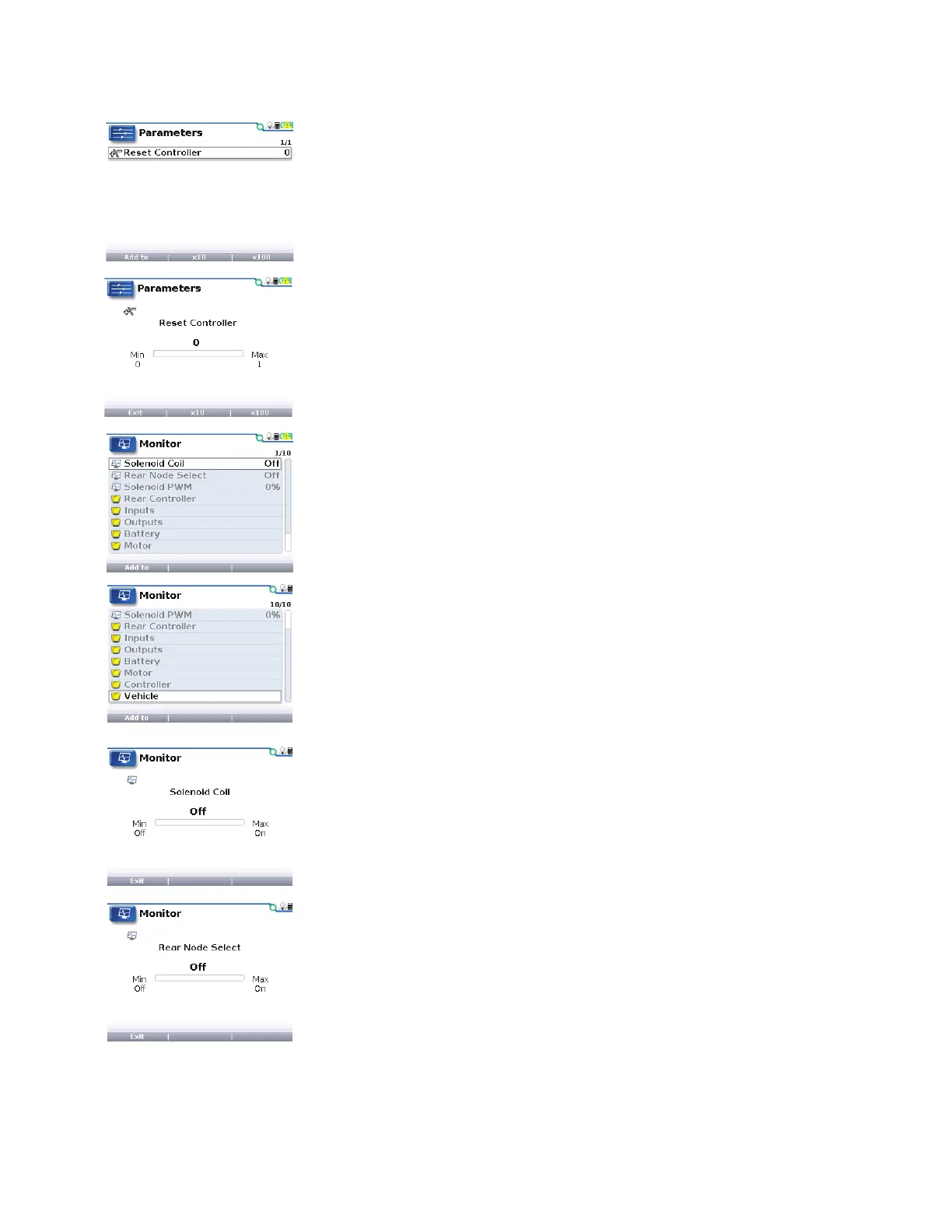

Fig. 8 Handheld Tool Function (Continued)
