Repair and Service Manual
BRAKES
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
10002660
BRAKE PEDAL REMOVAL AND
INSTALLATION
Tool List Qty.
Needle Nose Pliers...................................................... 1
Screwdriver, Flat Head ................................................ 1
Allen Socket, 1/4” ........................................................ 1
Ratchet ........................................................................1
Wrench, 1/2” ................................................................ 1
Socket, 1/2” ................................................................. 1
Torque Wrench, ft. lbs.................................................. 1
1. Disconnect the master cylinder shaft from the brake
pedal (8). (See Master Cylinder Replacement on
page 36)
2. Remove bolt (18), bushings (17), washers (3) and
lock nut (5) (Fig. 6).
Assemble in the reverse order of removal.
Tighten the nut (5) to the torque value specified below.

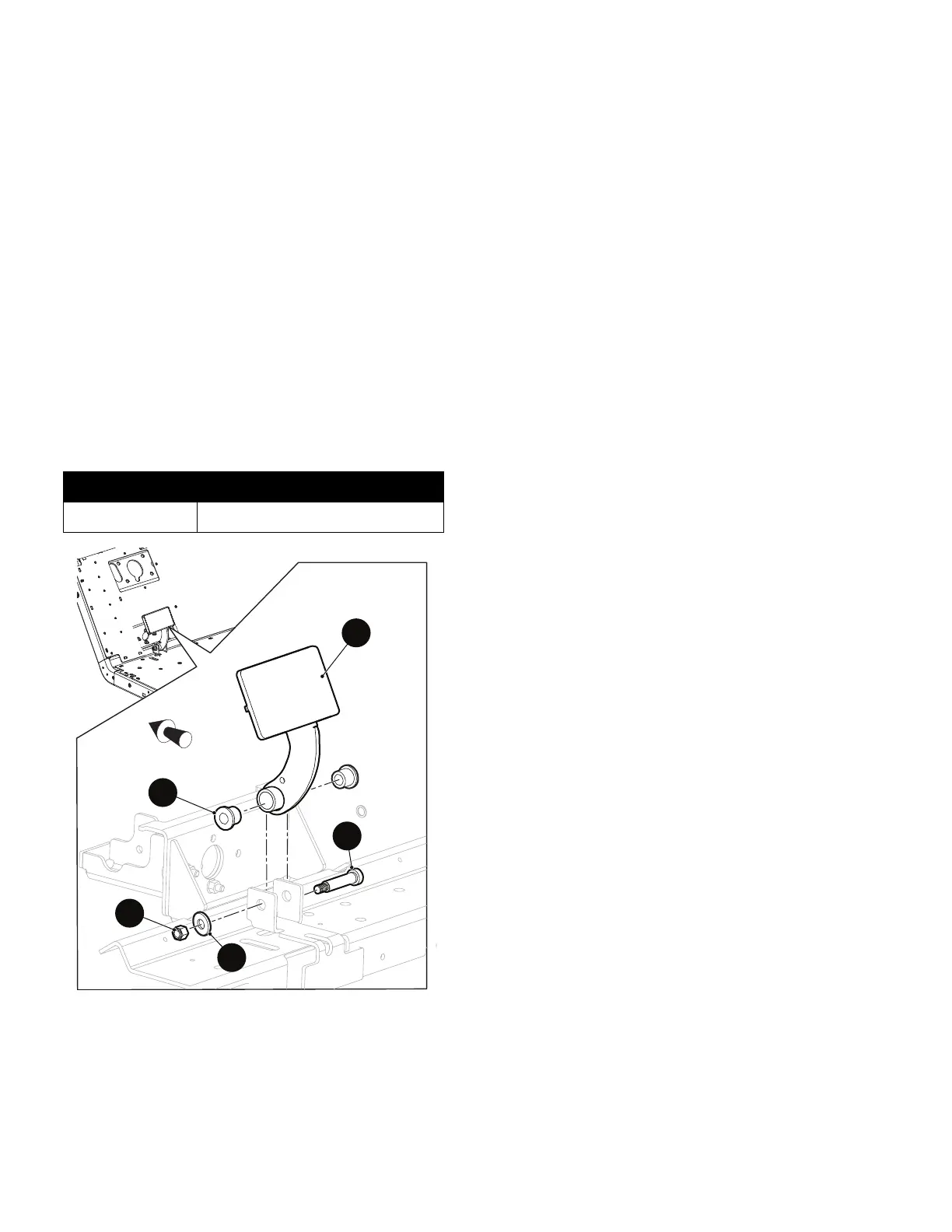

Fig. 6 Brake Pedal Removal
Item Torque Specification
5 18 - 20 in. lbs. (24 - 27 Nm)
