LOWER OPERATOR PROTECTION
SYSTEM
Brush Guard Removal and Installation
Tool List Qty.
Socket, 1/2” ................................................................. 1
Socket, 15mm ............................................................. 1
Ratchet........................................................................ 1
Wrench, 1/2”................................................................ 1
Wrench, 15mm ............................................................ 1
Torque Wrench, ft. lbs. ................................................ 1
1. Remove the bolts (101) and lock nuts (103) from the
brush guard (100) (Ref. Fig. 12).
2. Remove the bolts (104) and lock nuts (105) to
remove the brush guard (100) from the vehicle.
Assemble in the reverse order of removal.
Tighten the nuts to the torque values specified below.

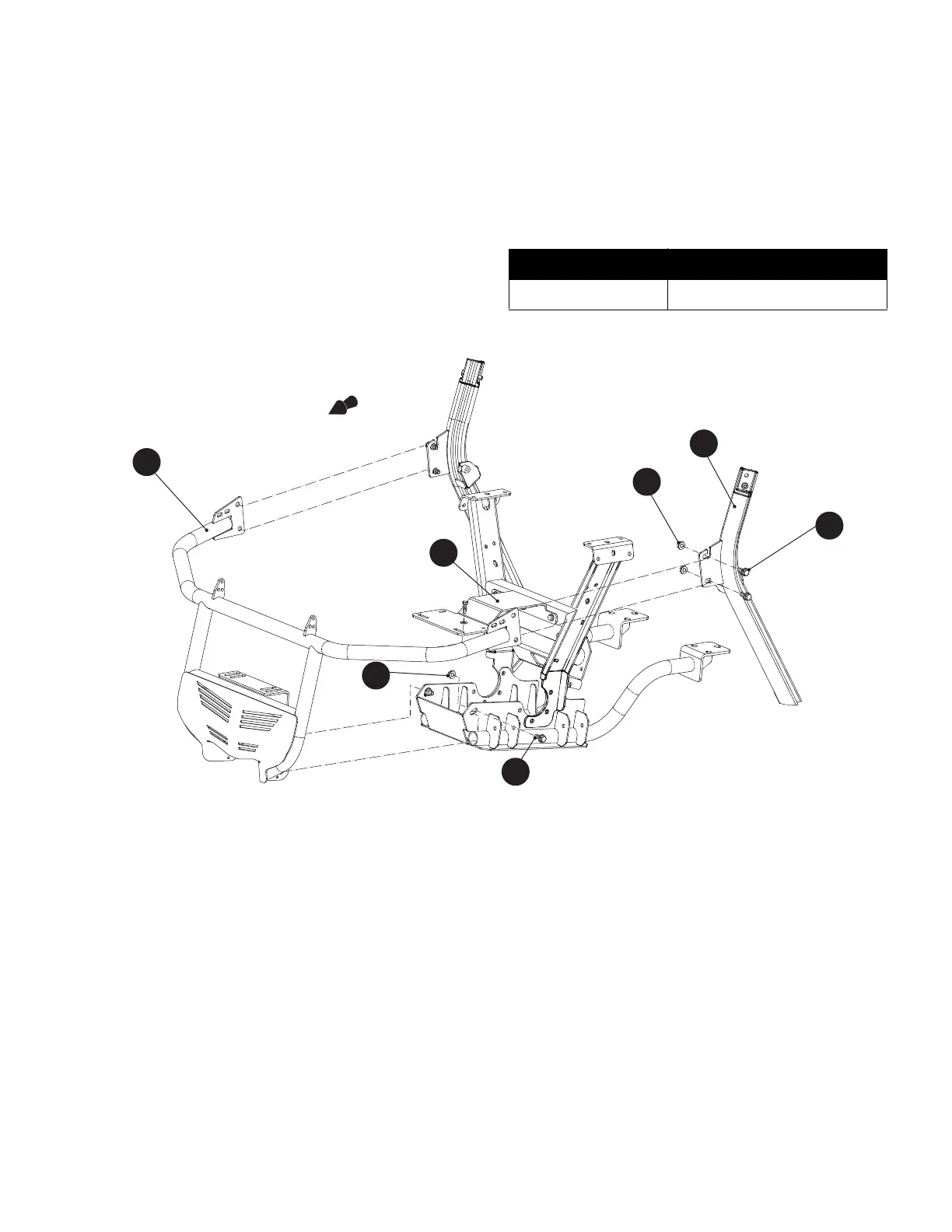

Fig. 12 Brush Guard Removal
Item Torque Specification
103, 105 30 - 33 ft. lbs. (41 - 45 Nm)
101
103
105
104
100
96
110
Front of Vehicle
