Repair and Service Manual
SEATING AND OPS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
10002660

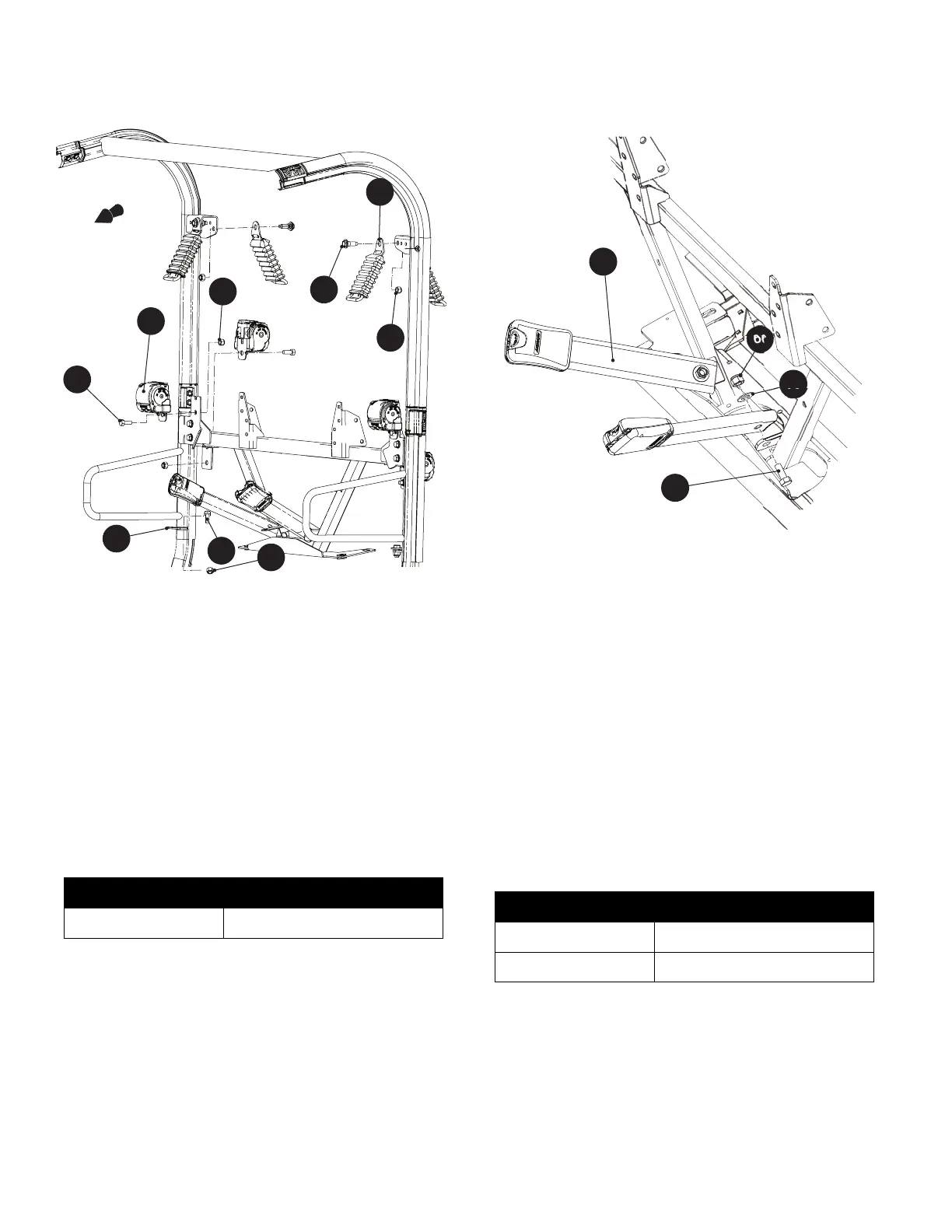

Fig. 8 Seat Belt Assembly
Front Seat Belt Buckle Replacement
Tool List Qty.
Socket, 5/8” ................................................................. 1
Ratchet ........................................................................1
Wrench, 5/8” ................................................................ 1
Torque Wrench, ft. lbs.................................................. 1
Remove the bolts (67), washers (69), and lock nuts (66)
that secure the front seat belt buckle (70) to the OPS
frame (Ref. Fig. 9).
Assemble in the reverse order of removal.
Tighten the nuts to the torque values specified below.
Fig. 9 Front Seat Belt Buckle Removal
Rear Seat Belt Buckle Replacement
Tool List Qty.
Socket, 5/8”..................................................................1
Ratchet ........................................................................1
Wrench, 5/8” ................................................................1
Torque Wrench, ft lbs. ..................................................1
1. Remove bolts (74) and lock nuts (75) from the rear
seat belt bracket (76) to remove the rear seat buckle
(73) (Ref. Fig. 10).
2. To remove the rear seat belt bracket (76), remove
the bolts (77), washers (78), and nuts (79) that
secure the bracket to the frame (Ref. Fig. 10).
Assemble in the reverse order of removal.
Tighten the nuts to the torque values specified below.
Item Torque Specification
66 45 - 55 ft. lbs. (61 - 75 Nm)
50
51
53
54
49
47
46
52
48
Front of Vehicle
Item Torque Specification
75 45 - 55 ft. lbs (61 - 75 Nm)
79 21 - 25 ft. lbs. (28 - 34 Nm)
66
69
70
67
To Next Page
