Repair and Service Manual
BODY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
10002660

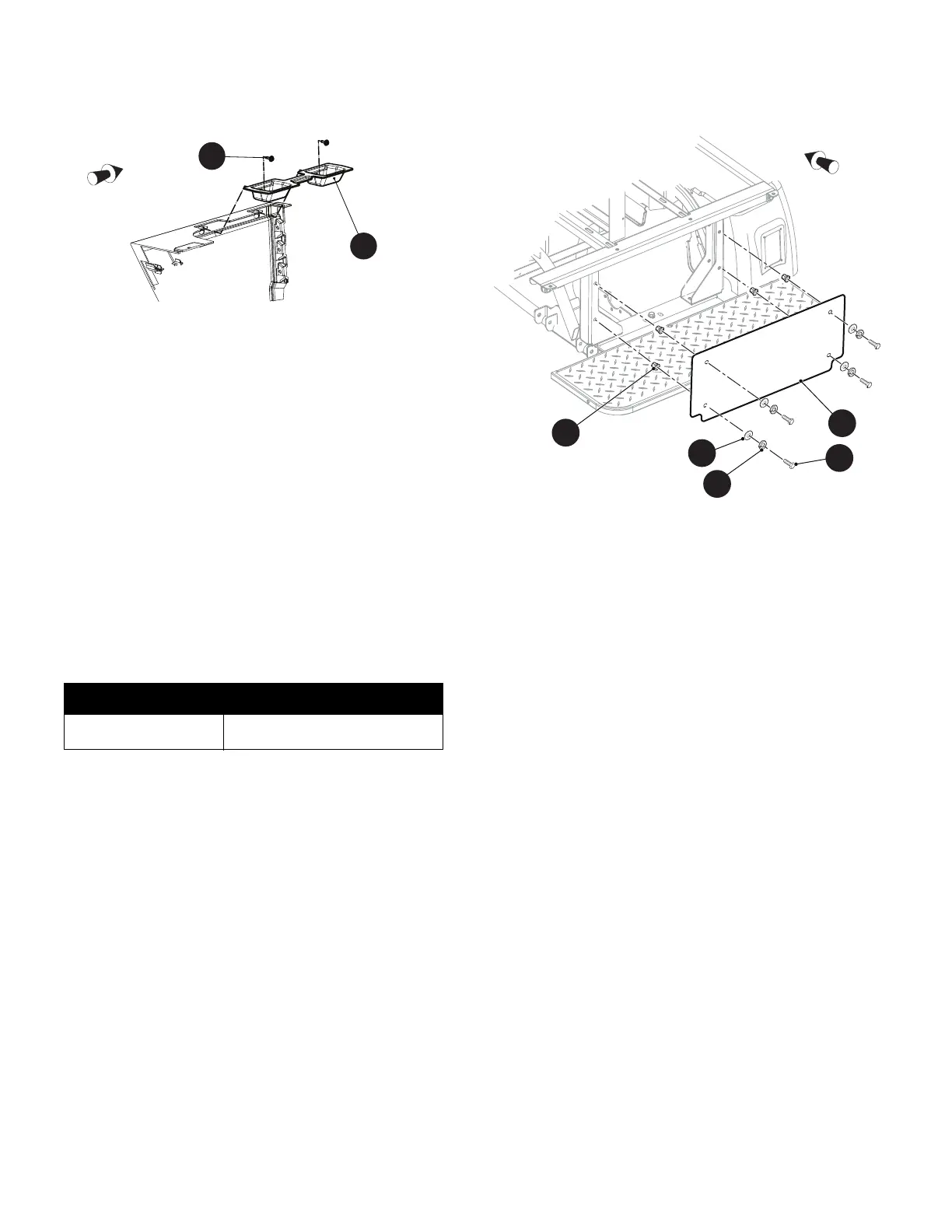

Fig. 12 Seat Wrap Closeout
Rear Closeout Panel Replacement
Tool List Qty.
Ratchet ........................................................................1
Wrench, 7/16” .............................................................. 1
Wrench, 9/16” .............................................................. 1
Torque Wrench, ft. lbs. ................................................ 1
Socket, 7/16” ............................................................... 1
Socket, 9/16” ............................................................... 1
Torque Wench, ft. lbs...................................................1
1. Remove the bolts (53), lock washers (52), washers
(54) and nuts (51) securing rear closeout panel (50)
to chassis frame (Ref. Fig. 13).
2. Remove the rear closeout panel (50).
Assemble in the reverse order of removal. Tighten the
bolts (53) to torque value specified below.
Fig. 13 Closeout Panel
Item Torque Specification
53
21 - 25 ft. lbs. (28 - 34 Nm)
48
44
Front of Vehicle
50
53
54
52
51
Front of Vehicle
