Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
31
Repair and Service Manual
10002660
Winch Assembly

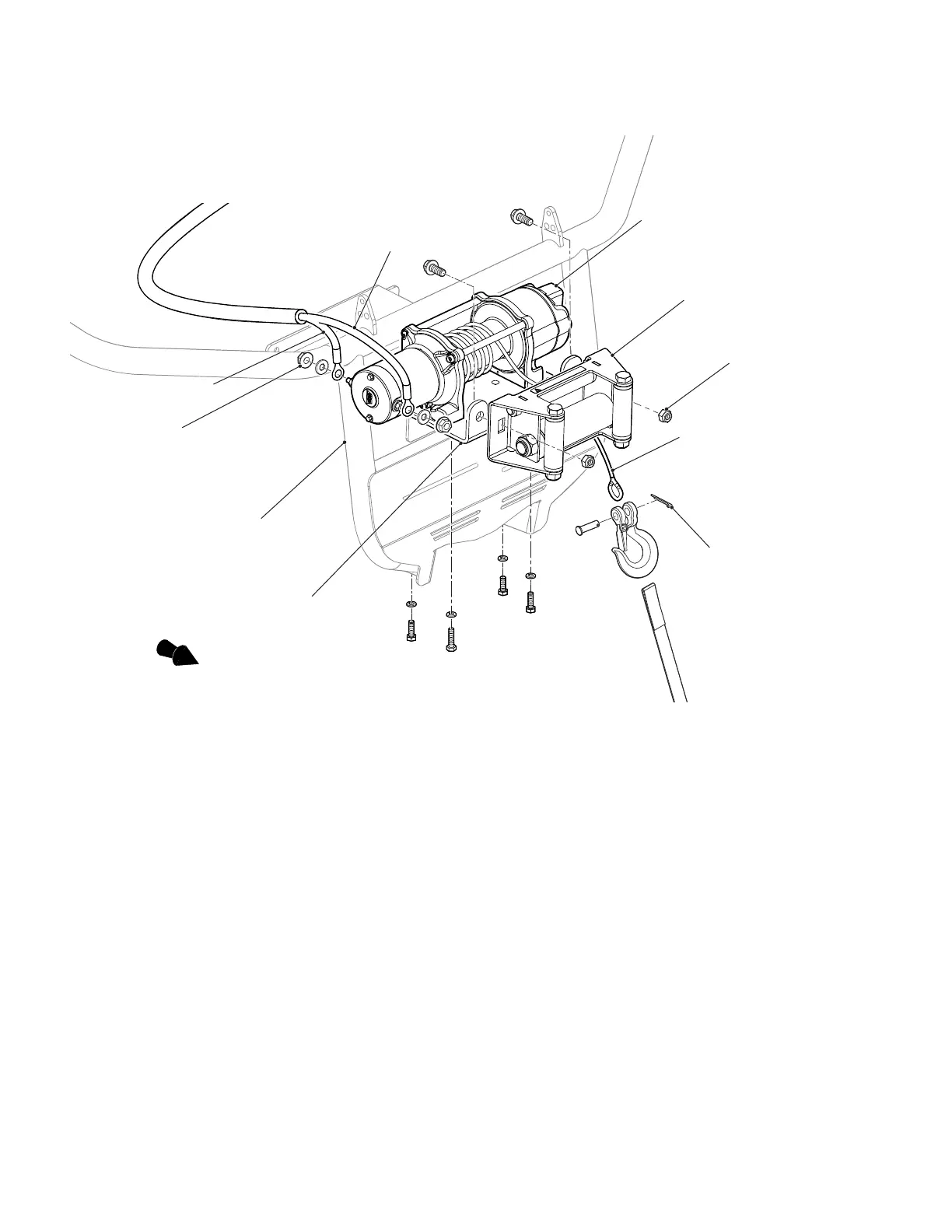

Fig. 14 Winch Assembly
Front of Vehicle
Yellow wire
Cable bundle continues
towards vehicle rear
Winch
Fairlead Plow Assembly
Torque to 45 - 55 Nm
(33.2 - 40.6 ft lbs)
Insert and bend cotter pin after
inserting hook retention pin
Pull winch wire rope through
opening in brush guard and
fairlead before installing hook kit.
Red wire
Torque to 3 - 4.5 Nm
(2.2 - 3.3 ft. lbs)
Brushguard and winch plate
shown for reference only
Plate Bracket
To Next Page
