“Mapped Redundant Throttle”
View “Inputs” from the input menu and the sub-menus.
“Throttle Command” shows the % of throttle requested at the accelerator
pedal. Values should range from 0 – 100%.
“Mapped Throttle” shows the mapped throttle request and changes from 0 –
100% with accelerator pedal travel.
“Throttle Pot” (pin 16) and “Pot 2 Raw” (pin 17) indicate the voltage values
from 0 – 6.25V. This changes with throttle activation.

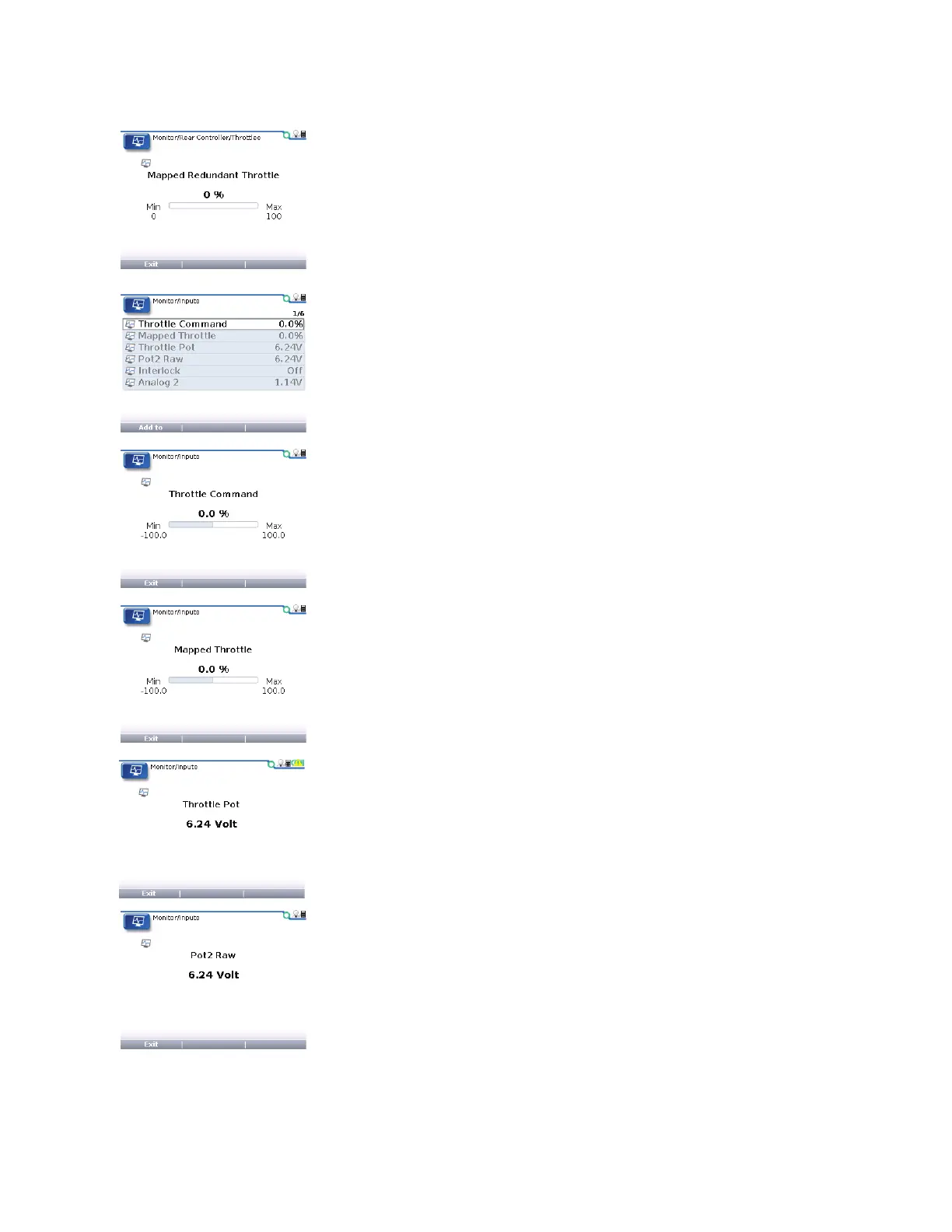

Fig. 8 Handheld Tool Function (Continued)
