chain or cable between the first-stage casing of the
compressor and the lifting beam.
Important: There should NOT be tension on this safety
cable; the cable is used only to prevent the
unit from rolling during the lift.
4. Position isolator pads or spring isolators beneath the
chiller feet (refer to “Unit Isolation,” p. 27 for
instructions).
Note: Follow instructions provided by the spring isolator
manufacturer, being careful to not damage
isolator adjustment screw.
5. Once the isolators are in place, lower the chiller—
working from end to end—in small increments to
maintain stability.
6. When lift is complete, detach the rigging shackles and
safety chain.

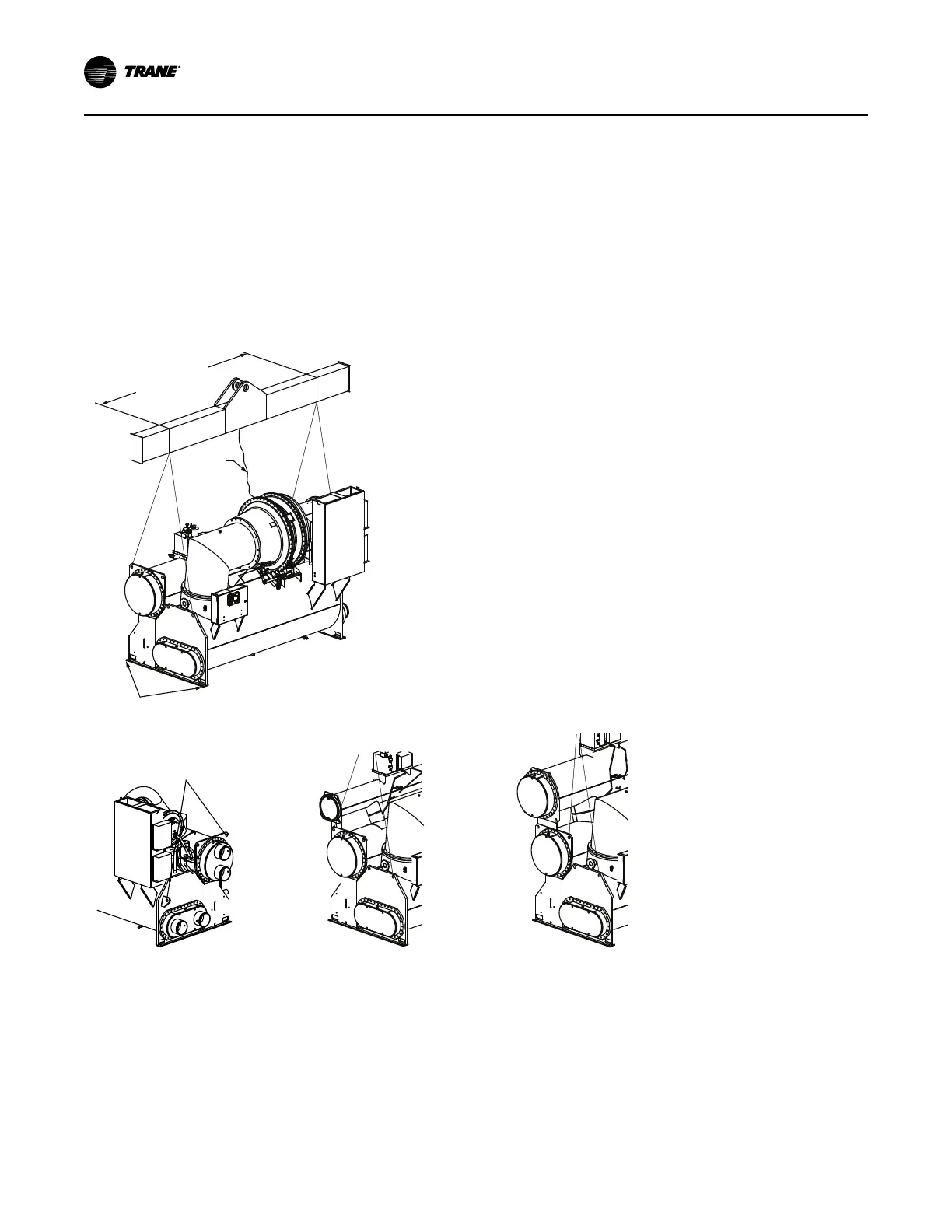

Figure 5. Typical rigging arrangements for CVHE, CVHF, and CVHG CenTraVac chillers
Safety
chain or
cable
Jack slots
16 ft
(4.8768 m)
minimum
effective
length
800 Short shells only-
use rigging flange
Auxiliary option Heat recovery option
Installation: Mechanical
