PoE Web Smart Switch Series

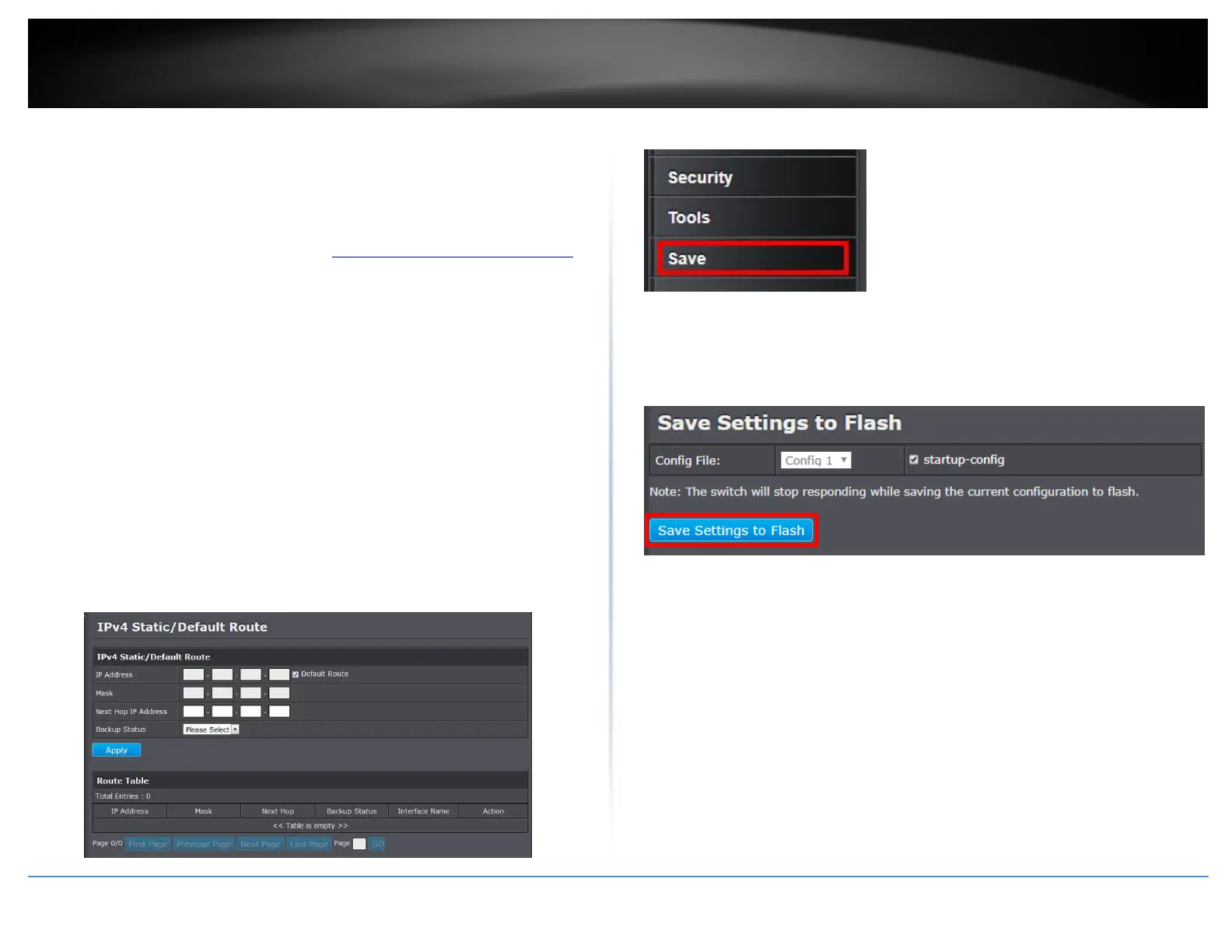

IPv4 Static/Default Route
System > L3 Feature > IPv4 Static/Default Route
This section allows you to set your switch’s IPv4 routing table default gateway IP
address, or specify a static route.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv4 Static/Default Route.
3. Review the settings. When you have completed making changes, click Apply to save
the settings, click Delete to delete the routing table entry.
Default Route: Check this box to apply this route as the default gateway and
enter the default gateway IP address in the Next Hop IP Address field. To specify a
static route, uncheck the box to specify the following:
o IP Address: Enter the IP address for this routing entry. (e.g.
192.168.200.200)
o Mask: Enter the subnet mask for this routing entry. (e.g.
255.255.255.0)
Next Hop IP Address: Enter the next hop for the routing entry. (e.g
192.168.20.200)
Backup Status: Specify if this routing entry is to be the Primary or Backup entry.
Note: If this assigning the default gateway IP address, select Primary.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
