Front View
• Status LED - This LED indicator is blinking green when your modem router is
ready and working successfully. If this LED indicator is solid green on or off,
your router is not receiving power or ready, or not working properly.
• ADSL WAN (Link/Activity) LED – This LED indicator is blinking green when the
ADSL status of the modem router is ready to establish connection to your ISP.
The LED indicator will turn solid green when the modem router has been
properly configured with the settings provided by your ISP and successful ADSL
connection has been made to your ISP. This LED indicator will be blink while
data is transmitted or received through the ADSL port of your modem router.
• WLAN (Link/Activity) LED – This LED indicator is solid green when the wireless
is “On” and functioning properly on your modem router. This LED indicator will
be blinking while data is transmitted or received by your wireless clients or
wireless network devices connected to your modem router. This LED indicator
will be off when the wireless functionality of your modem router is disabled.
• LAN 1-4 (Link/Activity) LEDs – These LED indicators are solid green when the
LAN ports are successfully connected to your wired network devices (which are
turned on). These LED indicators will blink green while data is transmitted or
received through your modem router’s LAN ports.
• WPS/Reset/WLAN Button – This button has multiple functions depending on
the amount of time it is pushed and released.
o WPS (Wi-Fi Protected Setup) – Push and hold this button for 3
seconds and release to activate WPS. Within 2 minutes, push and hold
the WPS button on your wireless client device. WLAN LED indicator
will blink rapidly to indicate that WPS has been activated.
o Reset – Push and hold this button for 15 seconds and release to reset
your router to its factory defaults. Status LED indicator will blink
rapidly after released to indicate the reset process has started.
o WLAN (On/Off) – Push and hold this button for 10 seconds and release
to disable or enable the wireless functionality of your modem router.
The Status LED will start to blink rapidly and the WLAN LED indicator
will turn off (disabled) or turn on (enabled) to indicate the status of
the wireless functionality of your modem router.

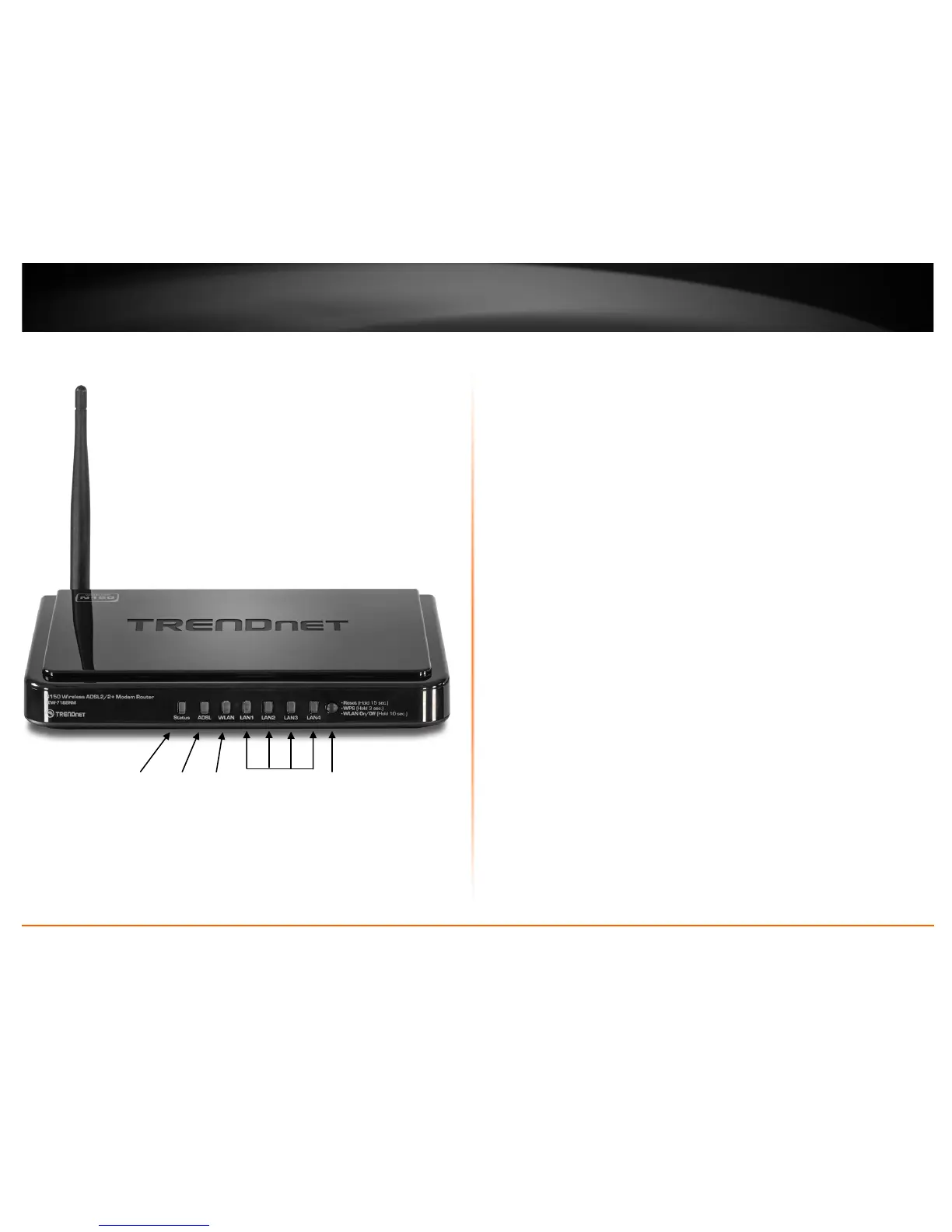

WPS Button/
Reset Button/
WLAN (On/Off)
WLAN
LED
Status
LED
ADSL
LED
LAN 1-4
LEDs

TRENDnet TEW-718BRM Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DSL specification	G.992.1, G.992.2, G.992.3, G.992.5
DHCP client	-
Routing protocols	IGRP, IP, RIP-1, RIP-2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2-PSK
Antennas quantity	1
Certification	CE, FCC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Product color	Black
LED indicators	DSL, LAN, WLAN

Weight and Dimensions

Depth	189 mm
Width	118 mm
Height	33 mm
Weight	221 g
