TRENDnet TEW-718BRM User Manual

© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-718BRM
4

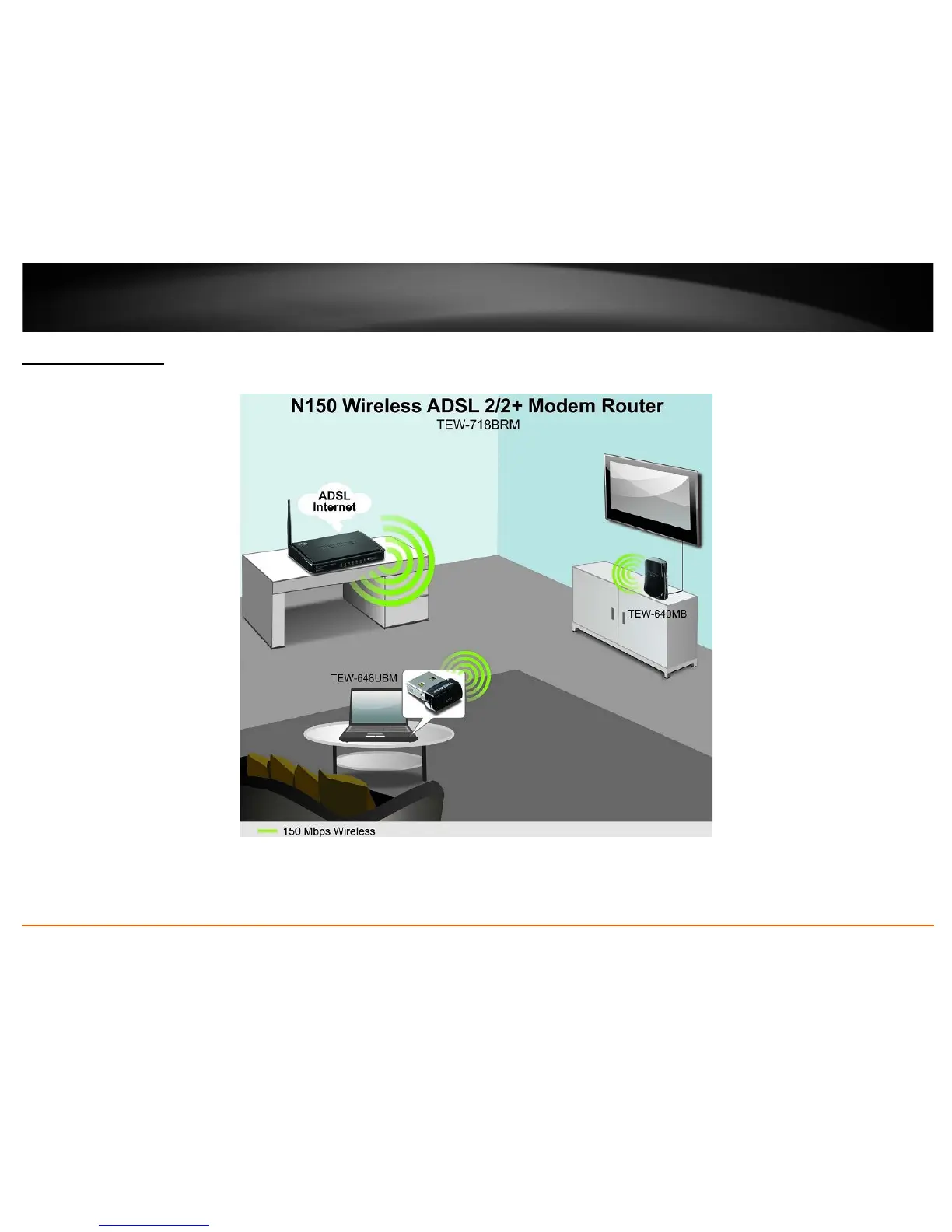

Application Diagram
The router is installed near the wall telephone jack/DSL line (DSL service supplied by your ISP “Internet Service Provider”) which connects to the Internet. Wireless signals from the router
are broadcasted to wireless clients such as laptops (with wireless capability) thereby providing Internet access.

TRENDnet TEW-718BRM Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DSL specification	G.992.1, G.992.2, G.992.3, G.992.5
DHCP client	-
Routing protocols	IGRP, IP, RIP-1, RIP-2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2-PSK
Antennas quantity	1
Certification	CE, FCC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Product color	Black
LED indicators	DSL, LAN, WLAN

Weight and Dimensions

Depth	189 mm
Width	118 mm
Height	33 mm
Weight	221 g
