Trimble R7/R8 GPS Receiver User Guide 17
Setting up the Receiver 3
Trimble R7 Operation
32.4 Bottom panel
Figure 3.5 shows the bottom panel of the Trimble R7. This panel
contains the USB port, the CompactFlash port, and the compartments
for the two internal batteries.

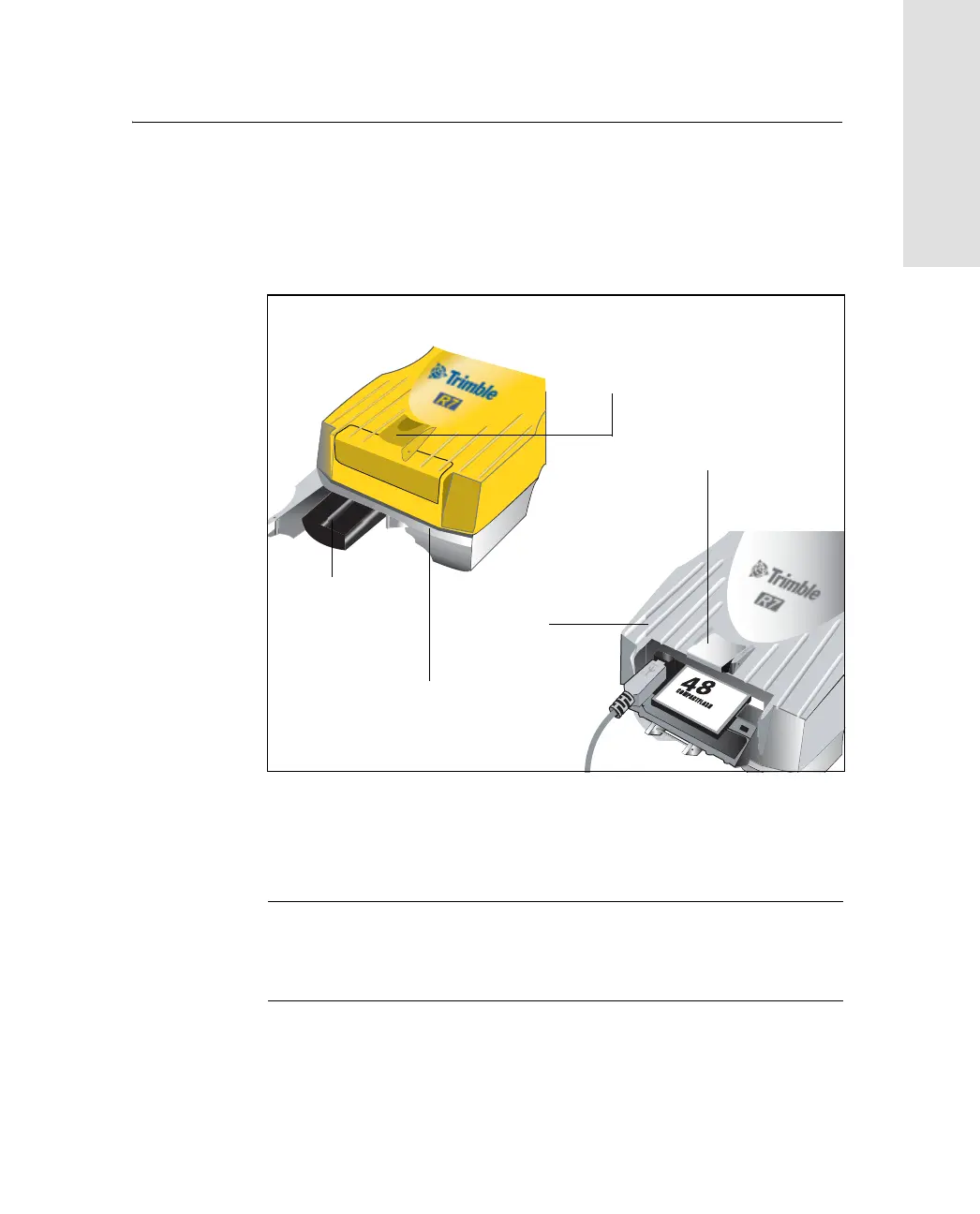

Figure 3.5 Bottom panel
The CompactFlash/USB door conceals the CompactFlash port and
USB port. To open the door, push the catch on the front panel down.
C
WARNING – When no USB cable is connected, or when using the
receiver in a harsh environment, keep this door closed to keep moisture,
dust, and dirt out of the ports. The temperature rating of the receiver
applies only when all doors on the receiver are closed.
CompactFlash port
USB port
Internal battery
compartment
Internal battery
CompactFlash/
USB door
