Trimble R7 User Manual

16 Software Utilities
148 Trimble R7/R8 GPS Receiver User Guide
Trimble R8 Operation
160.1 Configuring the internal transceiver

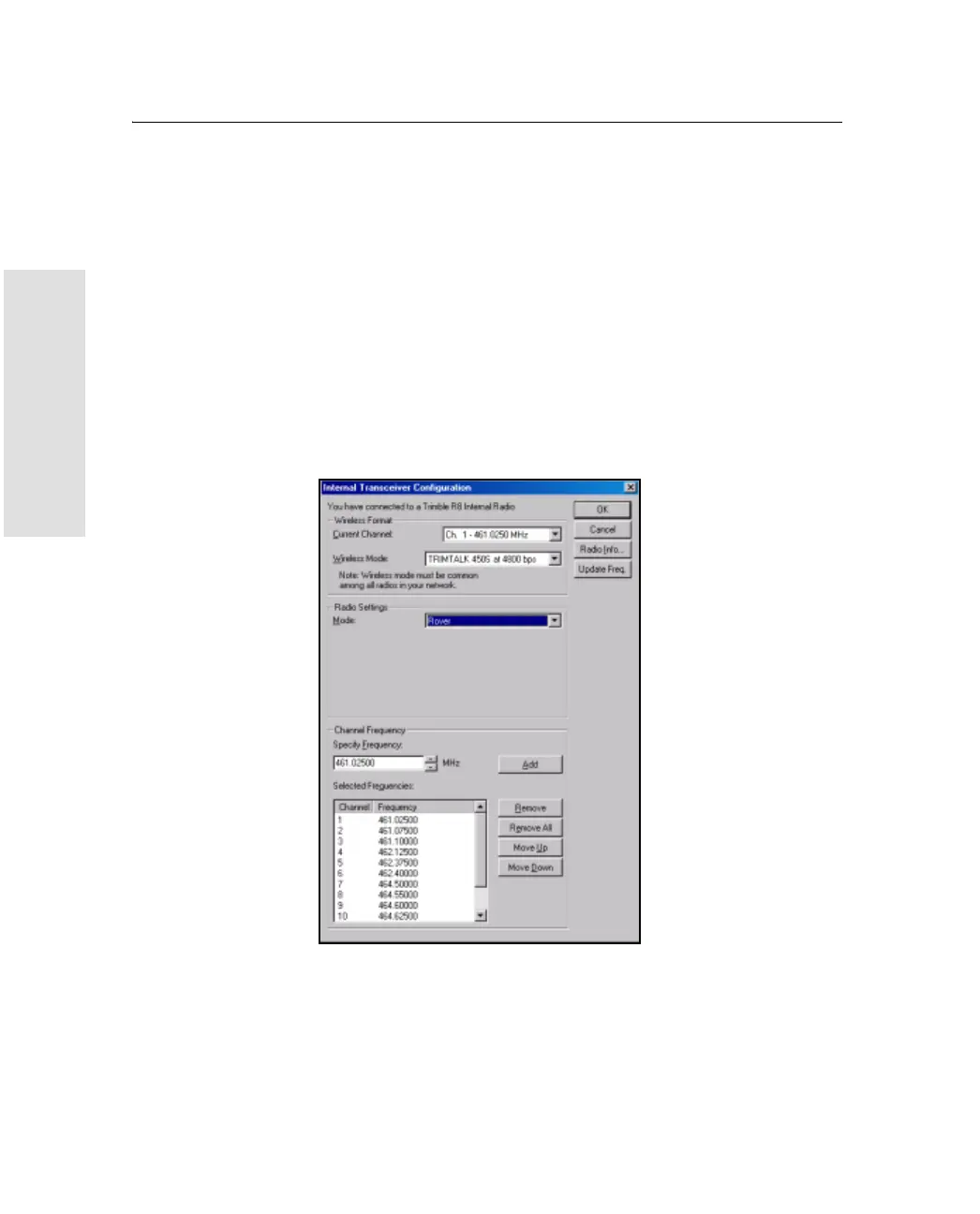

Use the WinFlash Internal Transceiver Configuration dialog to
configure the Trimble R8 internal transceiver.
B
Tip – To view a list of all radio information, including the current
configuration, click
Radio Info.
1. Select the Current Channel, which determines the radio
operating frequency.
2. Select the Wireless Mode, which determines the over-the-air
communications parameters. The following example shows a
rover setup:
To reduce battery consumption on your base receiver, set the
wireless mode as high as possible. For example, 9600 bps
consumes half the power of 4800 bps for the same data format
and time of operation.
