Trimble R8 Operation
4. If using the TSC1™, connect the data-i/o cable from Port 1 of
the receiver to a port on the TSC1. If using the Trimble ACU, or
TSCe with Bluecap module, no cabling is required, as shown in
Figure 13.3.

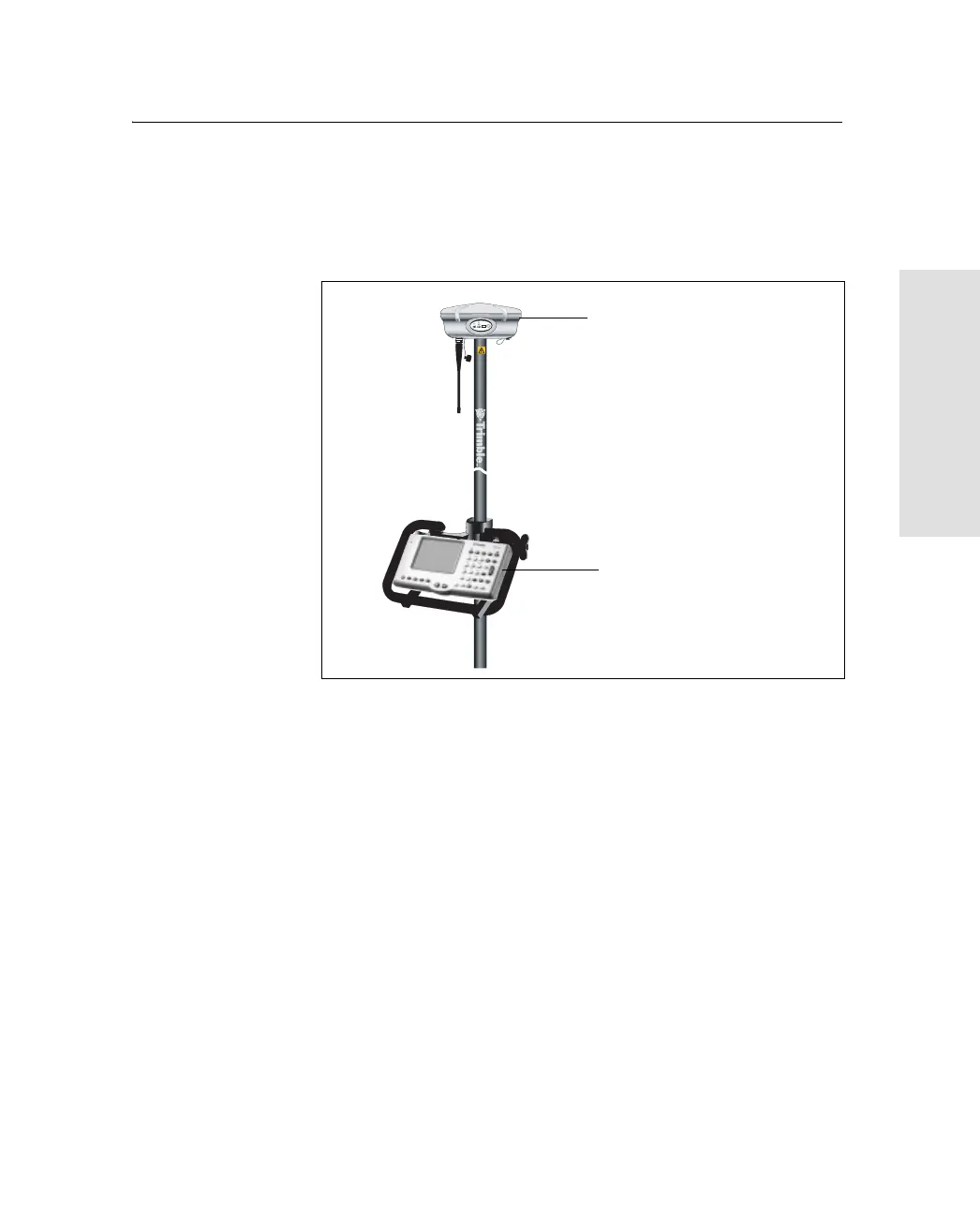

Figure 13.3 Trimble R8 receiver pole-mounted setup
13.1 Other System Components
This section describes optional components that you can use with the
Trimble R8 receiver.
131.1 Radios
Radios are the most common data link for Real-Time Kinematic
(RTK) surveying. The Trimble R8 is available with an optional
internal radio in the 450 or 900 MHz UHF band, or with an internal
GSM module. You can also connect an external radio to either port,
whether the internal radio is installed or not.
F
F
Trimble R8 GPS Receiver
ACU controller
